Corbin Russwin DC26900 Series DC26930 Electromechanical Surface Door Closers Track Mounting M80 Option Template

Original Source Document Full PDF Version

MOUNTING INFORMATION Sex nuts or through bolts are required for wood and plastic covered composite doors, and any type of door without reinforcements and recommended for wood core and netal clad (Kalamein) type doors.

RH SHOWN LH OPPOSITE

TEMPLATE CRUSS REFERENCE DESCRIPTION TEMPLATE 0C26930 T30537

CAUTION : CLOSER TO BE INSTALLED IN A TRUE HORIZONTAL POSITION TO ENSURE PROPER CLOSER PERFORMANCE.

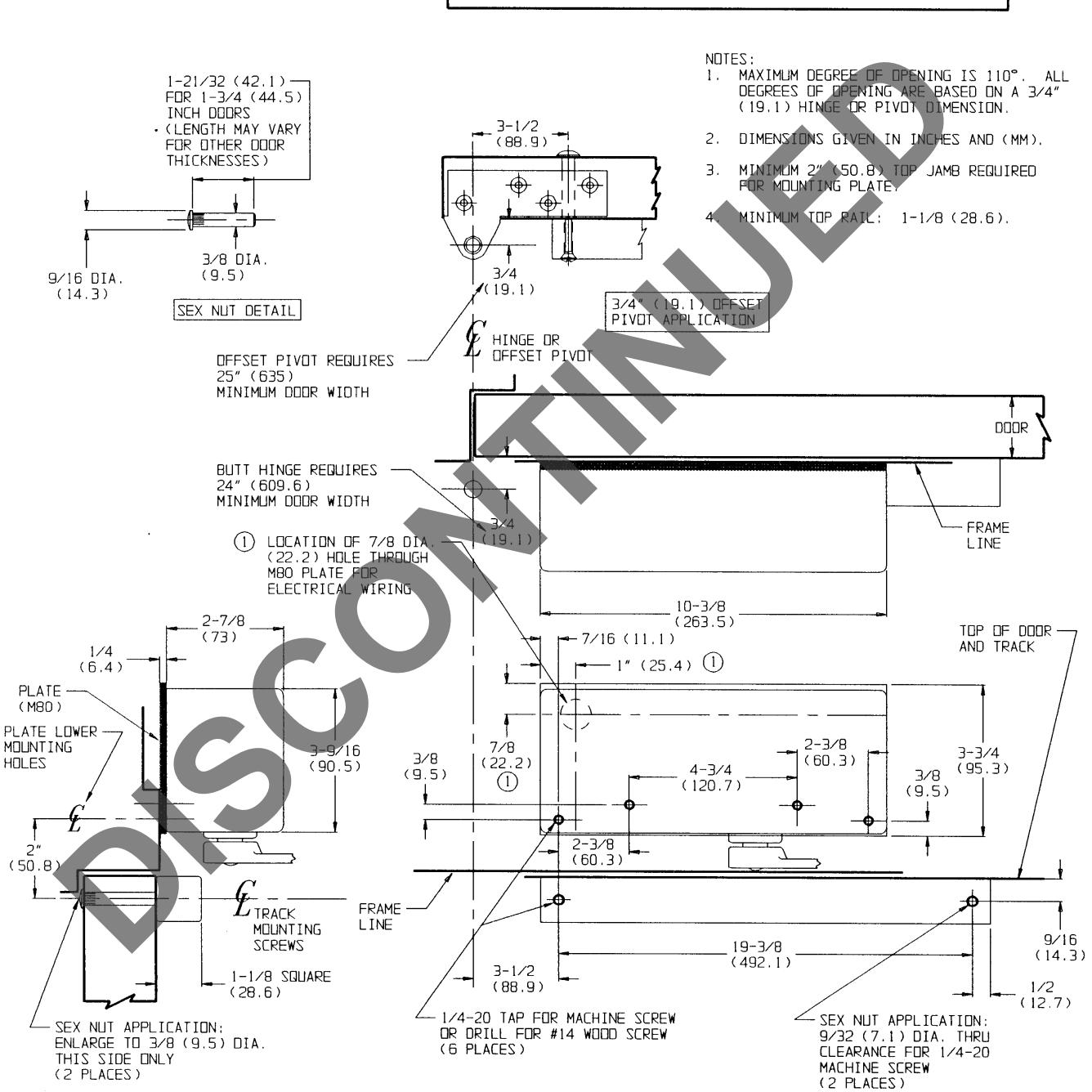

Corbin Russwin DC26900 Series DC26930 Electromechanical Surface Door Closers Track Mounting M80 Option Template_T30524 diagra

RESPONSIBILITY

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hordware shown. All architectural builders hordware nust be installed on properly reinforced doors and frames, regardless of the type, naterial, or nethod of construction.

DC26930 Series By M80

ELECTROMECHANICAL SURFACE DOOR CLOSER TRACK MOUNTING

Corbin Russwin DC26900 Series DC26930 Electromechanical Surface Door Closers Track Mounting M80 Option Template_T30524 image

SUPERSEDES T30524 DR. DLD PROSE

4/27/94 NUMBER T30524-
