CL Series Cylindrical Locks: Security That Fits
Versatile Locking Solutions for Any Environment
The security needs of your facility are complex and varied. Each opening has its own requirements, and choosing the right lock based on those demands is critical and sometimes overwhelming.
That's why Corbin Russwin created the versatile CL Series cylindrical locks. Designed with institutional and commercial environments in mind, these locks offer durability, strength, and reliability regardless of application.
CL3100 Vandal-Resistant Grade 1 Lock

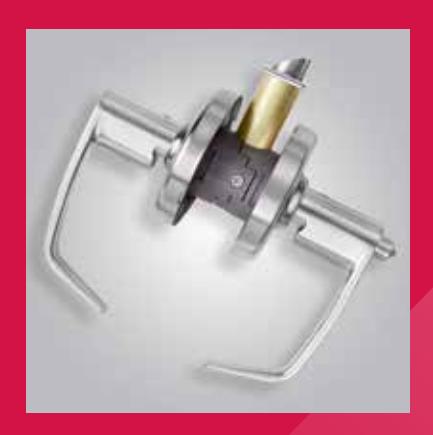

Designed to withstand abusive environments, the CL3100 features our unique torque-resistant T-Zone construction and provides strength and durability far exceeding the A156.2 Series 4000 Grade 1 standards.
CL3300 Grade 1 Cylindrical Lock
Your "go-to" Grade 1 lockset, the CL3300 offers many functions and is easy to install and retrofit.
CL3800 Grade 2 Cylindrical Lock
This economical, Grade 2 lockset provides an outstanding combination of value and performance without compromising functionality or durability.

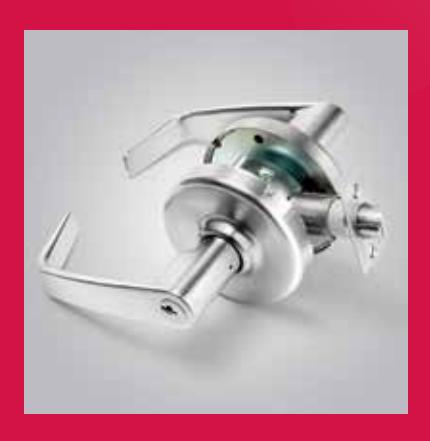

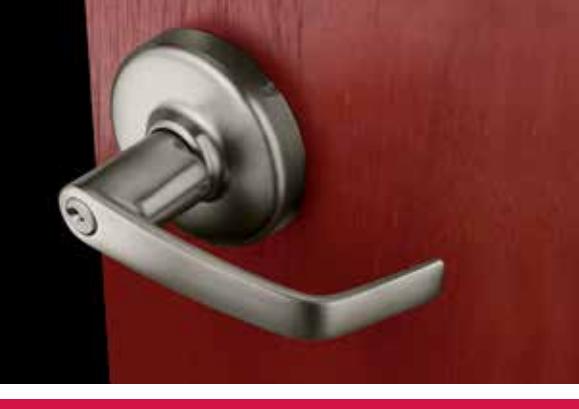

CL3100 Series
Vandal Resistant Grade 1 Lock
BENEFITS
- Durable and Reliable: Independently verified cycle testing proves the CL3100 series will last the lifetime of the facility
- Flexible: Integrates with numerous key systems and utilizes one lockbody for multiple functions, simplifying facility maintenance
- Lower Cost of Ownership: Fewer inventoried parts combined with a high number of opening cycles results in less time and frequency for maintenance and reduced overall expenses
- Safe and Secure: Torque resistant T-Zone construction provides ability to withstand tough environments to keep occupants and property safe and secure
- Sustainable: Contributes to your sustainability efforts - fewer lock replacements due to long life and high post-consumer recycled content
- Healthy Environment: Microshield® antimicrobial coating available; supplements your cleaning protocol for a healthier environment
FEATURES
- 18 functions available, including Classroom Security; most requiring only two parts to change
- Simple cylinder removal provides easy change outs
- Integrates into most existing facility's key systems, including Best® SFIC and Schlage® LFIC
- Retrofits most standard 161 cylindrical lock door preps and is non-handed
- Made from 68% post-consumer recycled content as per LEED MR credit 4
- 10-year limited warranty
- Available in 14 architectural finishes and Microshield® antimicrobial coating
TYPICAL APPLICATIONS
- High traffic areas
- Offices
- Public buildings
- Hospitals
- Institutions
- Educational facilities
- Retail
DURABILITY AND CYCLE TESTING
- Withstands more than TWO TIMES ANSI/ BHMA A156.2 Grade 1 torque force on a locked lever
- T-Zone lock technology tested to 15 times the standard in ANSI/BHMA A156.2 Grade 1 cycle testing
- 15 MILLION cycles equals over 55 years of opening life in many facilities!

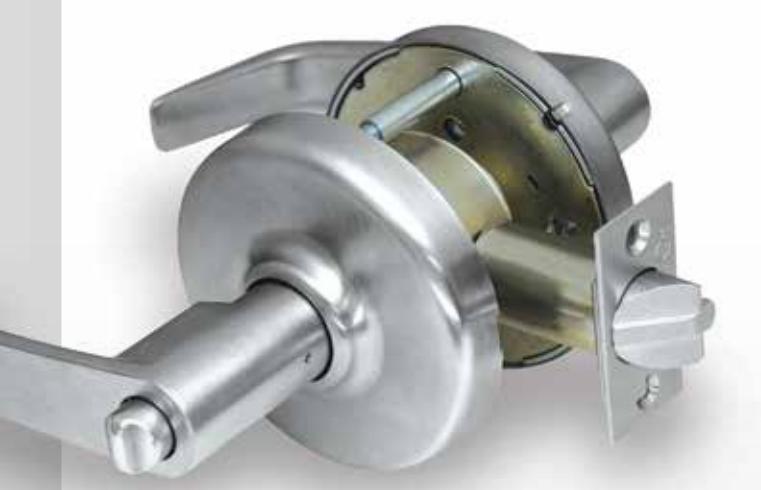

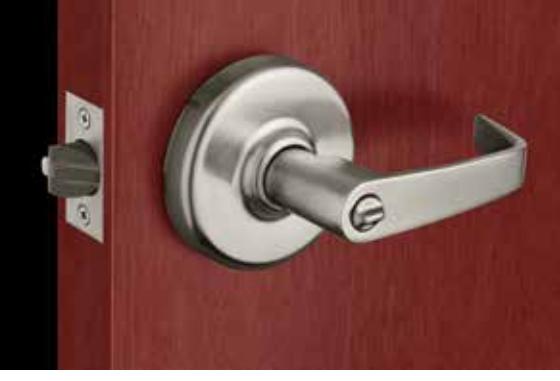

CL3300 Series
Grade 1 Cylindrical Lock
BENEFITS
- Safe and Secure: ANSI/BHMA Grade 1 lock manufactured with high quality materials; specialized functions allow for quick and secure lockdowns
- Flexible: 26 functions (2 electromechanical); 'go-to' cylindrical lock for almost any opening
- Ease of Installation and Retrofit: EZ-Install components significantly reduce install time and cover ANSI/BHMA Door Prep A156.115
- Compatible: Integrates into most existing facility's key systems, including Best® SFIC and Schlage® LFIC
FEATURES
- 26 functions available, including electromechanical
- Independent return springs to prevent lever sag
- Through-bolted cylindrical chassis prevents rotation and ensures proper alignment
- 7-year limited warranty
- Available in 14 architectural finishes and Microshield® antimicrobial coating
APPLICATIONS
- Corporate campuses
- Multi-family housing
- Restaurants
- Educational Facilities

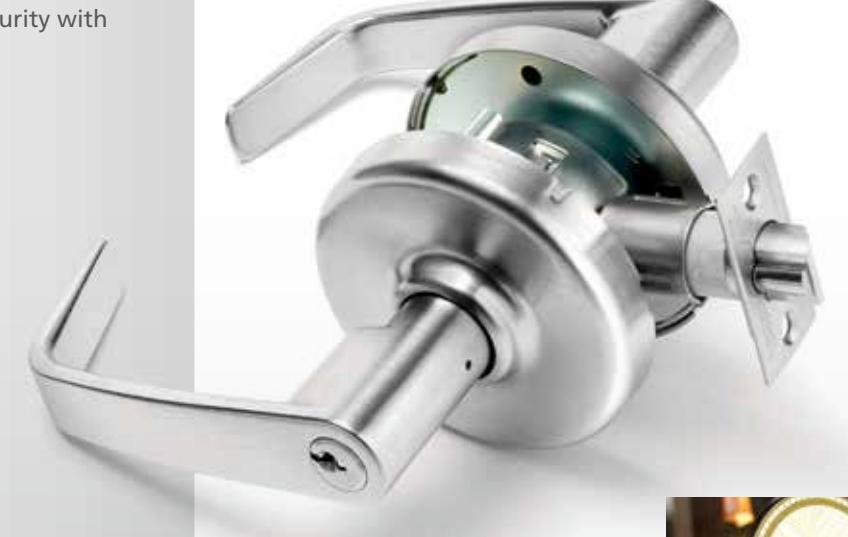

CL3800 Series
Grade 2 Cylindrical Lock
BENEFITS
- Reliable: Exceeds ANSI/BHMA A156.2 Grade 2 cycle requirements
- Flexible: 18 functions; standard-duty cylindrical lock for light commercial applications
- Compatible: Visually consistent with CL3100 and CL3300 Grade 1 locks to provide the right level of security with similar aesthetics
FEATURES
- 18 functions available
- Steel lock chassis, zinc dichromated for corrosion resistance
- Non-handed
- 5-year limited warranty
- Available in 14 hardware finishes and Microshield® antimicrobial coating
APPLICATIONS
- Interior offices
- Closets
- Multi-family housing
- Restaurants
- Retail complexes
Where to Use Corbin Russwin Locks
OFFICE / WAREHOUSE EXAMPLE
CL3100 Series
CL3300 Series
CL3800 Series
Exit Device

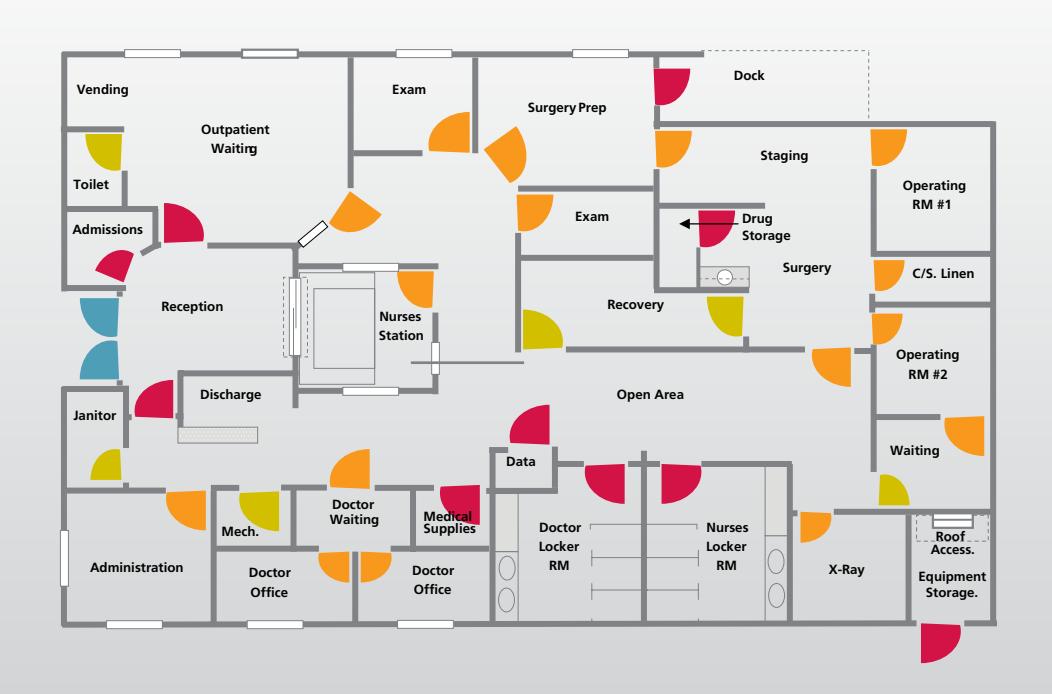

MEDICAL OFFICE BUILDING EXAMPLE
CL3100 Series
CL3300 Series
CL3800 Series
Exit Device
With the options available in CL3100, CL3300, and CL3800 Series locks, you can always find the right lock for each opening. And no matter which lock you choose, you can depend on their strength, lasting durability, and the flexibility. The floor plans below show how the combination of these Series' secure the diverse openings in a facility.
For additional information, contact your ASSA ABLOY Door Security Solutions sales consultant or visit www.corbinrusswin.com.
Corbin Russwin Architectural Hardware 225 Episcopal Road, Berlin, CT 06037 Phone 800-543-3658 Fax 800-447-6714 www.corbinrusswin.com
