Integrating Strength & Beauty

Corbin Russwin CLX3300 Series with BHSS Trim Sell Sheet_45666 image on page 1

Corbin Russwin CLX3300 Series with BHSS Trim Sell Sheet_45666 image on page 1

Corbin Russwin CLX3300 Series with BHSS Trim Sell Sheet_45666 image on page 1

Corbin Russwin CLX3300 Series with BHSS Trim Sell Sheet_45666 image on page 1

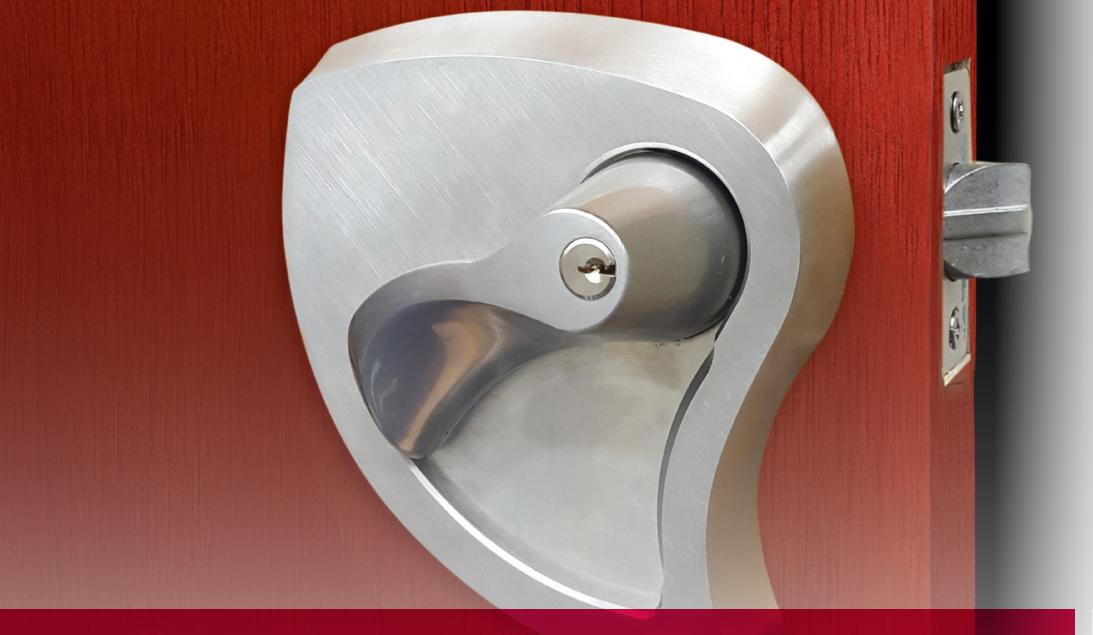

Corbin Russwin's BHSS trim for the CLX3300 Series cylindrical lock provides aesthetics, safety and reliability that complements healthcare facilities' mission to create more modern, peaceful environments for their patients. The integrated lever and escutcheon provides a streamlined look and feel that brings an elegant style to the most demanding environments and fits perfectly in behavioral health areas.

Corbin Russwin CLX3300 Series with BHSS Trim Sell Sheet_45666 image on page 1

Corbin Russwin CLX3300 Series with BHSS Trim Sell Sheet_45666 image on page 2

CLX3300 Series with BHSS Trim

APPLICATIONS

  • Behavioral Health Units
  • Patient Room Doors
  • De-escalation Rooms
  • Psychiatric Facilities

FEATURES

  • Recognized by New York State Office of Mental Health (NYS-OMH) for use in high risk areas*
  • Aesthetic design with integrated lever and escutcheon
  • Uses the ANSI/BHMA Grade 1 CLX3300 Series cylindrical lock
  • Available in passage, privacy, classroom, storeroom, entrance, dormitory or electrified functions
  • Stainless Steel finish (630) standard; Microshield® antimicrobial coating optional (630C)
  • Locked outside lever is available freewheeling or rigid
  • Compatible with Corbin Russwin conventional cylinders as well as large and small format interchangeable core
  • Supplied standard with Torx® security screws

BENEFITS

  • Strong and durable: lock exceeds ANSI/BHMA Grade 1 requirements to withstand abusive environments
  • Versatile: can be used on many opening types including high, medium and low risk
  • Cost effective: bored lock configurations require a lower investment than comparable mortise lock variations
  • Beautiful: tapered surfaces complement modern design environments
  • Easy to use: intuitive operation of lever provides easy access for staff and patients
  • Minimizes risk: helps contribute to patient safety with integrated trim design

Corbin Russwin CLX3300 Series with BHSS Trim Sell Sheet_45666 image on page 2

Corbin Russwin CLX3300 Series with BHSS Trim Sell Sheet_45666 image on page 2

Corbin Russwin CLX3300 Series with BHSS Trim Sell Sheet_45666 image on page 2

NOTE: Although this product is better designed for behavioral health applications than traditional trim, it does not eliminate the risk that an object can be affixed to, or around it. A lockset function that requires a rigid lever when locked or a push/turnbutton may introduce a ligature opportunity

*Refer to Patient Safety Standards Guidelines for the latest approved products (https://omh.ny.gov/omhweb/patient_safety_standards/)

Corbin Russwin Architectural Hardware 225 Episcopal Road, Berlin, CT 06037 Phone 800-543-3658 Fax 800-447-6714 www.corbinrusswin.com
