Strong. Smart. Reliable.

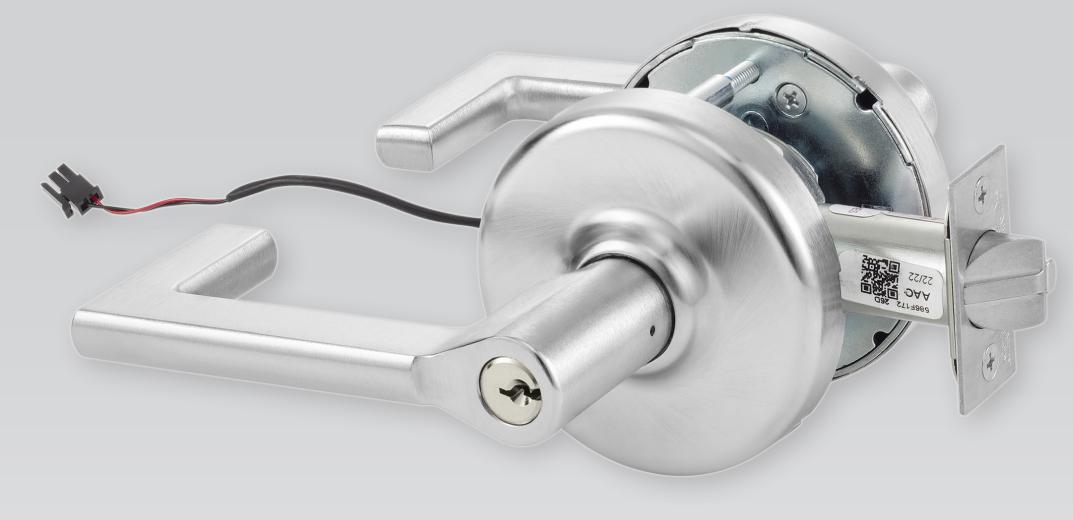

EcoFlex® technology, now available with Corbin Russwin CLX3300 Series cylindrical locks, represents a significant advancement in sustainability for electrified door openings. With 92% energy savings, the electrified CLX3300 Series cylindrical lock is ideal for electromechanical applications, whether it's used with a Wave to Open, Request to Exit, or Door Position Switches.
EcoFlex® for Cylindrical Locks Technology Meets Sustainability
TECHNICAL SPECIFICATIONS:
12VDC or 24VDC applications
- 500mA lock body peak current draw
-
10mA lock body holding current draw*
- *Approximately 5% of an equivalent solenoid
AVAILABLE IN
• Electrified cylindrical locks
| Features | Benefits |
|---|---|
| ANSI/BHMA Grade 1 certified cylindrical lock |
• Strength and durability; assurance of high quality
hardware |
|
Reduced energy consumption and product
sustainability measures |
• Up to 92% energy savings, as certified by Green
Circle • Lower operating costs • Assists with load reduction in optimizing energy performance credit in LEED • Reduces number of power supplies required for hard-wired locks |
| Field configurable to fail-safe or fail-secure |
• Improves battery life for offline locks
• A single lock body can be used for a variety of applications throughout a facility – Simplifies ordering – Reduces stocking requirements with one flexible lock – Offers greater flexibility to adapt to changing requirements |
|
Ability to operate from 12 volts to 24 volts
Innovative actuator design |
• Greater flexibility in system design
• Superior reliability – Higher performance and reduced maintenance – Ability to have longer cable runs without negatively impacting lock function – Reduces risk of voltage drops and eliminates inductive kickback – Lower total cost of ownership |
|
Available with a wide range of finishes and
decorative levers |
• Blends into any environment seamlessly |
