CL3800 Series
Cylindrical Lockset Parts Manual
| Mechanical Drawing3 | |
|---|---|
| Lockbodies & Buttons4 | |
| Spring Housing Assemblies5 | |
| Roses/Liners and Misc6 | |
| Latches7 | |
| Strikes8 | |
| Cylinders9-10 | |
| Levers11 | |
Templating and Installation
For door templates and installation instructions, please refer to our website at www.corbinrusswin.com.
How to Order Parts
- 1. In order to simplify the ordering procedure and maintain regulatory compliance, parts are only available as listed
- 2. To order parts, provide the appropriate quantity, part number, finish, hand (when required) and description as directed and illustrated below.
For example, use the following configuration to order:
- A) ten lockbodies in satin chrome
- B) one outside spring housing assembly
| Quantity | Part Number | Finish | Hand | Description | |
|---|---|---|---|---|---|
| A | 10 | 797F618 | 626 | — | Passage Function Lockbody |
| B | 1 | 796F378 | N/A | — | Outside Spring Housing Assembly |
For assistance, contact your authorized Corbin Russwin distributor, sales agency or visit our website at www.corbinrusswin.com.
Finishes
| ANSI/BHMA Code | Finish Description |
|---|---|
| 605 | Bright Brass, Clear Coated |
| 606 | Satin Brass, Clear Coated |
| 611 | Bright Bronze, Clear Coated |
| 612 | Satin Bronze, Clear Coated |
| 613 | Dark Oxidized Satin Bronze, Oil Rubbed |
| 613E | Dark Oxidized Satin Bronze, Equivalent |
| 613L | Dark Oxidized Satin Bronze, Clear Coated |
| 618 | Bright Nickel, Clear Coated |
| 619 | Satin Nickel Plated, Clear Coated |
| 619C | Satin Nickel Plated with MicroShield® |
| 625 | Bright Chrome Plated |
| 626 | Satin Chrome Plated |
| 626C | Satin Chrome Plated with MicroShield® |
| 722 | Black Oxidized Satin Bronze, Oil Rubbed |
| BSP | Black Suede Powder Coat |
| WSP | White Suede Powder Coat |
| Lock Finish | Cylinder/Core* |
|---|---|
| 605, 606, 611, 612, 613, 613E, 613L, 722 | 606 |
| 618, 619, 625, 626, WSP | 626 |
| BSP | BSP |
* Finish when cylinder provided with lock
The warranty on Corbin Russwin products becomes void if the product is modified in any way, regardless of whether the modifications causes or contributes to any alleged defect. If a Corbin Russwin product is modified it may no longer meet industry certification and quality control standards applicable to the original product and is no longer a genuine Corbin Russwin product.
Copyright © 2021, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

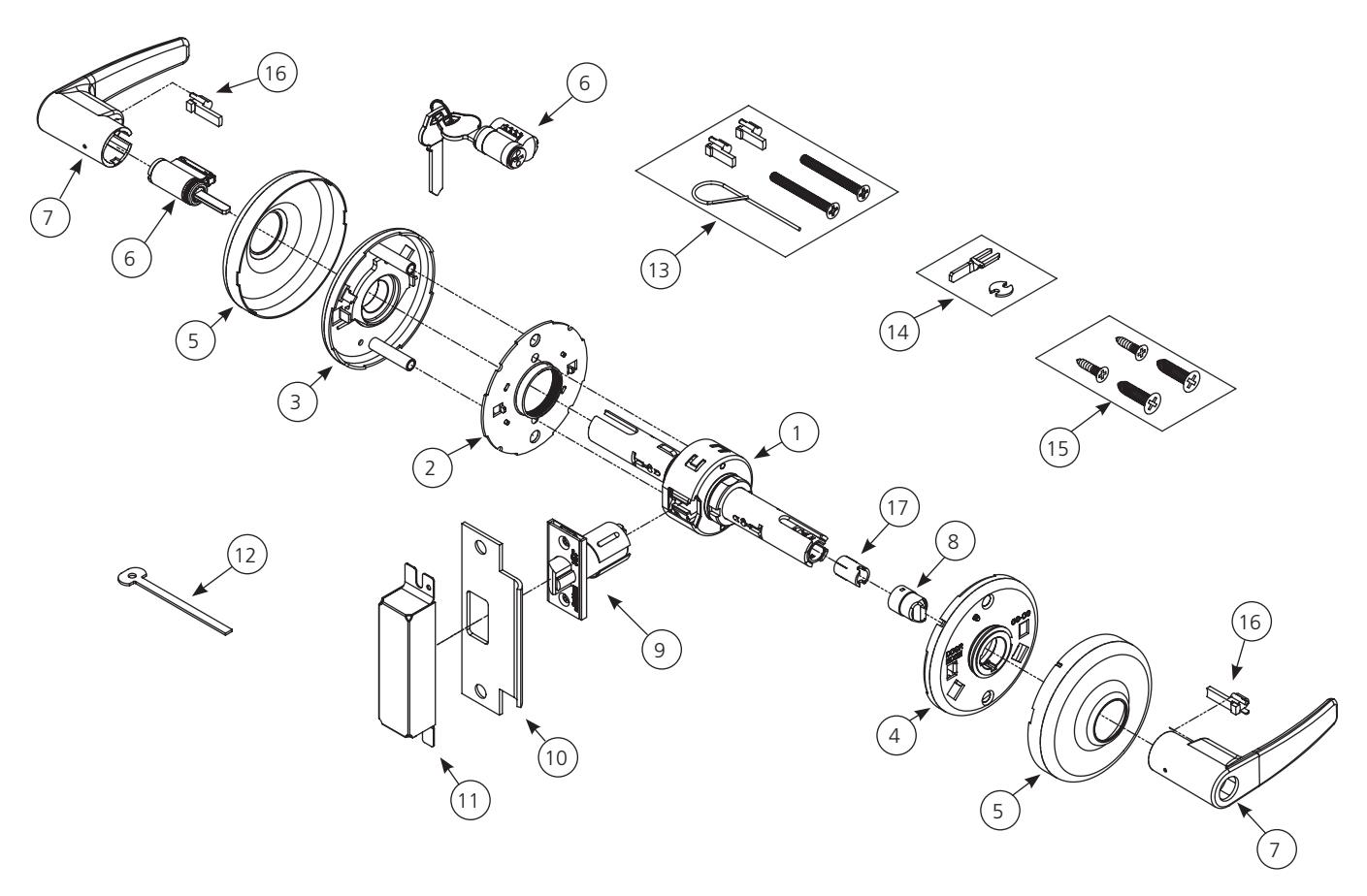

| Item | Description | Page # |
|---|---|---|
| 1 | Lockbody | 4 |
| 2 | Rose Liner | 6 |
| 3 | Spring Housing Assembly, Outside | 5 |
| 4 | Spring Housing Assembly, Inside | 5 |
| 5 | Rose | 6 |
| 6 | Cylinder/Core | 9-10 |
| 7 | Lever | 11 |
| 8 | Button | 4 |
| 9 | Latch | 7 |
| 10 | Strike | 8 |
| 11 | Strike Box | 8 |
| 12 | Emergency Release Tool (CL3820 only) | 6 |
| 13 | Thru Bolt and Retainer Mounting Pack | 6 |
| 14 | Tailpiece Packet (optional cylinders only) | 9-10 |
| 15 | Latch/Strike Screw Pack | 6 |
| 16 | Lever Insert | 6 |
| 17 | Button Support Insert | 4 |
The warranty on Corbin Russwin products becomes void if the product is modified in any way, regardless of whether the modifications causes or contributes to any alleged defect. If a Corbin Russwin product is modified it may no longer meet industry certification and quality control standards applicable to the original product and is no longer a genuine Corbin Russwin product.
Copyright © 2021, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.
Half Trim Lockbody (e.g. CL3880)

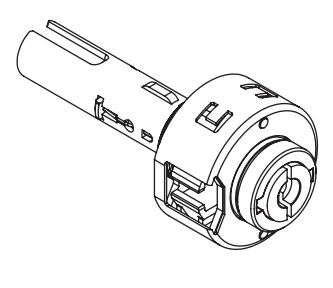

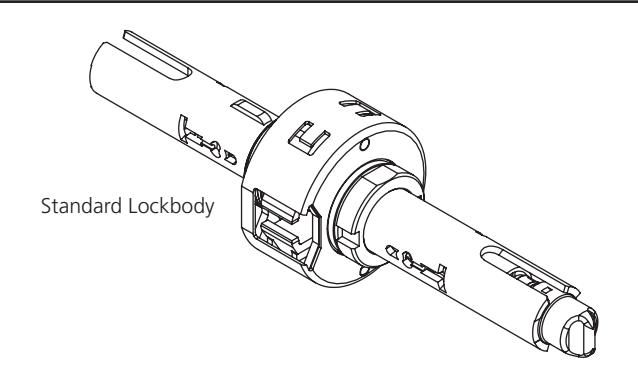

Lockbody - Lever Release™ Design
| Part # | LFIC Part # | Function | Description |
|---|---|---|---|
| 797F618 | N/A | CL3810 | Passage or Closet |
| 797F628 | N/A | CL3820 | Privacy, Bedroom or Bathroom |
| 797F668 | 797F678 | CL3851 | Entry or Office |
| 797F688 | 797F698 | CL3855 | Classroom |
| 797F668 | 797F678 | CL3857 | Storeroom or Closet |
| 797F628 | 797F638 | CL3861 | Entry or Office |
| 797F658 | N/A | CL3880 | Passage x Blank |
| N/A | N/A | CL3850 | Half Dummy |
| N/A | N/A | CL3870 | Full Dummy |
Buttons
| Part # | Function/Description |
|---|---|
| 585F76 Fin* | Turnbutton not including Button Support Insert (CL3851) |
| 585F77 Fin* | Pushbutton not including Button Support Insert (CL3820, CL3861) |
| 716F929 | Button Support Insert (must be used when replacing buttons) |
Note: Lockbodies available as complete units only. Parts internal to the lockbody are not available separately.
* Specify Finish
Part No. 796F398 Spring Housing Assembly, Inside (1-3/8" - 1-7/8" Door) All functions except CL3850, CL3870 and CL3880
Part No. 797F808 Spring Housing Assembly, Inside (over 2" - 2-1/4" doors) All functions
Part No. 686F868 Dummy Housing Assembly, Inside CL3870
Part No. 796F408 Communicating Spring Housing Assembly, Inside CL3880
Part No. 796F378 Spring Housing Assembly, Outside All functions except CL3850, CL3870 and CL3880
Part No. 686F858 Dummy Housing Assembly, Outside CL3870, and CL3850
Outside Spring Housing Assemblies
| Part # | Description |
|---|---|
| Inside | |
| 796F378 | All Functions except CL3880, CL3850, CL3870 |
Inside Spring Housing Assemblies
| Part # | Description |
|---|---|
| Inside | |
| 796F398 | All Functions 1-3/8" - 1-7/8" Door except CL3880, CL3850, CL3870 |
| 797F808 | All Functions 2" - 2-1/4" Door |
| 796F408 | CL3880 |
Dummy Spring Housing Assemblies
| Part # | Description | |
|---|---|---|
| Inside | ||
| 686F858 | Outside CL3850, CL3870 | |
| 686F868 | Inside CL3870 | |
The warranty on Corbin Russwin products becomes void if the product is modified in any way, regardless of whether the modifications causes or contributes to any alleged defect. If a Corbin Russwin product is modified it may no longer meet industry certification and quality control standards applicable to the original product and is no longer a genuine Corbin Russwin product.
Copyright © 2021, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.
Roses/Liners
| Part No. | Description |
|---|---|

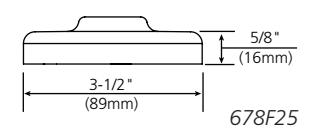

| 678F25 Fin* | Rose |
| 598F59 Fin* | Blank Rose |
| 678F248 | Rose Liner Outside 1-3/8" - 1-7/8" |
| 678F498 | Rose Liner Outside Over 2" |
| 682F788 | Rose Liner Assembly Outside CL3880 |
Miscellaneous
| Part No. | Description |
|---|---|
| 679F818 | Emergency Release Tool (CL3820) |
| 598F809 | Lever Insert 1-3/8" - 1-7/8" Doors |
| 684F539 | Lever Insert Over 2" up to 2-1/4" Doors |
598F809
Mounting Screw packs
| Part No. | Description |
|---|---|

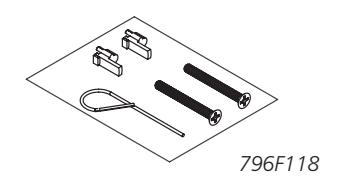

| 796F118 | 1-3/8" - 1-7/8" Doors |
| 797F818 | Over 2" up to 2-1/4" Doors |
| 797F828 | CL3880, 1-3/8" - 1-7/8" Doors |
| 797F838 | CL3880, Over 2" Doors |
| 684F44 Fin* | CL3850 Half Dummy Trim - Phillips Head |
| 684F45 Fin* | CL3850 Half Dummy Trim - Spanner Head |
| 684F46 Fin* | CL3850 Half Dummy Trim - Torx Head |
| 684F52 Fin* | CL3870 Full Dummy Trim |
Latch and Strike Screw Packs
| Part No. | Description |
|---|---|

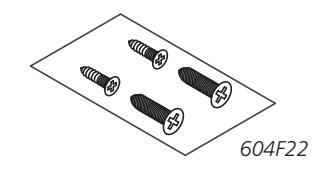

| 604F22 Fin* | Latch & ANSI Strike (4-7/8") - Phillips Head |
| 604F23 Fin* | Latch & ANSI Strike (4-7/8") - Spanner Head |
| 604F24 Fin* | Latch & ANSI Strike (4-7/8") - Torx Head |
| 604F26 Fin* | Latch & T-Strike (2-3/4") - Phillips Head |
| 604F27 Fin* | Latch & T-Strike (2-3/4") - Spanner Head |
| 604F28 Fin* | Latch & T-Strike (2-3/4") - Torx Head |
* Specify Finish
The warranty on Corbin Russwin products becomes void if the product is modified in any way, regardless of whether the modifications causes or contributes to any alleged defect. If a Corbin Russwin product is modified it may no longer meet industry certification and quality control standards applicable to the original product and is no longer a genuine Corbin Russwin product.
Copyright © 2021, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

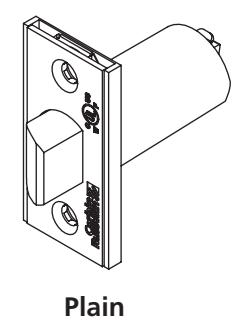

Plain Latch - CL3810
| Part No. | Front | Front Width | Backset |
|---|---|---|---|
| 599F91 Fin* | Square Corner | 1" (25mm) | 2-3/8" (60mm) |
| 599F94 Fin* | Rounded Corner | 1" (25mm) | 2-3/8" (60mm) |
| 599F97 Fin* | Square Corner | 1-1/8" (29mm) | 2-3/8" (60mm) |
| 600F00 Fin* | Rounded Corner | 1-1/8" (29mm) | 2-3/8" (60mm) |
| 600F03 Fin* | Square Corner | 1" (25mm) | 2-3/4" (70mm) |
| 600F06 Fin* | Rounded Corner | 1" (25mm) | 2-3/4" (70mm) |
| 600F09 Fin* | Square Corner | 1-1/8" (29mm) | 2-3/4" (70mm) |
| 600F12 Fin* | Rounded Corner | 1-1/8" (29mm) | 2-3/4" (70mm) |
| 600F62 Fin* | Square Corner | 1-1/8" (29mm) | 3-3/4" (95mm) |
| 600F65 Fin* | Rounded Corner | 1-1/8" (29mm) | 3-3/4" (95mm) |
| 600F68 Fin* | Square Corner | 1-1/8" (29mm) | 5" (127mm) |
| 600F71 Fin* | Rounded Corner | 1-1/8" (29mm) | 5" (127mm) |
Deadlocking Latch - All Other Functions
| Part No. | Front | Front Width | Backset |
|---|---|---|---|
| 599F92 Fin* | Square Corner | 1" (25mm) | 2-3/8" (60mm) |
| 599F95 Fin* | Rounded Corner | 1" (25mm) | 2-3/8" (60mm) |
| 599F98 Fin* | Square Corner | 1-1/8" (29mm) | 2-3/8" (60mm) |
| 600F01 Fin* | Rounded Corner | 1-1/8" (29mm) | 2-3/8" (60mm) |
| 600F04 Fin* | Square Corner | 1" (25mm) | 2-3/4" (70mm) |
| 600F07 Fin* | Rounded Corner | 1" (25mm) | 2-3/4" (70mm) |
| 600F10 Fin* | Square Corner | 1-1/8" (29mm) | 2-3/4" (70mm) |
| 600F13 Fin* | Rounded Corner | 1-1/8" (29mm) | 2-3/4" (70mm) |
| 600F63 Fin* | Square Corner | 1-1/8" (29mm) | 3-3/4" (95mm) |
| 600F66 Fin* | Rounded Corner | 1-1/8" (29mm) | 3-3/4" (95mm) |
| 600F69 Fin* | Square Corner | 1-1/8" (29mm) | 5" (127mm) |
| 600F72 Fin* | Rounded Corner | 1-1/8" (29mm) | 5" (127mm) |
Deadlocking
Deadlocking Latch with Throw-Off - CL3820
| Part No. | Front | Front Width | Backset |
|---|---|---|---|
| 599F93 Fin* | Square Corner | 1" (25mm) | 2-3/8" (60mm) |
| 599F96 Fin* | Rounded Corner | 1" (25mm) | 2-3/8" (60mm) |
| 599F99 Fin* | Square Corner | 1-1/8" (29mm) | 2-3/8" (60mm) |
| 600F02 Fin* | Rounded Corner | 1-1/8" (29mm) | 2-3/8" (60mm) |
| 600F05 Fin* | Square Corner | 1" (25mm) | 2-3/4" (70mm) |
| 600F08 Fin* | Rounded Corner | 1" (25mm) | 2-3/4" (70mm) |
| 600F11 Fin* | Square Corner | 1-1/8" (29mm) | 2-3/4" (70mm) |
| 600F14 Fin* | Rounded Corner | 1-1/8" (29mm) | 2-3/4" (70mm) |
| 600F64 Fin* | Square Corner | 1-1/8" (29mm) | 3-3/4" (95mm) |
| 600F67 Fin* | Rounded Corner | 1-1/8" (29mm) | 3-3/4" (95mm) |
| 600F70 Fin* | Square Corner | 1-1/8" (29mm) | 5" (127mm) |
| 600F73 Fin* | Rounded Corner | 1-1/8" (29mm) | 5" (127mm) |
Miscellaneous
| Part No. | Description |
|---|---|
| 721F99 Fin* | 1/8" latch sleeve |
Note: All latches ordered separately include the latch sleeve. When ordering, specify Part No. x Finish (e.g., 600F09 x 626). Screw pack must be ordered separately, see page 6.
The warranty on Corbin Russwin products becomes void if the product is modified in any way, regardless of whether the modifications causes or contributes to any alleged defect. If a Corbin Russwin product is modified it may no longer meet industry certification and quality control standards applicable to the original product and is no longer a genuine Corbin Russwin product.
* Specify Finish

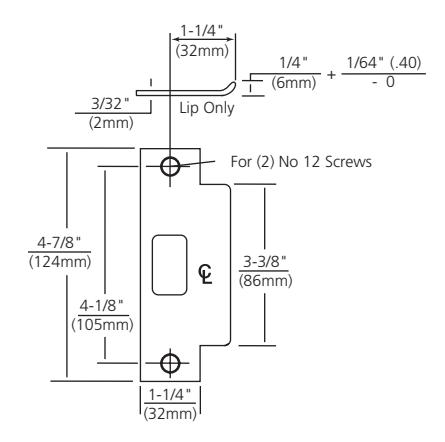

ANSI Curved Lip (standard) Curved Lip "T" Strike
Brass or stainless steel.
4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center. Optional lip lengths:
1" (25mm), 1-1/8" (29mm), 1-3/8" (35mm), 1-1/2" (38mm), 1-3/4" (44mm), 2" (51mm), 2-1/4" (57mm), 2-1/2" (64mm), 2-3/4" (70mm), 3" (76mm).
To order separately, specify Part No. x Finish.

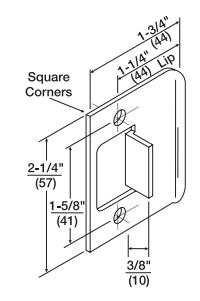

Full Lip Strike
Brass or stainless steel. 2-1/4" x 1-3/4" x 1-1/4" lip to center.
No optional lip lengths. To order separately specify 680L50M020 x Finish. Anti-rattle tab.
Full Lip Strike - 1/4" Radius Corners
Brass or stainless steel. Similar in dimension and function to L50 strike (above but with radius corners for easy mortising by power tools.
To order separately specify 680L51M020 x Finish. Anti-rattle tab.
Brass.

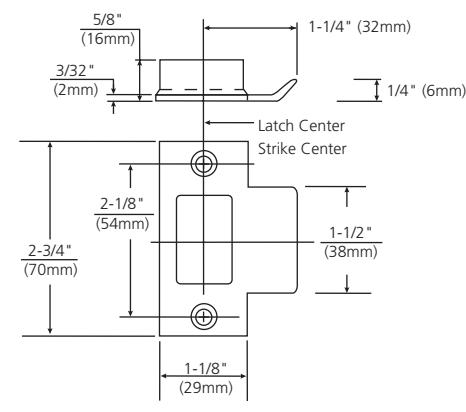

2-3/4" (70mm) x 1-1/8" (29mm) x 1-1/4" (32mm) lip to center. Optional lip lengths: 1" (25mm), 1-1/8" (29mm), 1-3/8" (35mm), 1-1/2" (38mm), 1-3/4" (44mm), 2" (51mm), 2-1/4" (57mm), 2-1/2" (64mm), 2-3/4" (70mm), 3" (76mm). To order separately, specify Part No. x Finish.
ANSI Wrought Strike Box
Used with ANSI 4-7/8" (124mm) strike . To order with lockset, specify Quick Code M17. To order separately, specify 120F768.
Strikes - 4-7/8 " ANSI Curved Lip Strikes - 2-3/4 " T- Curved Lip
| Part No. | Description | Part No. | Description |
|---|---|---|---|
| 217L13M016 Fin* | 1" Lip Length | 586L19M016 Fin* | 1" Lip Length |
| 217L13M018 Fin* | 1-1/8" Lip Length | 586L19M018 Fin* | 1-1/8" Lip Length |
| 217L13M020 Fin* | 1-1/4" Lip Length | 586L19M020 Fin* | 1-1/4" Lip Length |
| 217L13M022 Fin* | 1-3/8" Lip Length | 586L19M022 Fin* | 1-3/8" Lip Length |
| 217L13M024 Fin* | 1-1/2" Lip Length | 586L19M024 Fin* | 1-1/2" Lip Length |
| 217L13M028 Fin* | 1-3/4" Lip Length | 586L19M028 Fin* | 1-3/4" Lip Length |
| 217L13M032 Fin* | 2" Lip Length | 586L19M032 Fin* | 2" Lip Length |
| 217L13M036 Fin* | 2-1/4" Lip Length | 586L19M036 Fin* | 2-1/4" Lip Length |
| 217L13M040 Fin* | 2-1/2" Lip Length | 586L19M040 Fin* | 2-1/2" Lip Length |
| 217L13M044 Fin* | 2-3/4" Lip Length | 586L19M044 Fin* | 2-3/4" Lip Length |
| 217L13M048 Fin* | 3" Lip Length | 586L19M048 Fin* | 3" Lip Length |
Strike - 2-1/4" Full Lip
| Part No. | Description | ||
|---|---|---|---|
| 680L50M020 Fin* | Square Corners | ||
| 680L51M020 Fin* |
1/4" Radius
Corners |
||
Strike Box
| Part No. | Description | |
|---|---|---|
| 120F768 | 4-7/8" ANSI strike box | |
Screw pack must be ordered separately, see page 6.
The warranty on Corbin Russwin products becomes void if the product is modified in any way, regardless of whether the modifications causes or contributes to any alleged defect. If a Corbin Russwin product is modified it may no longer meet industry certification and quality control standards applicable to the original product and is no longer a genuine Corbin Russwin product.
Copyright © 2021, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.
* Specify finish
Access 3® - .510" plug diameter Pyramid - .496" plug diameter Conventional - .509" plug diameter Security - .552" plug diameter Brass, 6- or 7-pin 2 nickel silver keys Finishes: 606, 626, BSP*
Fixed Core Cylinders Large Format Interchangeable Core
Access 3® - .510" plug diameter Pyramid - .496" plug diameter Conventional - .509" plug diameter Security - .552" plug diameter Brass, 6- or 7-pin 2 nickel silver keys Finishes: 606, 626, BSP

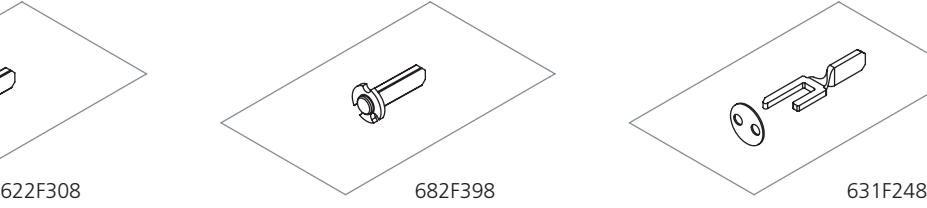

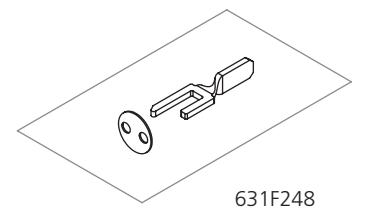

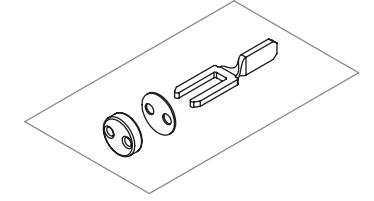

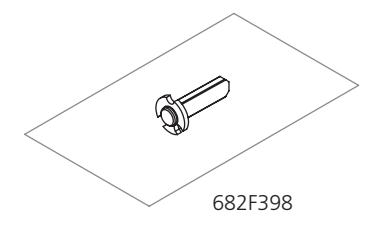

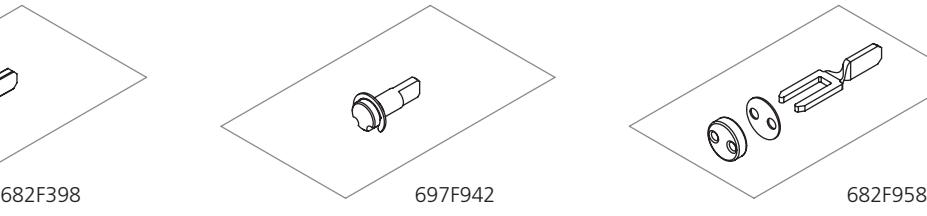

| Description | Cylinder | Tailpiece Pack | |
|---|---|---|---|

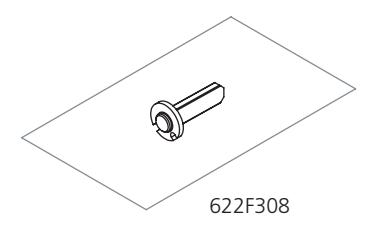

| Conventional 6-Pin | CR2000-033 (Std.) | 622F308 | |
| Conventional 7-Pin | CR2000-033-7 | 682F298 | |
| Security | CR2010-033 | ||
| Access 3® - AP Type | CR2500-033 | ||
| Access 3® - AS Type | CR2600-033 | ||
| Access 3® - AHS Type | CR2700-033 | 622F308 | |
| Pyramid Security | CR2027-033 | ||
| Pyramid High Security | CR2020-033 | ||
|
Schlage®
C Keyway (0-Bitted) |
CR2400-033-C | ||
|
Schlage® C Keyway (Keyed
Random) |
CR2400-033-C-KR
682F398 |
||
|
SARGENT®
LA Keyway (0-Bitted) |
CR2400-033-LA | ||
| Description | Core | Tailpiece Pack |
|---|---|---|
| Conventional 6-Pin | CR8000 | |
| Conventional 7-Pin | CR8000-7 | |
| Security | CR8010 | |
| Access 3® - AP Type | CR8500 | 631F248 |
| Access 3® - AS Type | CR8600 | |
| Access 3® - AHS Type | CR8700 | |
| Pyramid Security | CR8027 | |
| Pyramid High Security | CR8020 |
* CR2400 not available in BSP
Small Format Interchangeable Core
Best® keyways A, B, C, D, E, F, G, H, J, K, L, M Brass, 6- or 7-pin 2 nickel silver keys Finishes: 606, 626
| Description | Core | Tailpiece Pack |
|---|---|---|
| 6-pin | CR8200 | |
| 7-pin | CR8200-7 | 682F958 |
The warranty on Corbin Russwin products becomes void if the product is modified in any way, regardless of whether the modifications causes or contributes to any alleged defect. If a Corbin Russwin product is modified it may no longer meet industry certification and quality control standards applicable to the original product and is no longer a genuine Corbin Russwin product.
Misc. Parts
| Part # | Description |
|---|---|
| 627F009 | Disposable Cores Corbin Russwin LFIC (10pack) |
| 707F299 | Disposable Cores SFIC (10 pack) |
Compatibility with Competitive Cylinders/Cores
| Manufacturer | Cylinder Type | Tailpiece Pack |
Option Code
with Lock |
Description |
|---|---|---|---|---|
| Fixed Core | ||||
| SARGENT® | Fixed Core | 682F969 | M09 |
For SARGENT 6 pin cylinders (13-3266). Option code with lock
includes special lever and tailpiece. |
| Schlage® | Fixed Core | 682F398 | M06 |
For Schlage 6 pin conventional cylinders (21-002, 23-001 or 23-013)
or Schlage Primus cylinders (20-548, 20-550, 20-748 or 20-750). Option code with lock includes tailpiece. |
| Interchangeable Core | ||||
| Schlage® | LFIC | 697F942 | M69 |
For Schlage 6 pin large format interchangeable cores. Option code
with lock includes special lever and tailpiece. |
| All | SFIC | 682F958 | M08 |
For all SFIC 6 and 7 pin cores. Option code with lock includes special
lever and tailpiece. |
Levers for Doors 1-3/8 " - 1-7/8 "

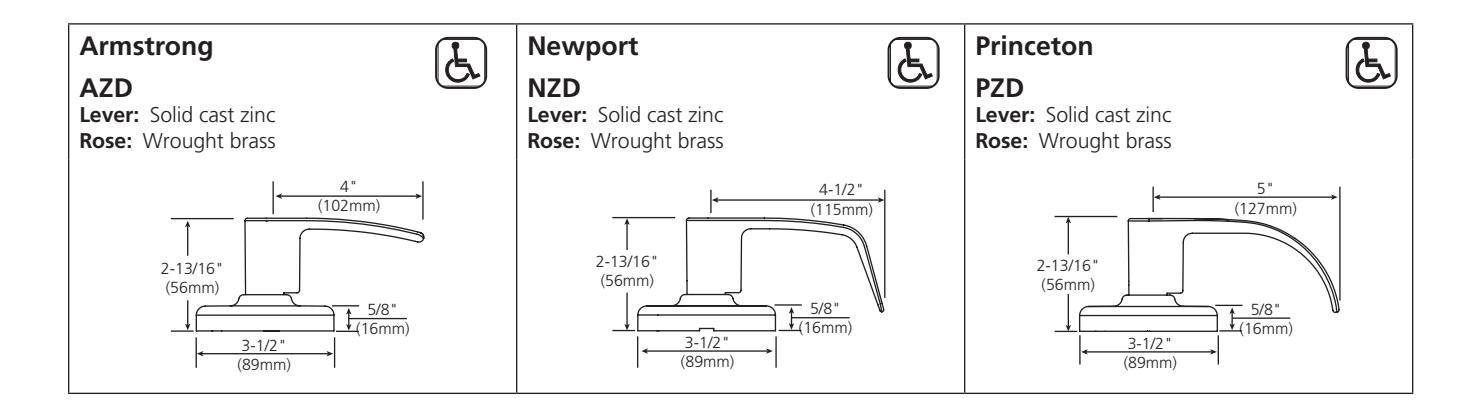

| Application | Armstrong | Newport | Princeton |
|---|---|---|---|
| Plain | 598F81 Fin* | 797F84 Fin* | 798F11 Fin* |
| Cylinder or Turn/Push Button | 598F82 Fin* | 797F85 Fin* | 798F12 Fin* |
| Emergency Key Hole | 598F83 Fin* | 797F86 Fin* | 798F13 Fin* |
| Corbin Russwin Large Format Interchangeable Core (LFIC) - 6 Pin | 598F90 Fin* | 797F91 Fin* | 798F15 Fin* |
| Corbin Russwin Large Format Interchangeable Core (LFIC) - 7 Pin | 598F27 Fin* | 797F92 Fin* | 798F16 Fin* |
| Small Format Interchangeable Core (SFIC) - 6 or 7 Pin | 409F90 Fin* | 797F94 Fin* | 798F18 Fin* |
| Schlage® Large Format Interchangeable Core (LFIC) - 6 Pin | NA | 797F93 Fin* | 798F17 Fin* |
| SARGENT® Fixed Core Cylinder - 6 Pin | NA | 797F87 Fin* | 798F14 Fin* |
Levers for Doors 2 " - 2-1/4 "
| Application | Armstrong | Newport | Princeton |
|---|---|---|---|
| Plain | 684F77 Fin* | 684F82 Fin* | 798F21 Fin* |
| Cylinder or Turn/Push Button | 684F78 Fin* | 684F83 Fin* | 798F22 Fin* |
| Emergency Key Hole | 684F79 Fin* | 684F84 Fin* | 798F23 Fin* |
| Corbin Russwin Large Format Interchangeable Core (LFIC) - 6 Pin | 684F80 Fin* | 684F86 Fin* | 798F25 Fin* |
| Corbin Russwin Large Format Interchangeable Core (LFIC) - 7 Pin | 684F81 Fin* | 684F87 Fin* | 798F26 Fin* |
| Small Format Interchangeable Core (SFIC) - 6 or 7 Pin | 409F86 Fin* | 684F88 Fin* | 798F28 Fin* |
| Schlage® Large Format Interchangeable Core (LFIC) - 6 Pin | NA | 684F98 Fin* | 798F27 Fin* |
| SARGENT® Fixed Core Cylinder - 6 Pin | NA | 684F85 Fin* | 798F24 Fin* |
The warranty on Corbin Russwin products becomes void if the product is modified in any way, regardless of whether the modifications causes or contributes to any alleged defect. If a Corbin Russwin product is modified it may no longer meet industry certification and quality control standards applicable to the original product and is no longer a genuine Corbin Russwin product.
* Specify Finish
For additional information, contact your ASSA ABLOY Door Security Solutions sales consultant or visit www.corbinrusswin.com.
In U.S.
Corbin Russwin Architectural Hardware 225 Episcopal Road Berlin, CT 06037 Phone: 800-543-3658 Fax: 800-447-6714 www.corbinrusswin.com
In Canada
ASSA ABLOY Door Security Solutions Canada 160 Four Valley Drive Vaughan, Ontario Canada L4K 4T9 Phone: 800-461-3007 Fax: 800-461-8989 www.assaabloydss.ca
