Corbin Russwin CL33800 Series Template

Original Source Document Full PDF Version

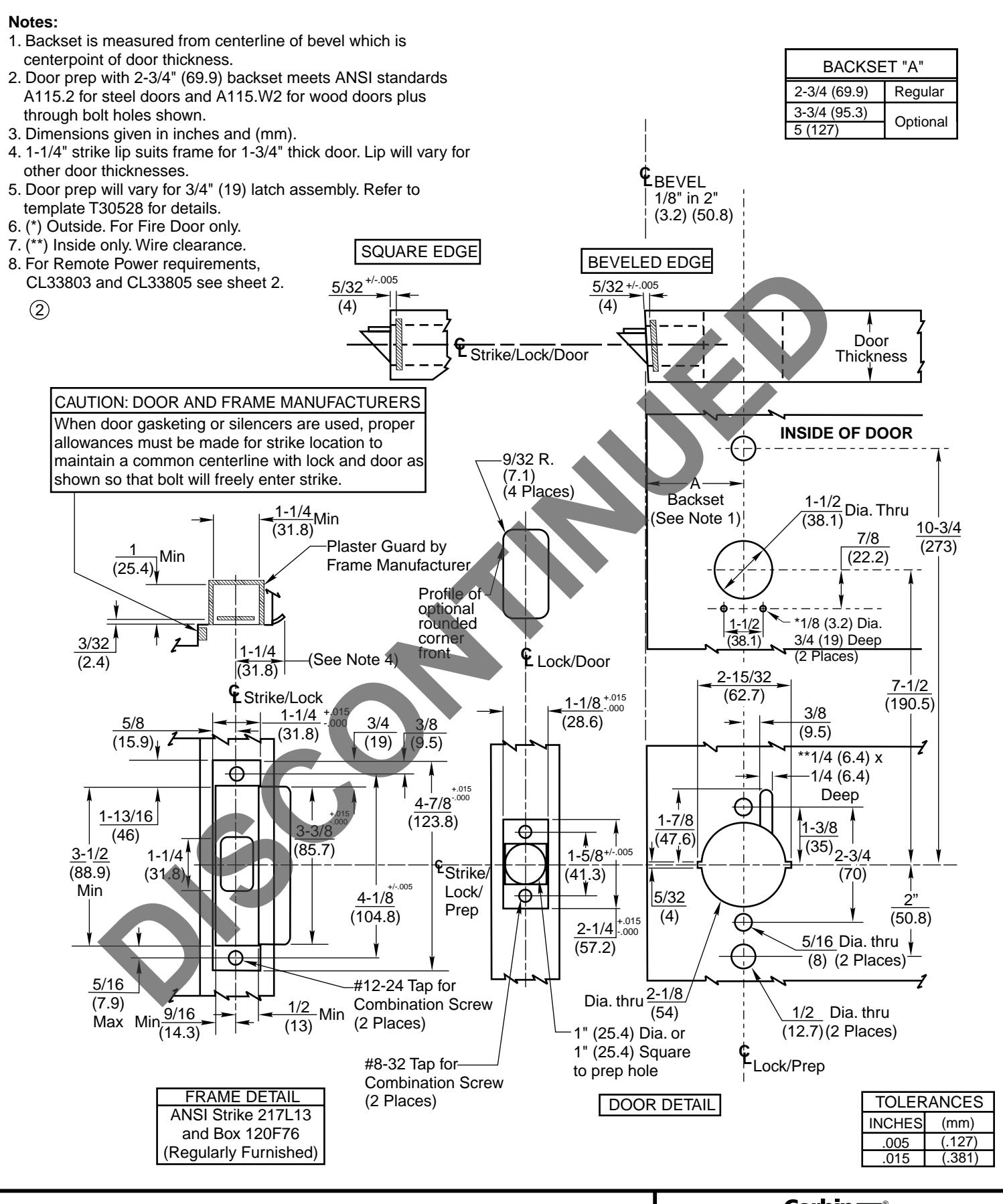

Corbin Russwin CL33800 Series Template_T30990 diagram on page 1

CL33800 Series Cylindrical Lever Lockset

Corbin 72

ASSA ABLOY

An ASSA ABLOY Group company

T30990-1

DO NOT SCALE DRAWING

T30990-2 SHEET 1 of 2 DATE 10-07

Remote Power Supply Door Details

required for CL33803 and CL33805

Corbin Russwin CL33800 Series Template_T30990 image on page 2

1. Dimensions given in inches and (mm).
2. Wire raceway must connect 3/4 (19) counterbore to the hinge edge power source.

Corbin Russwin CL33800 Series Template_T30990 diagram on page 2

CL33800 Series Cylindrical Lever Lockset

Corbin 78° Russwin 78°

ASSA ABLOY

An ASSA ABLOY Group company

T30990-1

DO NOT SCALE DRAWING

$-2^{|SHEET}$ 2 of $2^{|DATE}$ 10-07

TEMPLATE NUMBER T30990-2
