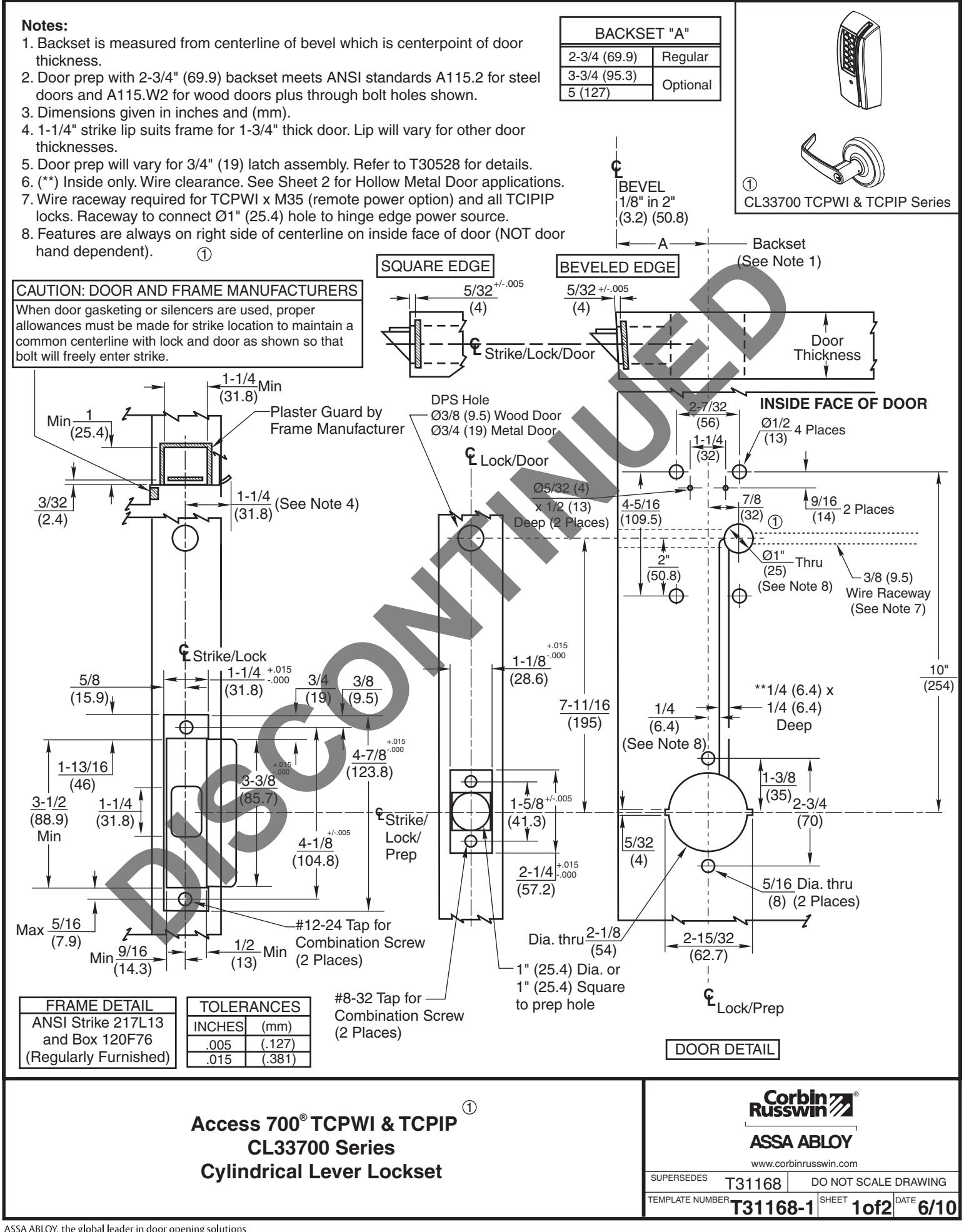

Corbin Russwin CL33700 Series Template_T31168 diagram on page 1

Notes:

  • 1. Backset is measured from centerline of bevel which is centerpoint of door thickness.
  • 2. Door prep with 2-3/4" (69.9) backset meets ANSI standards A115.2 for steel doors and A115.W2 for wood doors plus through bolt holes shown.
  • 3. Dimensions given in inches and (mm).
  • 4. 1-1/4" strike lip suits frame for 1-3/4" thick door. Lip will vary for other door thicknesses.
  • 5. Door prep will vary for 3/4" (19) latch assembly. Refer to template T30528 for details.
  • 6. (**) Inside only. Wire clearance.

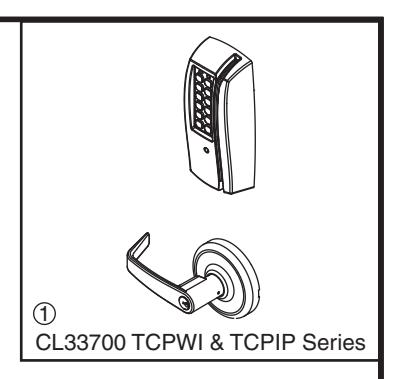

Corbin Russwin CL33700 Series Template_T31168 image on page 2

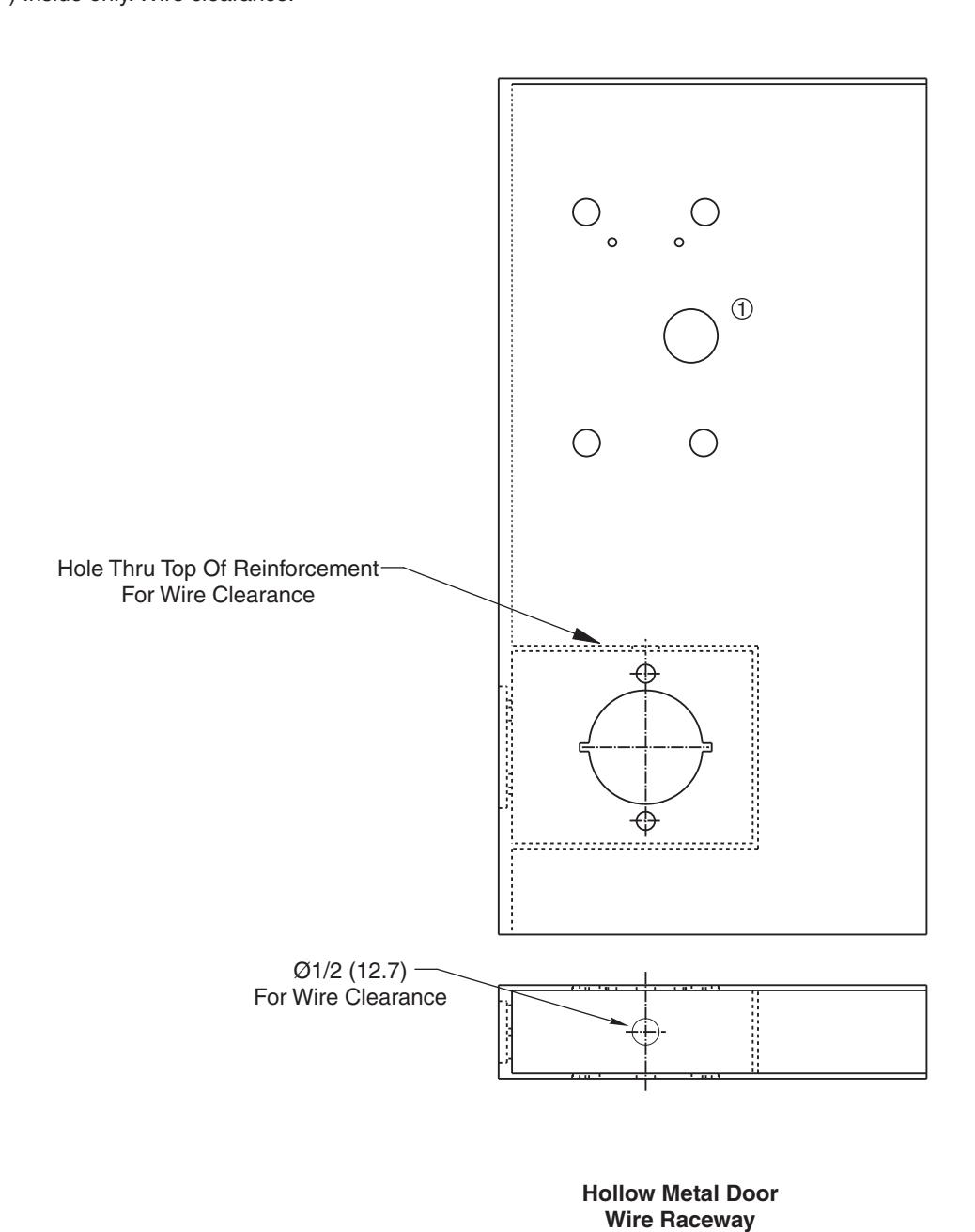

Corbin Russwin CL33700 Series Template_T31168 diagram on page 2

Access 700® TCPWI &TCPIP CL33700 Series Cylindrical Lever Lockset

ASSA ABLOY

www.corbinrusswin.com

SUPERSEDES DO NOT SCALE DRAWING T31168

TEMPLATE NUMBER T31168-1

SHEET 2of2 6/10
