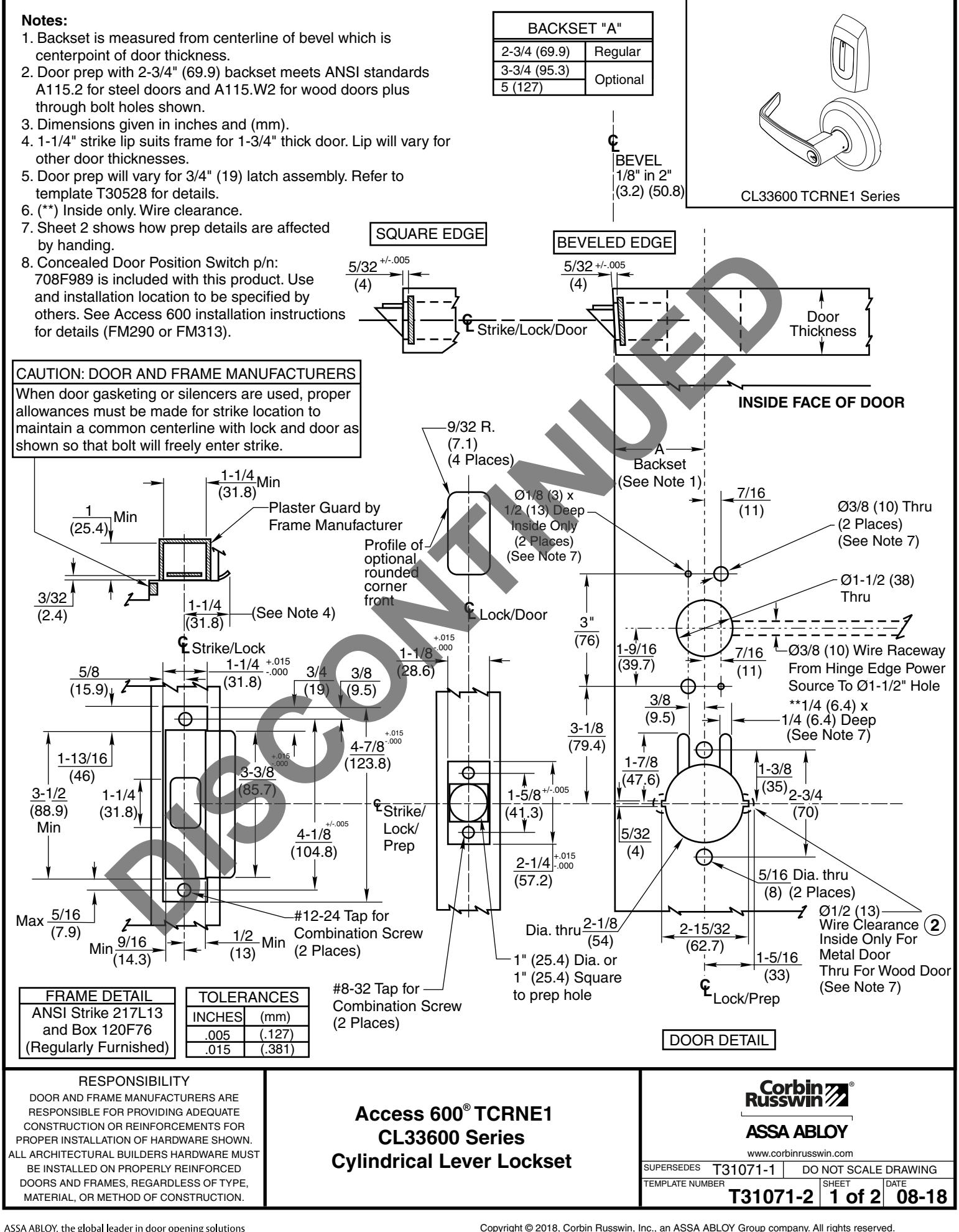

Corbin Russwin CL33600 Series Template_T31071 diagram on page 1

LH/LHR DOORS

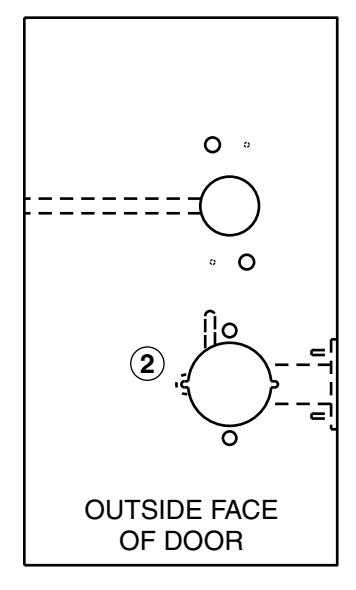

Corbin Russwin CL33600 Series Template_T31071 image on page 2

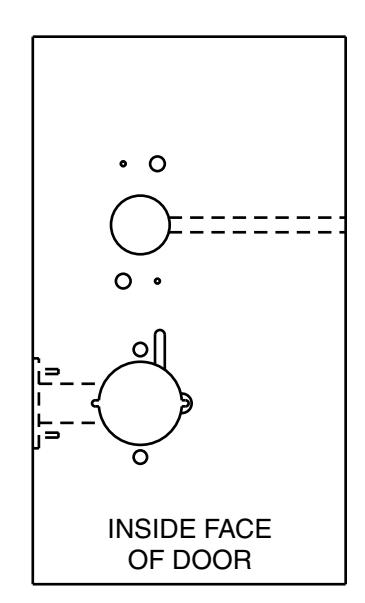

Corbin Russwin CL33600 Series Template_T31071 image on page 2

Corbin Russwin CL33600 Series Template_T31071 image on page 2

RH/RHR DOORS

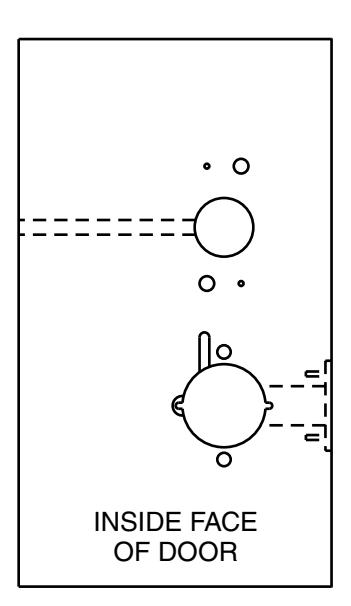

Corbin Russwin CL33600 Series Template_T31071 image on page 2

Corbin Russwin CL33600 Series Template_T31071 image on page 2

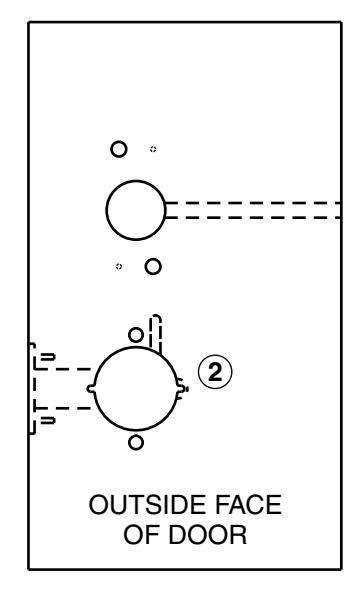

Corbin Russwin CL33600 Series Template_T31071 diagram on page 2

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

Access 600<sup>®</sup> TCRNE1 CL33600 Series Cylindrical Lever Lockset

Corbin Russwin 2°
