NOTES:

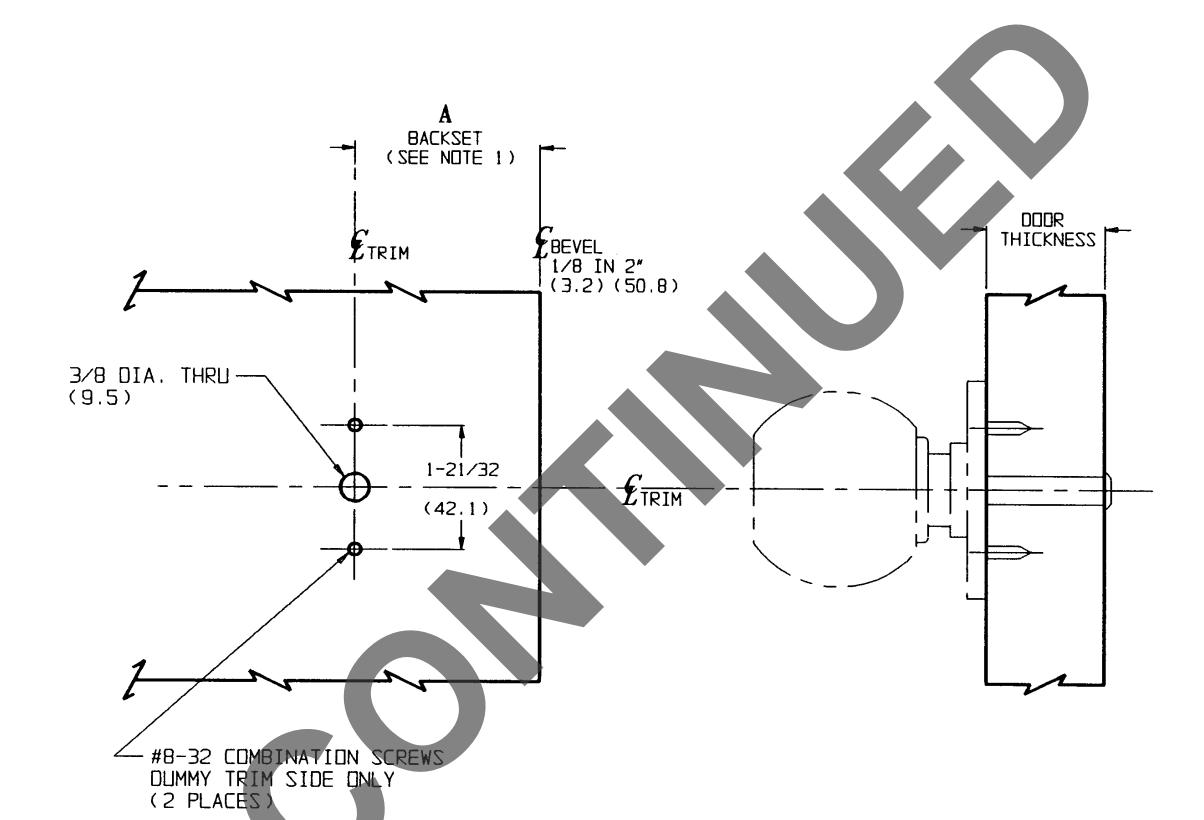

• BACKSET IS MEASURED FROM CENTERLINE OF BEVEL WHICH IS CENTERPOINT OF DOOR THICKNESS.
• 2. DIMENSIONS GIVEN IN INCHES AND (MM).

TEMPLATE	CROSS	REFERENCE
DESCRIPTION			TEMPLATE

CK4400 SERIES CYLINDRICAL KNOB LOCK T30400

A BACKSET	REMARKS
2-3/4	REGULAR
(69.9)
2-3/B	OPTIONAL
(60.3)
3-3/4
(95.3)
5″
(127)

RESPONSIBILITY

Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.

CK4450

HALF DUMMY TRIM

www.corbinrusswin.com

DO NOT SCALE DRAWING ΚJ

4/14/93
