Notes:

• Backset is measured from centerline of bevel which is centerpoint of door thickness.
• 2. Dimensions given in inches and (mm).
• 3. Full dummy trim same as shown except applied to both sides.

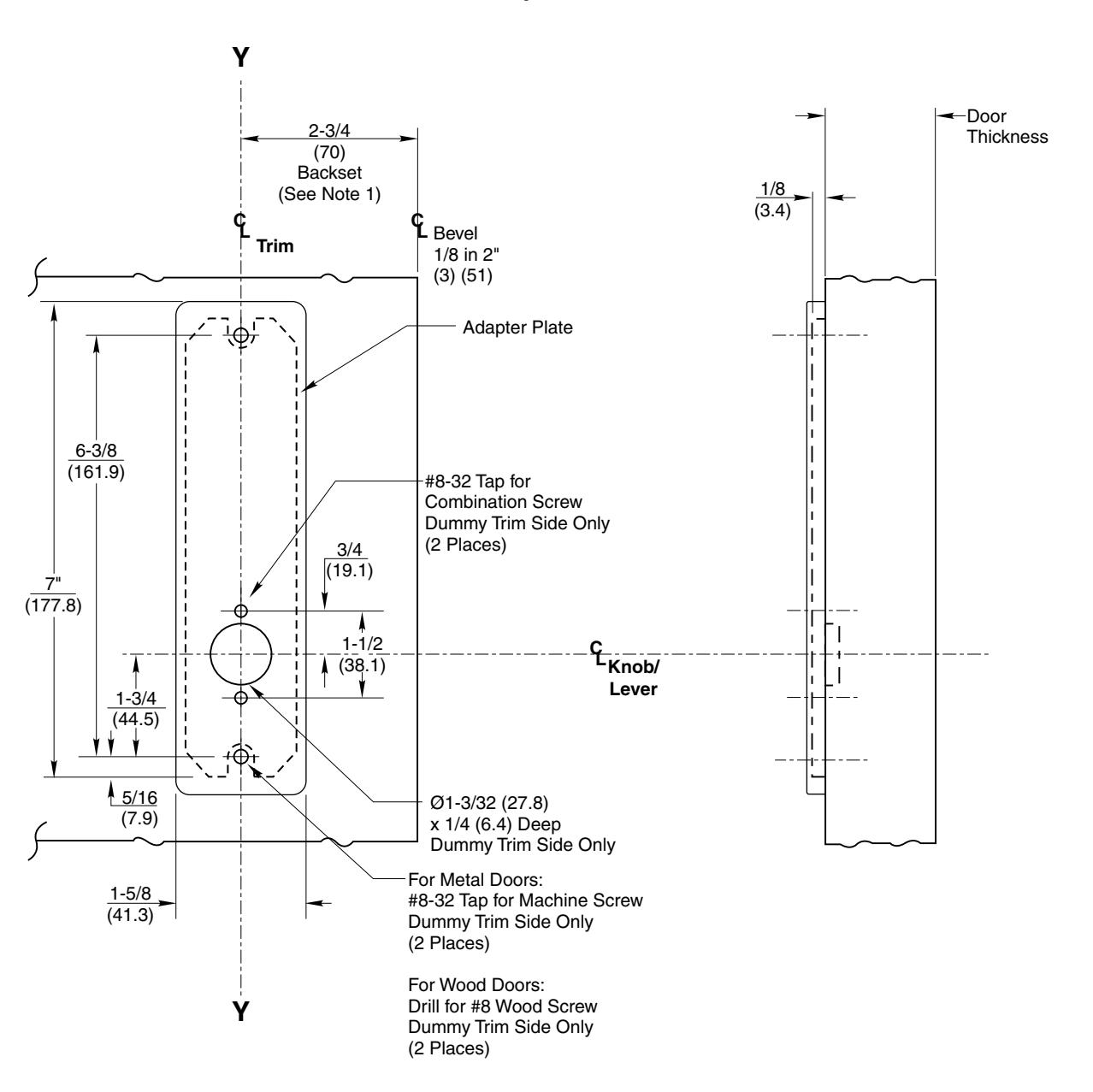

Half Dummy Trim Shown

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

ASP GZP PSP CSP LSP RSP DSP LWP RWP ESP NSP YZP

Mortise Lock Escutcheon Half and Full Dummy Trim

Corbin Russwin 20°

assa abloy

www.corbinrusswin.com

SUPERSEDES T30557-1 DO NOT SCALE DRAWING TEMPLATE NUMBER T30557-2 DATE 11-18

2
