Notes:

• Backset is measured from centerline of bevel which is centerpoint of door thickness.
• 2. Dimensions given in inches and (mm).
• Full dummy trim same as shown except applied to both sides.

Half Dummy Trim Shown

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

ASN GZN PSN CSN LSN RSN DSN LWN RWN ESN NSN YZN

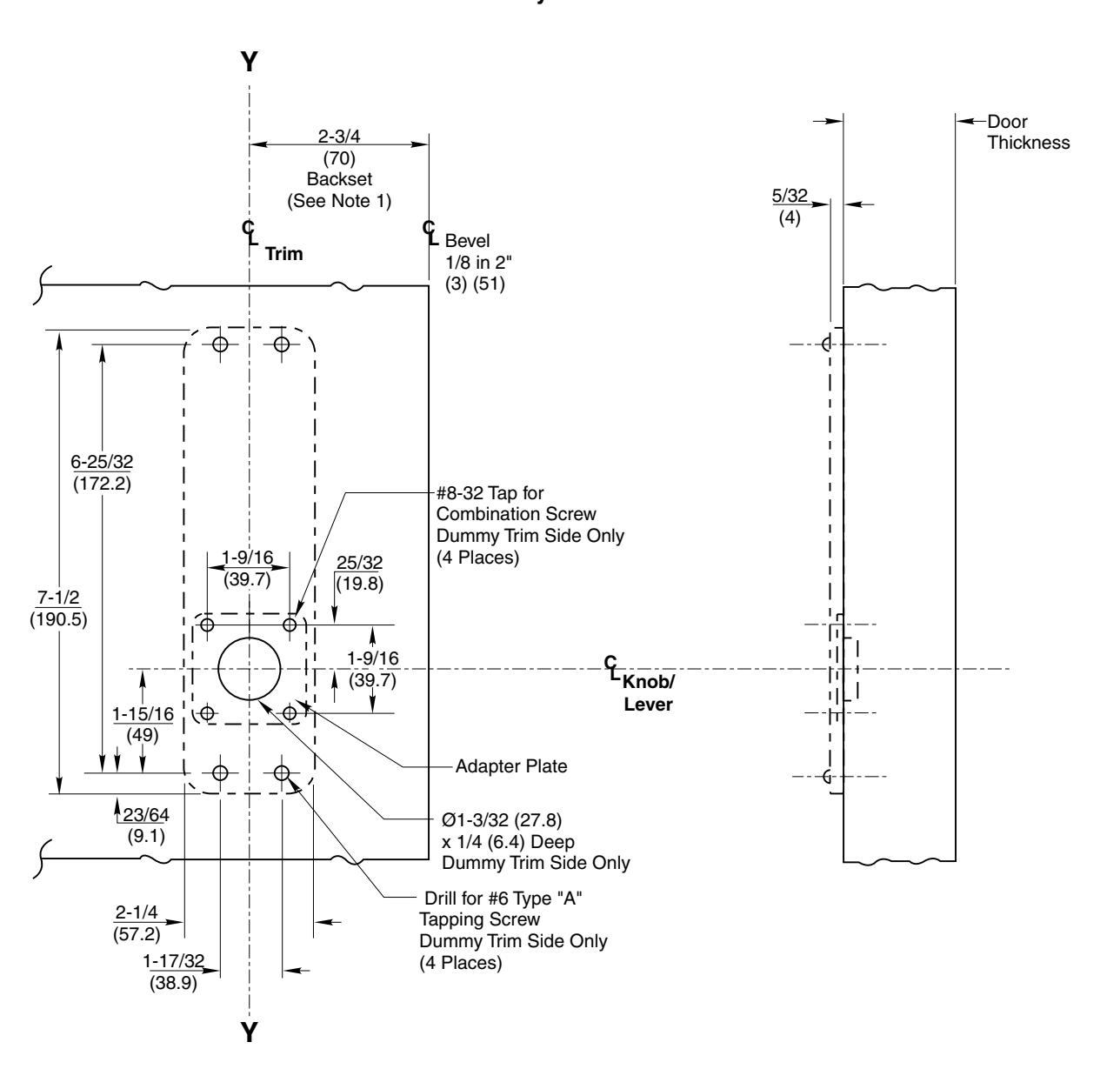

Mortise Lock Escutcheon Half and Full Dummy Trim

Corbin 78° Russwin 78°

ASSA ABLOY

www.corbinrusswin.com SUPERSEDES T30559-2 DO NOT SCALE DRAWING

T30559-3
