TEMPLATE CROSS REFERENCE
Description	Template
ML2000, ML2200 Series Mortise Lock	T30600
ML2000, ML2200 Series Mortise Lock (MR)	T30605

Notes:

• 1. Backset is measured from centerline of bevel which is centerpoint of door thickness.
• 2. Refer to appropriate mortise lock template for cylinder and turnpiece preps when required.
• 3. Dimensions given in inches and (mm).

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

ASN ESN LWN RSN CSN RWN GZN NSN PSN DSN LSN YZN

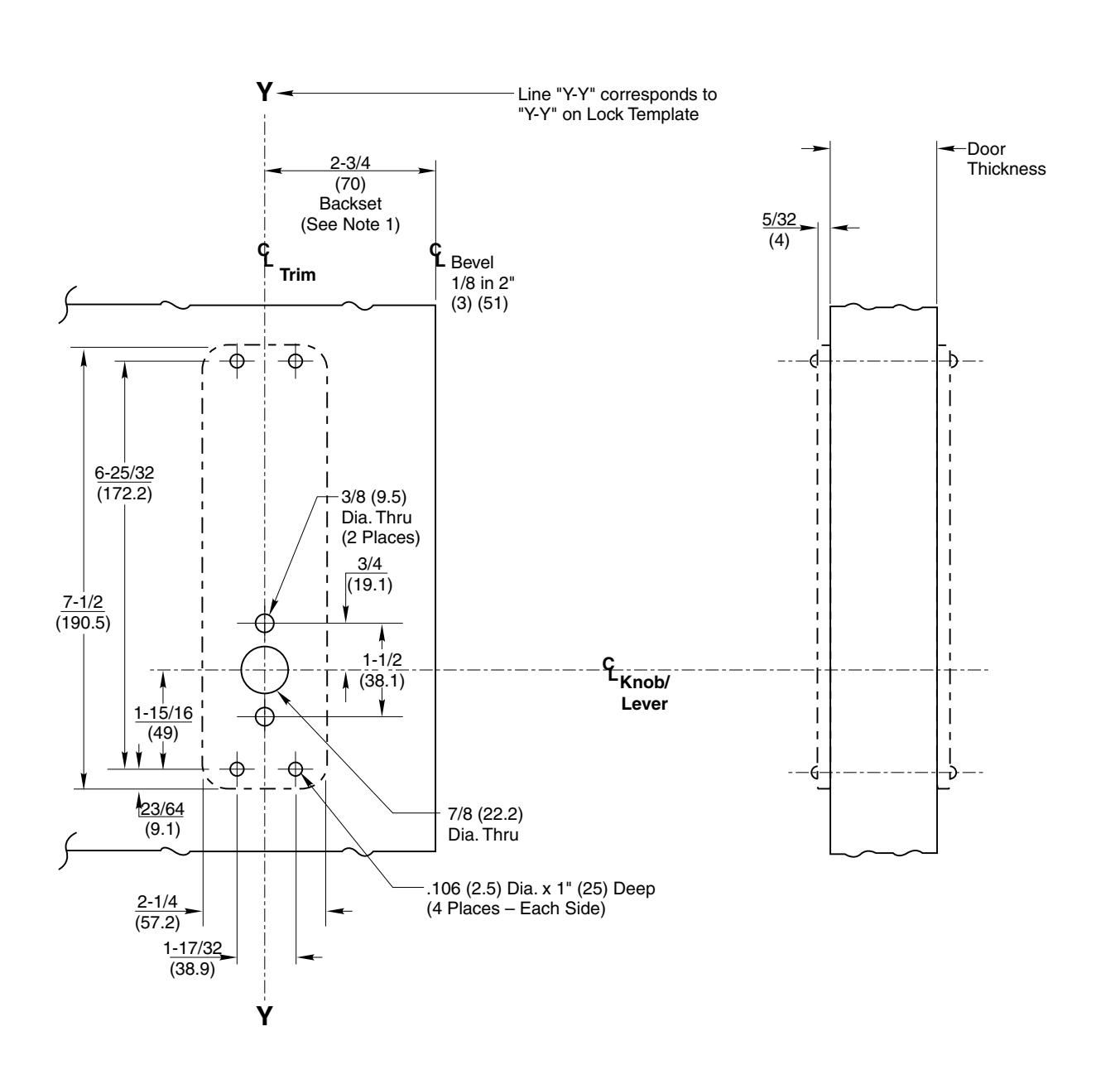

Mortise Lock Escutcheon Trim

ASSA ABLOY

www.corbinrusswin.com

SUPERSEDES T30455-5 DO NOT SCALE DRAWING TEMPLATE NUMBER T30455-6

11-18

6
