Notes:

• Backset is measured from centerline of bevel which is centerpoint of door thickness.
• 2. Dimensions given in inches and (mm).
• 3. Full dummy trim same as shown except applied to both sides.

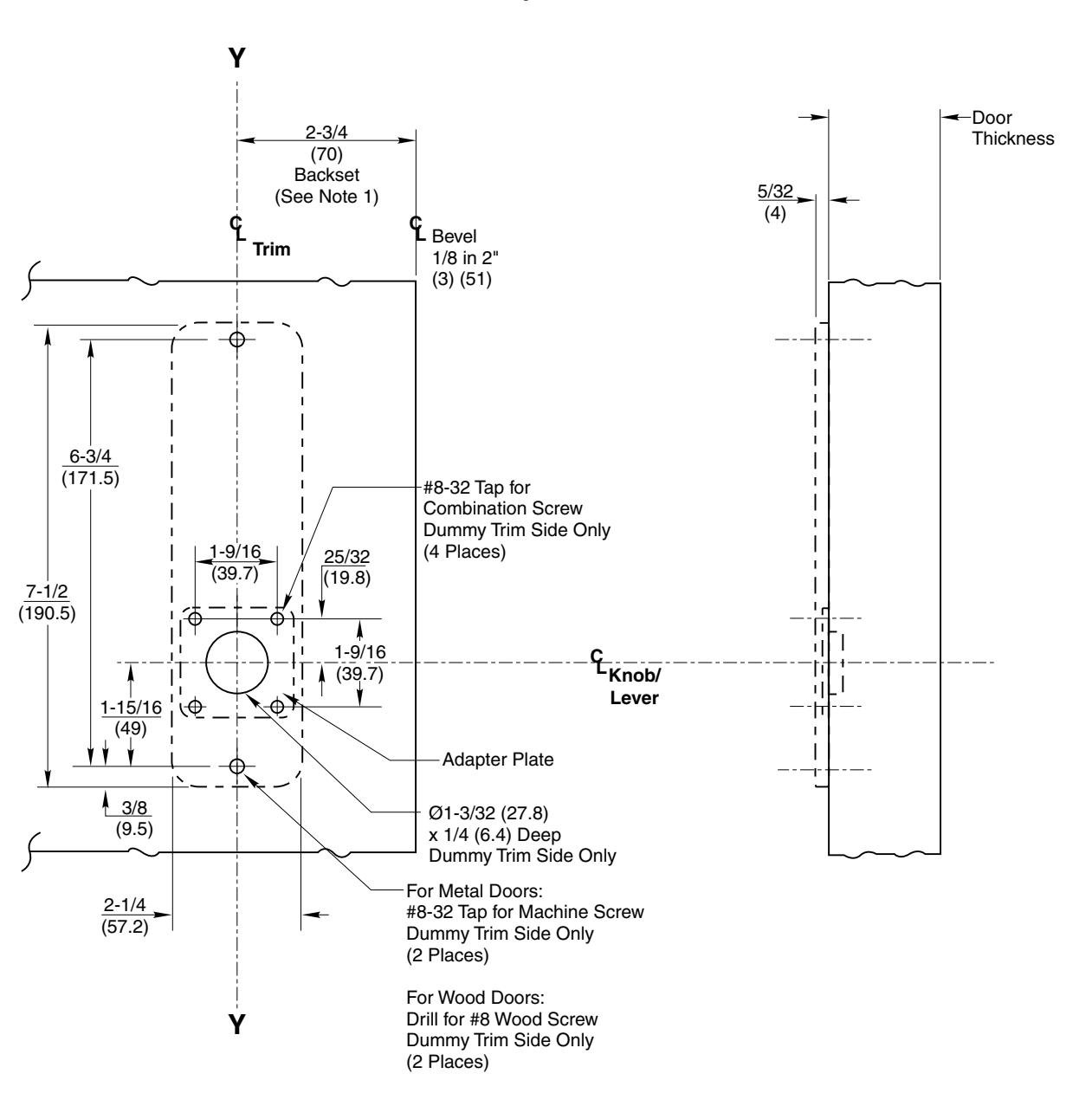

Half Dummy Trim Shown

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

ASM GZM PSM CSM LSM RSM DSM LWM RWM ESM NSM YZM

Mortise Lock Escutcheon Half and Full Dummy Trim

Corbin 70° Russwin 70°

ASSA ABLOY

www.corbinrusswin.com

SUPERSEDES T30558-1 DO NOT SCALE DRAWING TEMPLATE NUMBER T30558-2

2
