Notes:

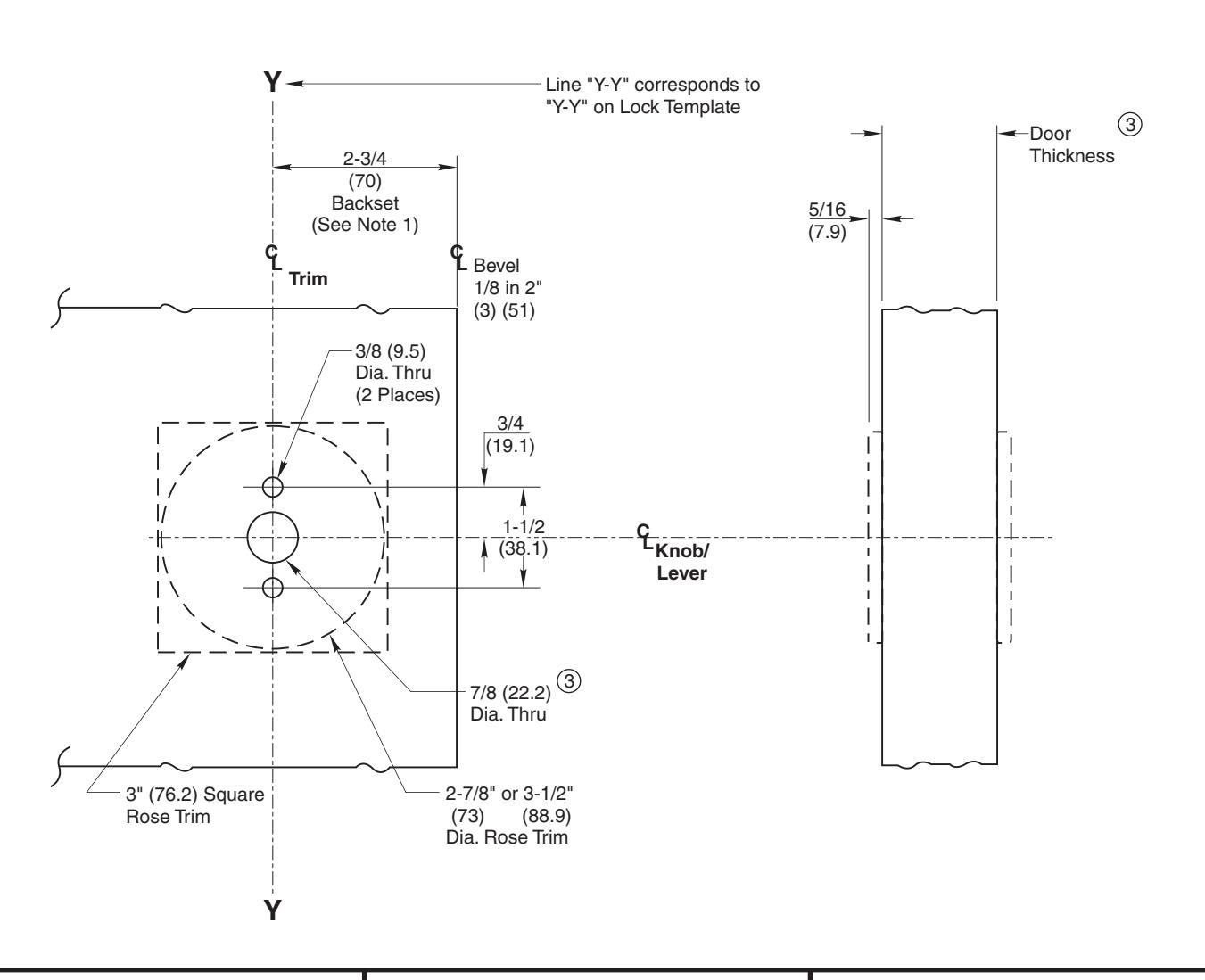

- 1. Backset is measured from centerline of bevel which is centerpoint of door thickness.
- 2. Template applies to Knob by Rose designs.
- 3. Dimensions given in inches and (mm).
| TEMPLATE CROSS REFERENCE | |
|---|---|
| Description | Template |
| ML2000, ML2200 Series Mortise Lock | T30600 |
| ML2000, ML2200 Series Mortise Lock (MR) | T30605 |
| Trim | Rose Design |
|---|---|
| BRC | |
| BWC | 2-7/8" Dia. |
| GRC | (73) |
| GWC | |
| BRD | |
| BWD | 3-1/2" Dia. |
| GRD | (88.9) |
| GWD | , , |
| BRE | |
| BWE | 3" Square |
| GRE | (76.2) |
| GWE | ` ′ |
RESPONSIBILITY
Door and Frame Manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware shown. All architectural builders hardware must be installed on properly reinforced doors and frames, regardless of the type, material, or method of construction.
BRC BWD GRE BRD BWE GWC BRE GRC GWD BWC GRD GWE
Mortise Lock Rose Trim
ASSA ABLOY
www.corbinrusswin.com
SUPERSEDES T30545-2 DO NOT SCALE DRAWING TEMPLATE NUMBER T30545-3
07-14
