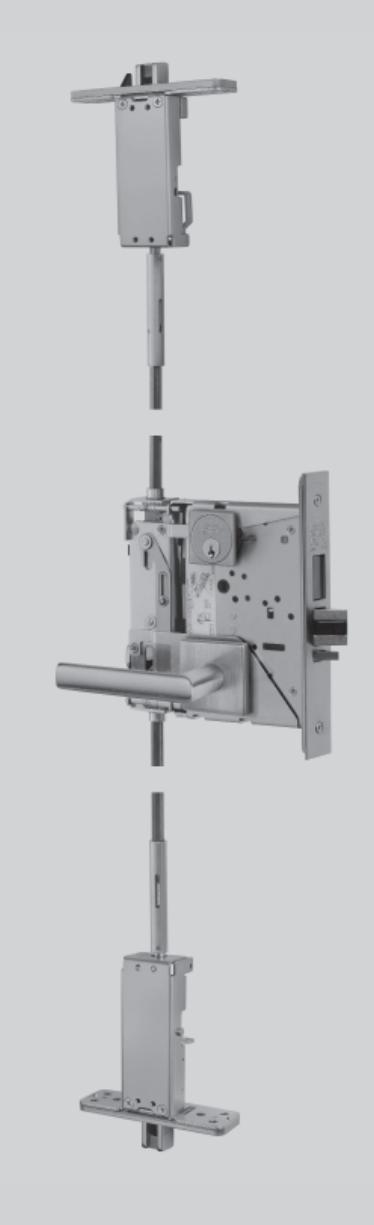

BL6600/FE6600 Series
Multi-Point Lock Parts Manual
45499 08/20
This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.
Templating and Installation
For door templates and installation instructions, please refer to our website at www.corbinrusswin.com.
How to Order Parts
- 1. In order to simplify the ordering procedure and maintain regulatory compliance, parts are only available as listed
- 2. To order parts, provide the appropriate quantity, part number, fi nish, hand (when required) and description as directed and illustrated below.
- For example, use the following confi guration to order:
- A) ten chassis in satin chrome
- B) one dogging indicator in bright brass
| Quantity | Part Number | Finish | Hand | Description | |
|---|---|---|---|---|---|
| A | 10 | 729F528 | 626 | — | Cassette |
| B | 1 | 726F64M | 605 | — | Dogging Indicator |
For assistance, contact your authorized Corbin Russwin distributor, sales agency or visit our website at www.corbinrusswin.com.
Finishes
| ANSI/BHMA Code | Finish Description | |
|---|---|---|
| 605 | Bright Brass, Clear Coated | |
| 606 | Satin Brass, Clear Coated | |
| 611 | Bright Bronze, Clear Coated | |
| 612 | Satin Bronze, Clear Coated | |
| 613 | Dark Oxidized Satin Bronze, Oil Rubbed | |
| 613E | Dark Oxidized Satin Bronze, Equivalent | |
| 618 | Bright Nickel, Clear Coated | |
| 619 | Satin Nickel Plated, Clear Coated | |
| 625 | Bright Chrome Plated | |
| 626 | Satin Chrome Plated | |
| 626C | Satin Chrome Plated with MicroShield® | |
| 629 | Polished stainless steel | |
| 630 | Satin stainless steel | |
| 630C | Satin stainless steel with Microshield | |
| 722 | Black Oxidized Satin Bronze, Oil Rubbed | |
The warranty on Corbin Russwin products becomes void if the product is modifi ed in any way, regardless of whether the modifi cations causes or contributes to any alleged defect. If a Corbin Russwin product is modifi ed it may no longer meet industry certifi cation and quality control standards applicable to the original product and is no longer a genuine Corbin Russwin product.
Copyright © 2000-2020, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents. and Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.
BL6600/FE6600 Series

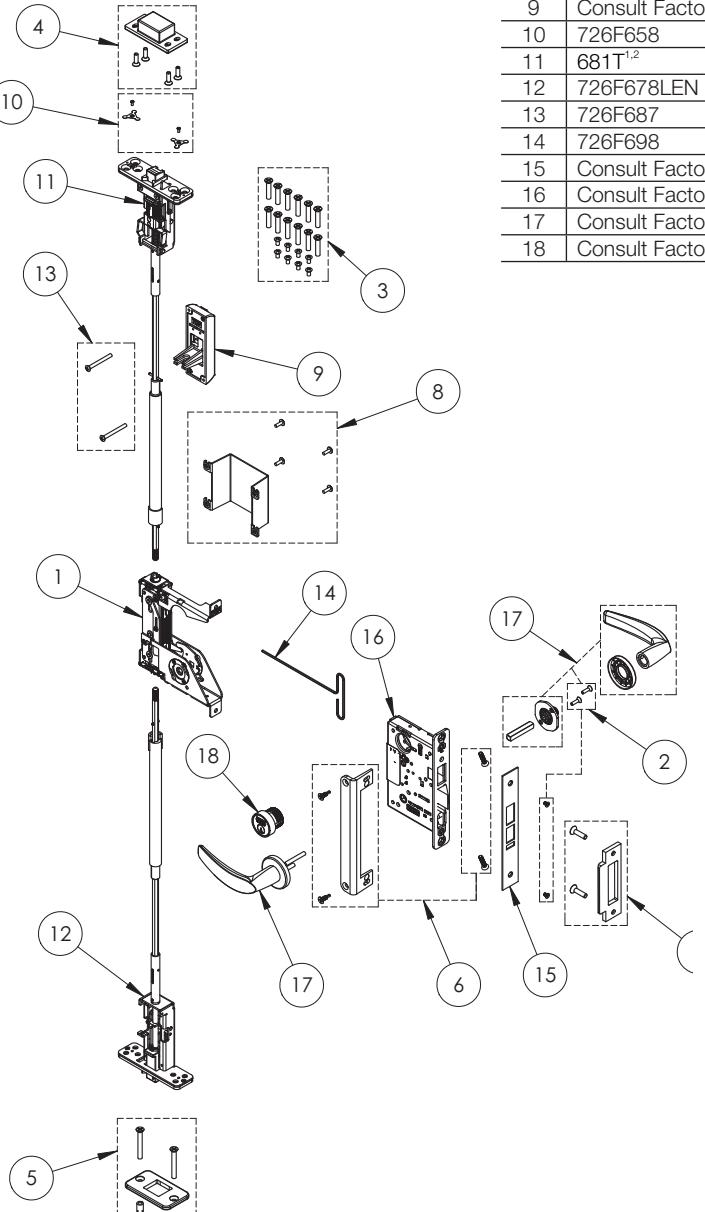

| Item | Part Number | Description | Sellable |
|---|---|---|---|
| 1 | 726F528 | Multipoint Cassette | Yes |
| 2 | 726F558 | Trim Mounting Screw Pack | Yes |
| 3 | 726F567 |
Top/Bottom Case Mounting Screw
Pack |
Yes |
| 4 | 726F577 | Top Strike Pack | Yes |
| 5 | 726F587 | Bottom Strike Pack | Yes |
| 6 | 726F597 19 | Mortise Mounting/Reinforcement Pack | Yes |
| 7 | 726F607 19 | Center Strike Pack | Yes |
| 726F618 19 | In/Pn Inside Cover Shield Pack | Yes | |
| 8 | 726F628 19 | Harmony Inside Cover Shield Pack | Yes |
| 726F638 19 | Passport Inside Cover Shield Pack | Yes | |
| 9 | Consult Factory Dogging Indicator * (Includes Item 13) | Yes | |
| 10 | 726F658 | Screw Retainer Pack | Yes |
| 11 | 681T1,2 | Top Case And Rod Assembly + | Yes |
| 12 | 726F678LEN | Bottom Case And Rod Assembly + | Yes |
| 13 | 726F687 | Dogging Indicator Screw Pack * | Yes |
| 14 | 726F698 | T-Wrench, 3/32" Adjustment | Yes |
| 15 | Consult Factory O/S Front | Yes | |
| 16 | Consult Factory Mortise Lock/Armour Front | Yes | |
| 17 | Consult Factory Mortise Trim | Yes | |
| 18 | Consult Factory Cylinder | Yes |
2. Specify FE for FE6600 or BL for BL6600.
The warranty on Corbin Russwin products becomes void if the product is modifi ed in any way, regardless of whether the modifi cations causes or contributes to any alleged defect. If a Corbin Russwin product is modifi ed it may no longer meet industry certifi cation and quality control standards applicable to the original product and is no longer a genuine Corbin Russwin product.
Copyright © 2000-2020, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents. and Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.
For additional information, contact your ASSA ABLOY Door Security Solutions sales consultant or visit www.corbinrusswin.com.
In U.S.
Corbin Russwin 225 Episcopal Road Berlin, CT 06037 Phone: 800-543-3658
In Canada
ASSA ABLOY Door Security Solutions Canada 160 Four Valley Drive Vaughan, Ontario Canada L4K 4T9 Phone: 800-461-3007 Fax: 800-461-8989 www.assaabloydss.ca
