Installation Instructions
BHSS Trim for ML2000 Series Mortise Locks
WARNING
This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov.
08/2018
| TOC | Table of Contents |
|---|---|
| 1 | Mortise Lock Handing Instructions 2 |
| 2 | Mortise Lock Door Preparation & Installation 3 |
| 3 | BHSS Trim Installation 5 |
| 4 | Turn-Piece Installation 8 |
| 5 | Coin-Turn Installation 8 |
QR Codes
To view the QR Code video clips within this document, download a free mobile app and scan the QR Code with your mobile device. The complete video can be viewed on YouTube at https://youtu.be/I5MLFWODumo
For installation assistance contact Corbin Russwin 1-888-607-5703 • support@corbinrusswin.com FM352 10/18
ML2000 Series Mortise Lock
Installation Instructions
1 Mortise Lock Handing Instructions
- 1. Move the Red locking screw to side of lockbody being locked.

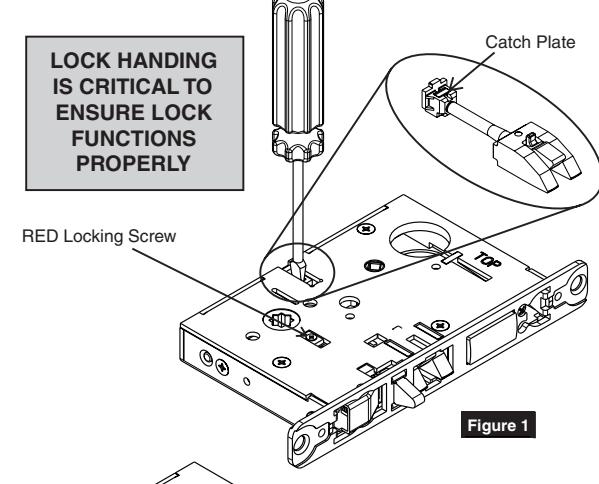

- 2. Push in latch then depress catch plate with screwdriver. (Figure 1)

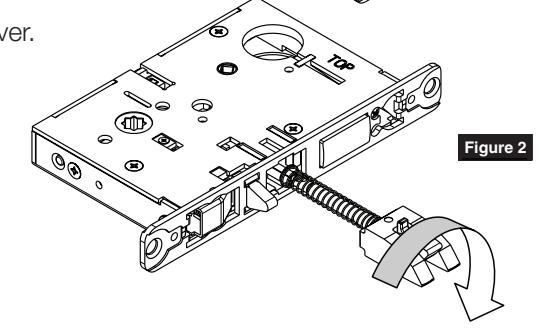

3. Pull latch out of lock-body and turn latch over. (Figure 2)
NOTE:

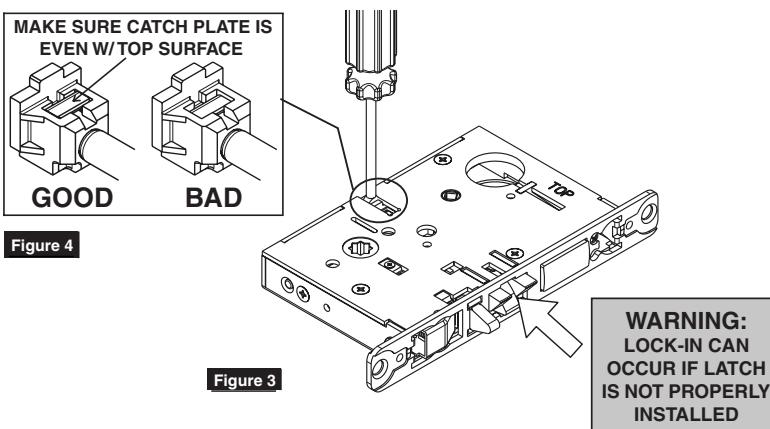

PUSH IN LATCH UNTIL CATCH PLATE IS NO LONGER DEPRESSED. (FIGURE 4)

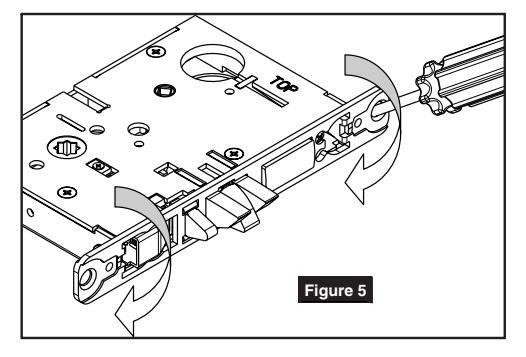

5. Rotate lock front to match bevel of door as shown. (Figure 5)
For installation assistance contact Corbin Russwin 1-888-607-5703 • support@corbinrusswin.com
ML2000 Series Mortise Lock
Installation Instructions
2 Mortise Lock Door Preparation & Installation
Important: Be sure to hand the lockbody before installing. See page 4.
Lock-body Installation
- 1. Insert mortise lock into door and fully tighten 1" lock mounting combination screws. (Figure 6)
- 2. Insert spindle into outside lockbody hub.
- 3. Slide trim door marker template over spindle.
NOTE:
MAKE SURE TEMPLATE IS ORIENTED CORRECTLY. (FIGURE 7)
- 4. Square template to edge of door. (Figure 7)
- 5. Mark two thru-bolt holes.
- 6. Repeat steps 2-5 for inside of door.
7. TURN-PIECE FUNCTIONS ONLY:
Insert turn-piece door marker spindle into lockbody on inside of door.
NOTE:
USE SQUARE SIDE OF DOOR MARKER SPINDLE. (FIGURE 8)
- 8. TURN-PIECE FUNCTIONS ONLY: Slide turn-piece door marker over spindle.
- 9. TURN-PIECE FUNCTIONS ONLY: Mark three holes for turn-piece. (Figure 9)
10. COIN-TURN FUNCTIONS ONLY:
Insert turn-piece marker spindle into lockbody on outside of door.
NOTE:
USE SQUARE SIDE OF DOOR MARKER SPINDLE. (FIGURE 8)
11. COIN-TURN FUNCTIONS ONLY:
Slide turn-piece door marker template over spindle.
12. COIN-TURN FUNCTIONS ONLY:
Mark two holes for coin-turn. (Figure 10)
ML2000 Series Mortise Lock
Installation Instructions
2 Mortise Lock Door Preparation & Installation
- 13. Remove lockbody from door.
- 14. Drill two thru-bolt holes (9/16") halfway through one side of door.
- 15. Drill two thru-bolt holes (9/16") through from opposite side of door.
Drill Thrubolt Holes
NOTE:
DRILL THROUGH BOTH SIDES OF DOOR FOR BETTER ACCURACY.
16. TURN-PIECE FUNCTIONS ONLY:

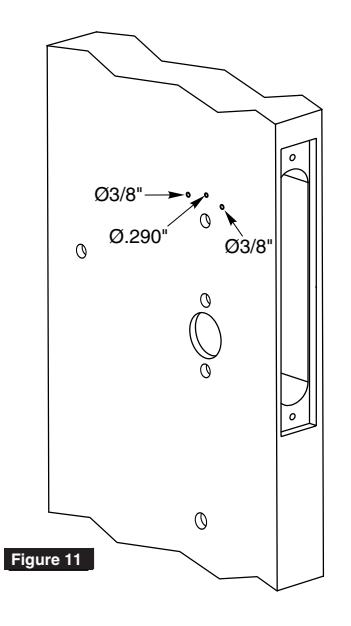

Drill one middle hole (.290") and two outer holes (3/8") halfway through door. (Figure 11)
17. COIN-TURN FUNCTIONS ONLY:
Drill two holes (1/8") halfway through door. (Figure 12)
18. TURN-PIECE FUNCTIONS ONLY:
Install turn-piece thru-bolt plate using truss head screw. (Leave screw slightly loose.) (Figure 13)
NOTE:
THE THRU-BOLT PLATE IS INSTALLED INSIDE THE DOOR POCKET.
19. Insert mortise lockbody into door and loosely tighten 1" lock mounting combination screws.
NOTE:
MAKE SURE LOCK IS UNLOCKED. (FIGURE 14) MAKE SURE LOCK
Figure 14
BHSS Trim
ML2000 Series Mortise Lock
Installation Instructions
3 BHSS Trim Installation
BHSS Strike Installation

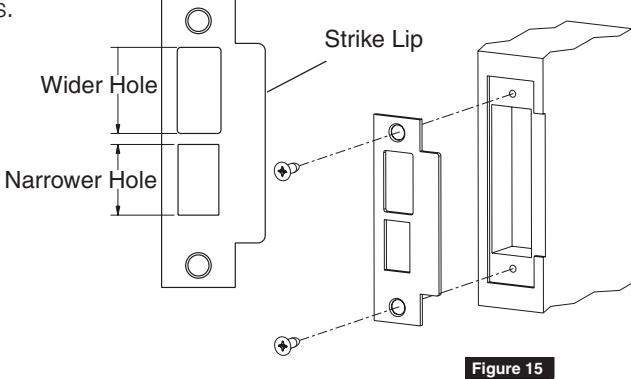

1. Install strike using 3/4" strike mounting screws.
NOTE:
STRIKE MUST BE ORIENTED WITH NARROWER HOLE ON LOWER HALF OF STRIKE AND STRIKE LIP TOWARDS PULL SIDE OF DOOR. (FIGURE 15)
Cylinder Installation
2. CYLINDER FUNCTIONS ONLY:

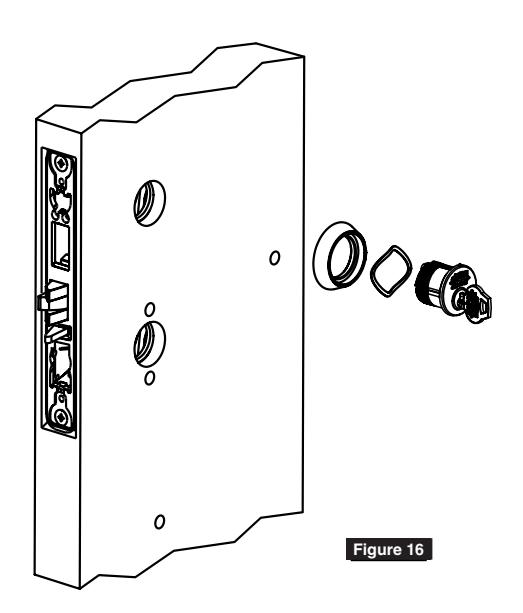

Slide cylinder(s) through spring and collar, threading into lockbody until cylinder face is flush with collar. (Figure 16)
NOTE:
PULL KEY SLIGHTLY OUT OF CYLINDER TO HELP THREAD INTO LOCKBODY.
NOTE:
CYLINDER MUST BE ORIENTED CORRECTLY. (FIGURE 17)
3. CYLINDER FUNCTIONS ONLY:

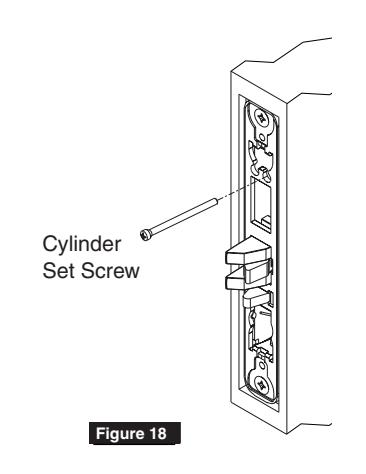

Install cylinder set screw(s). (Figure 18)
4. Fully tighten lock mounting screws.
BHSS Trim
ML2000 Series Mortise Lock
Installation Instructions
3 BHSS Trim Installation
Spindle & Outside Trim Assembly Installation

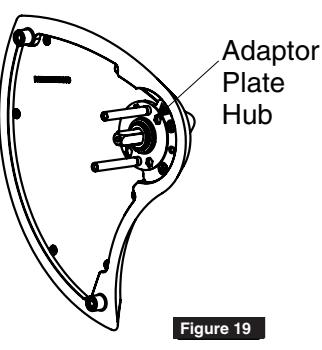

5. Thread adapter plate hub into lever and fully tighten. (Figure 19)
NOTE:
SPINDLE CAN BE USED TO HELP THREAD HUB INTO LEVER.

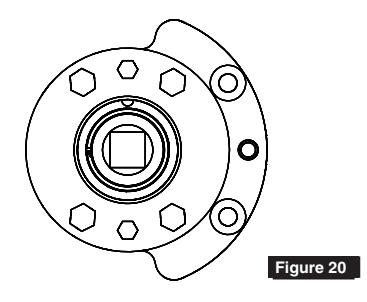

6. Align adapter plate hub with square hole in lever; keeping hub as tight as possible. (Figure 20)
Adapter Plate Installation
- 7. Insert spindle into outside trim assembly.

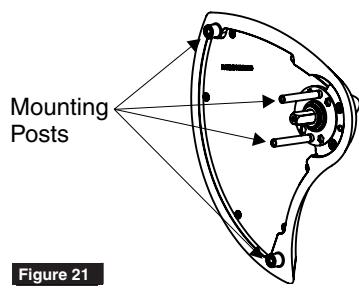

- 8. With lever in "up" position, align mounting posts on adapter plate with holes in lockbody and install outside trim assembly. (Figure 21)
NOTE:
AFTER OUTSIDE TRIM IS INSTALLED, ROTATE LEVER TO MAKE SURE SPINDLE IS ENGAGED IN LOCK.
9. Insert spindle into lockbody on inside of door. (Figure 22)
Outside Trim

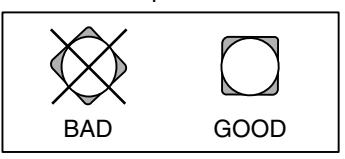

Use Correct Spindle Orientation
Figure 22
BHSS Trim
ML2000 Series Mortise Lock
Installation Instructions
3 BHSS Trim Installation
Mount Escutcheon

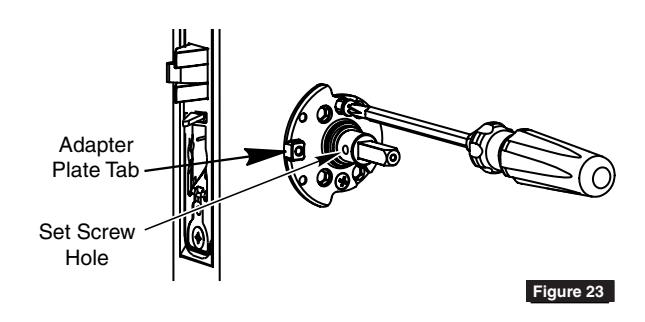

10. Slide inside adapter plate over spindle and install using two adapter plate mounting screws. (Figure 23)
NOTE:
MAKE SURE ADAPTER PLATE TAB AND SET SCREW HOLE ARE FACING LOCK FRONT PRIOR TO INSTALLING SCREWS.
Inside Trim Assembly Installation
11. With lever in "up" position, install inside trim assembly.
NOTE:
AFTER TRIM IS INSTALLED, ROTATE LEVER TO MAKE SURE SPINDLE IS ENGAGED IN LOCK.

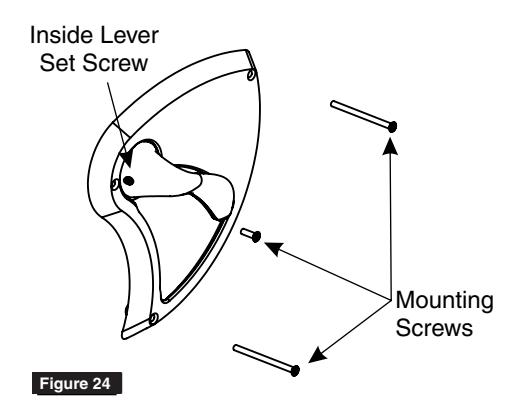

- 12. Tighten inside lever set screw. (Figure 24)
- 13. Install three escutcheon mounting screws through inside escutcheon. (Figure 24)
Inside Trim
Lock Front Installation

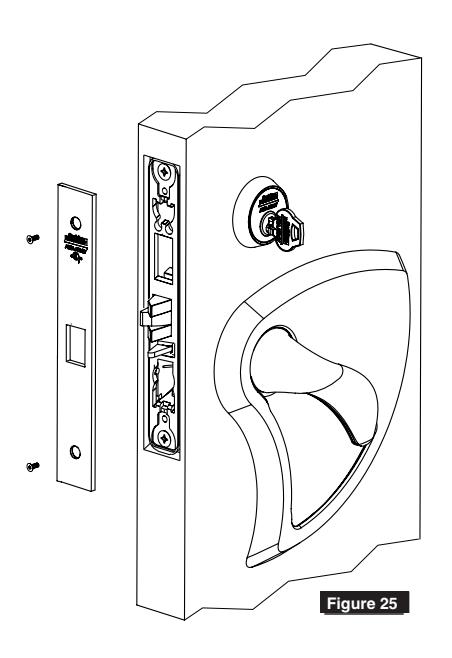

14. Install lock front using two front screws. (Figure 25)
4
Turn-Piece Installation
Turn-Piece Installation
1. Install turn-piece loosely using two turnpiece mounting screws. (Figure 26)
NOTE:
MAKE SURE LOCK IS UNLOCKED AND TURN-PIECE IS ROTATED TOWARDS LATCH. (FIGURE 27)
2. Adjust location of turn-piece on door until turn-piece rotates easily, then fully tighten mounting screws.
5
Coin-Turn Installation
1. Install coin-turn using two surface mount screws. (Figure 28)
