Notes:

• 1. Backset is measured from centerline of bevel which is centerpoint of door thickness.
• 2. Door prep with 2-3/4" (70) backset meets ANSI/BHMA A156.115 for steel doors and A156.115W for wood doors plus through bolt holes shown.
• 3. Dimensions given in inches and (mm).
• 4. 1-1/4" strike lip suits frame for 1-3/4" thick door.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL OR METHOD OF CONSTRUCTION.

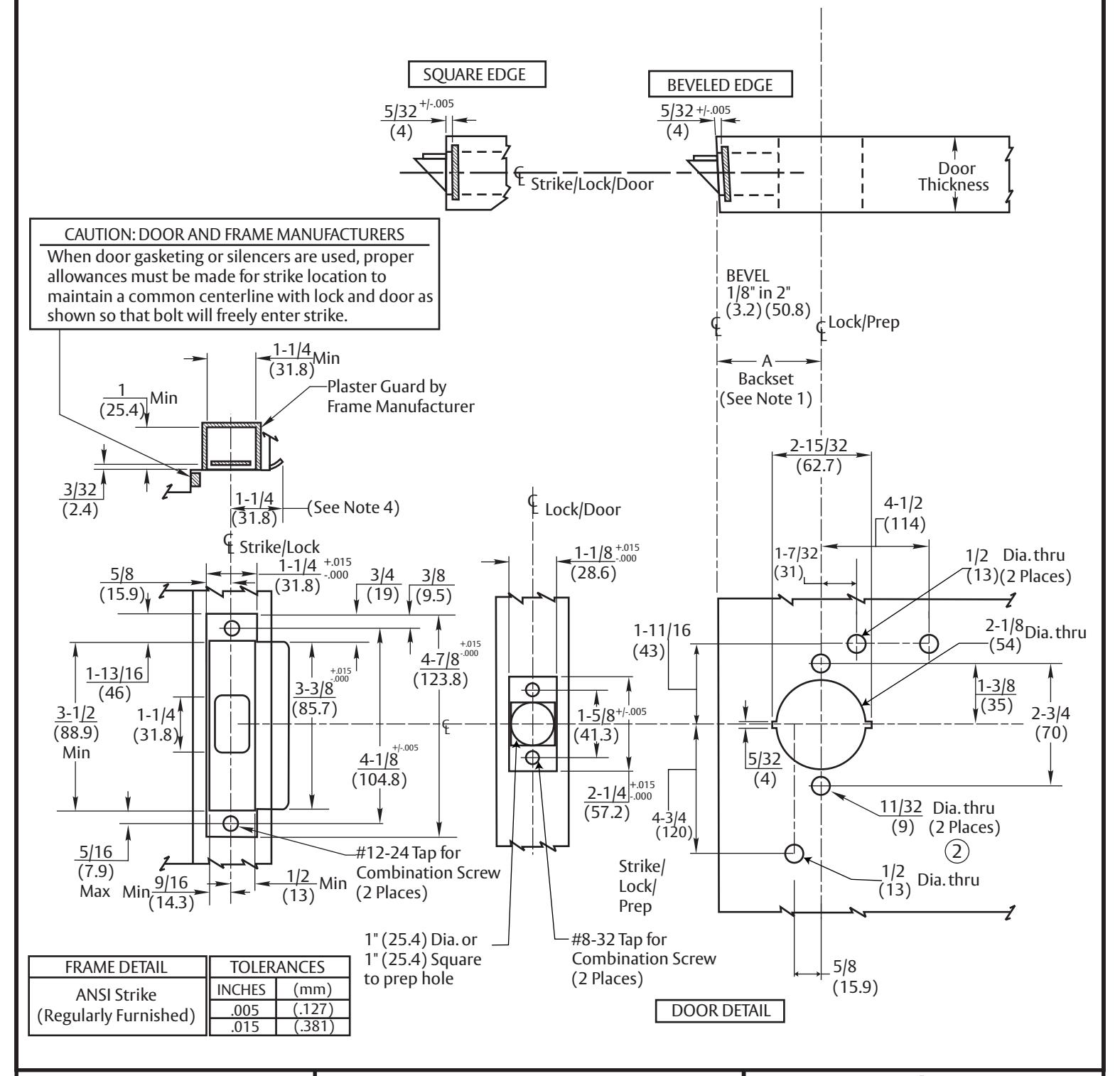

CLX3300 Series with BHSS Trim Cylindrical Lock All Functions

Corbin Russwin ASSA ABLOY

www.corbinrusswin.com

SUPERSEDES T31261-1 DO NOT SCALE DRAWING TEMPLATE NUMBER T31261-2 SHEET DATE 03/23
