Installation Instructions
3357T Auxiliary Control
Used With ED3457 Pull Trim, Vertical Rod Exit Devices
FM375 (06/14)
In U.S.: Corbin Russwin, Inc. 225 Episcopal Road Berlin, CT 06037 USA
www.corbinrusswin.com
ASSA ABLOY In Canada: ASSA ABLOY Door Security Solutions Canada 160 Four Valley Drive Vaughan, Ontario, Canada L4K4T9
Technical Product Support: Phone: 888-607-5703
www.assaabloy.ca
1. DESCRIPTION
Auxiliary Control works with ED3457 Surface Vertical Rod Exit Devices. The Auxiliary Control enables the night latch function for pull trim applications.
| 3357T |
Key unlocks turn; turn retracts latch/
Turn relocks when key is removed |
|---|
2. OPERATION

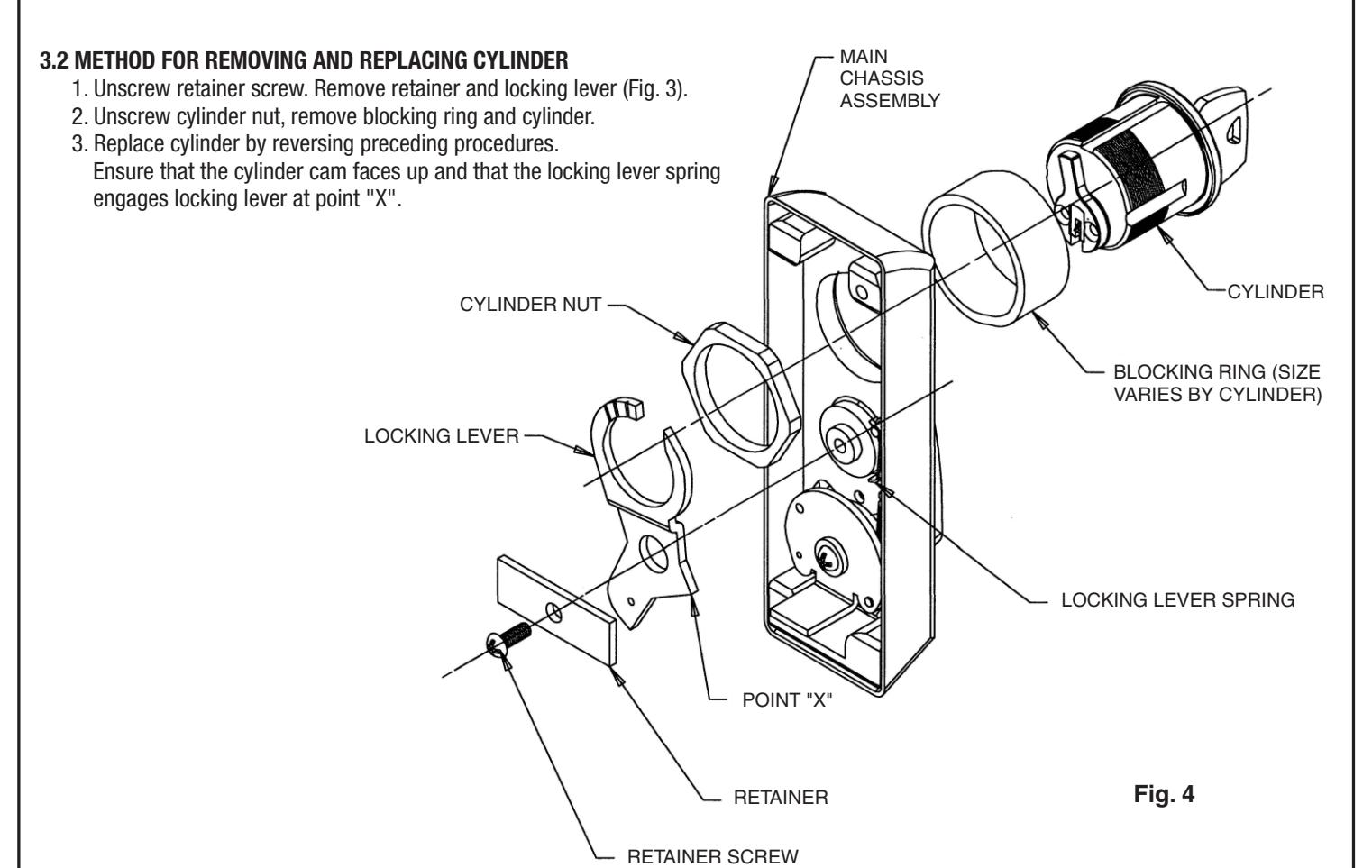

The Auxiliary Control is operative only when the key is in the cylinder and turned. See Fig. 4 for cylinder replacement information.
3. INSTALLATION INSTRUCTIONS

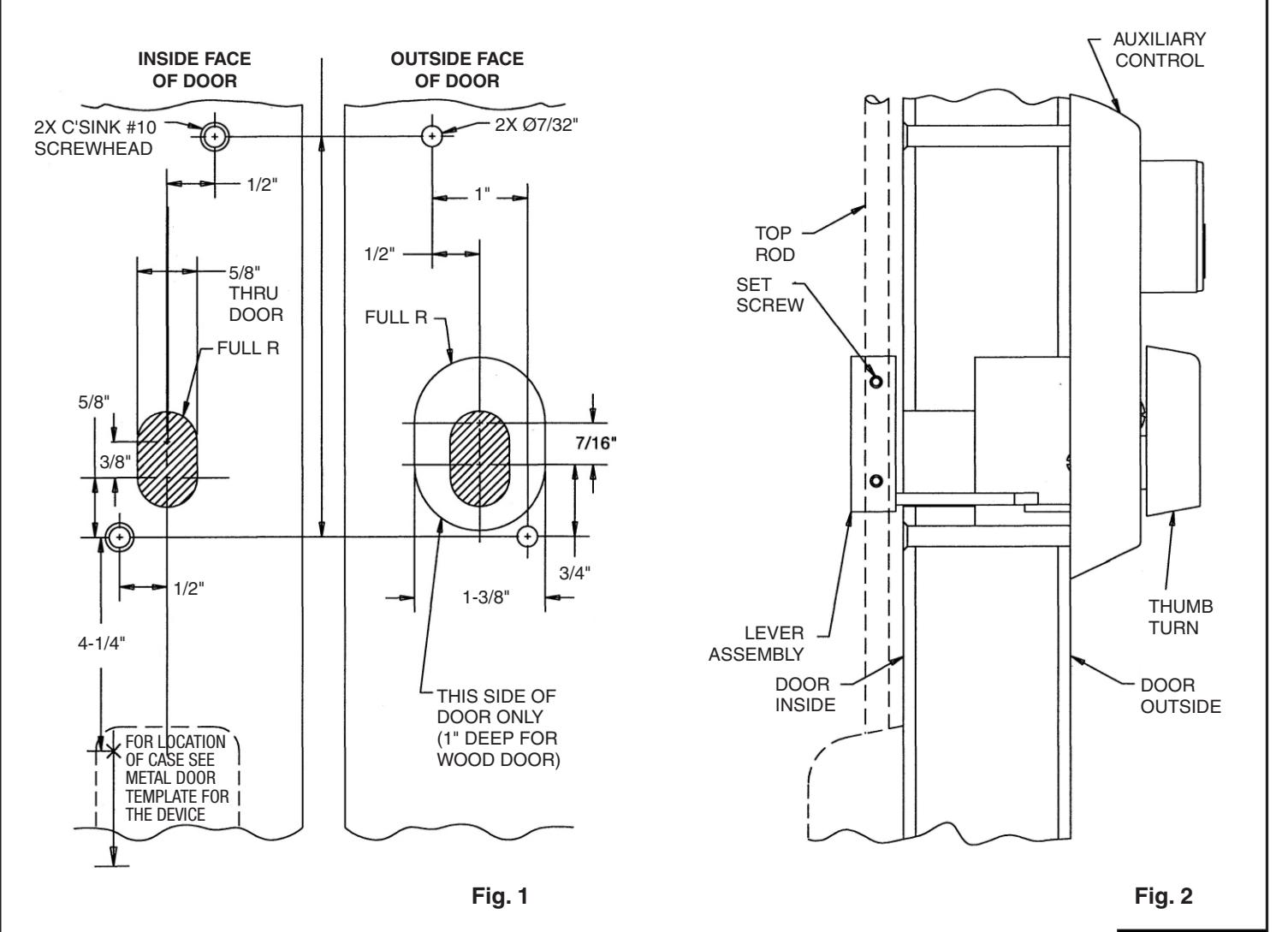

- 1. Using the exit device instructions, prepare the door for the exit device (Fig. 1).
- 2. Prepare the door for the Auxiliary Control (Fig. 2).
- 3. Slide top rod into lever assembly and position lever as indicated (Fig. 2). Adjust top rod according to exit device instructions.
- 4. Mount Auxiliary Control to door using two through screws provided.
- 5. Set lever on top rod so that thumb turn retracts top and bottom rod; then tighten set screws securely.
Installation Instructions
3357T Auxiliary Control
Used With ED3457 Pull Trim, Vertical Rod Exit Devices

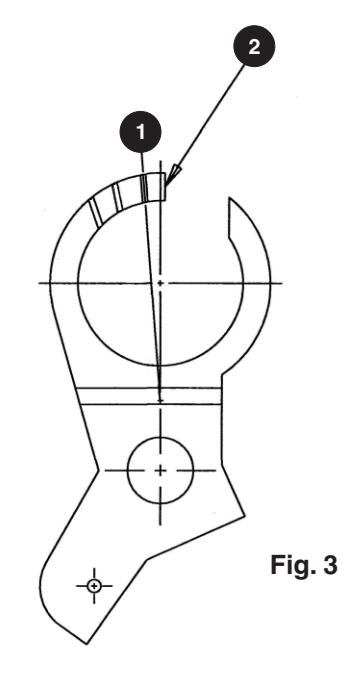

3.1. LOCKING LEVER BREAK OFF POINTS (IF NECESSARY)
- 1. Used for Sargent #41 Cylinder.
- 2. Use as is for Corbin Russwin, 70-306; 72-306; and 73-306 Best cylinder functions. Schlage Cylinder size #41.
