Installation Instructions

Corbin Russwin Angle Bracket Kit for ED2000, ED3000, ED5000, PED4000, and PED5000 Series Narrow and Wide Stile M…_FM264 image

Angle Bracket Kit M96 Option

Recommended for header configuration with less than 3" (76mm) of mounting surface.

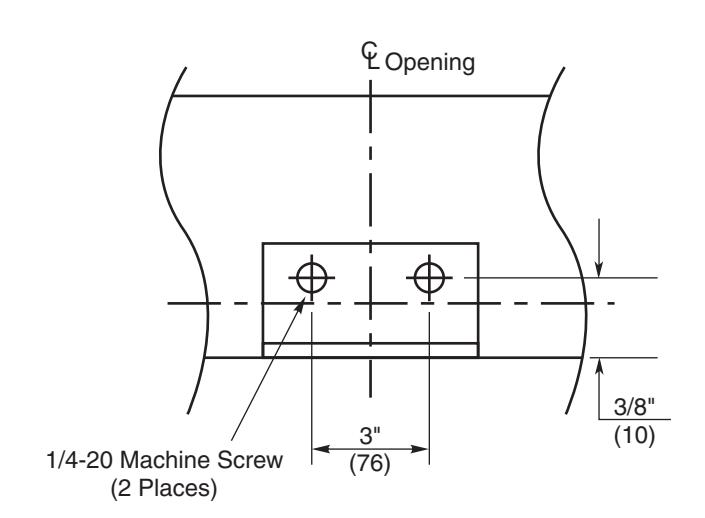

Corbin Russwin Angle Bracket Kit for ED2000, ED3000, ED5000, PED4000, and PED5000 Series Narrow and Wide Stile M…_FM264 image

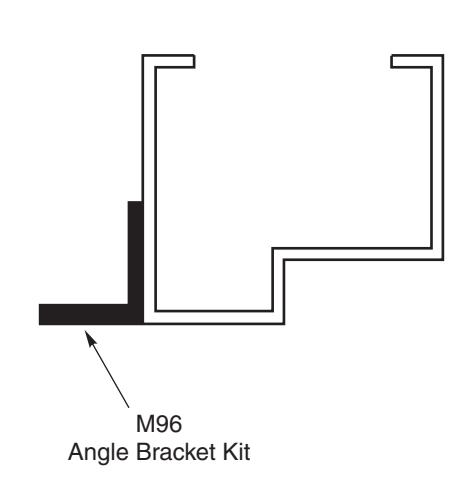

Corbin Russwin Angle Bracket Kit for ED2000, ED3000, ED5000, PED4000, and PED5000 Series Narrow and Wide Stile M…_FM264 image

Note:

Do not scale.

Dimensions given in inches (mm).
