Installation Instructions

Active Indicator Retrofi t Kit

PED4000 / PED5000 Series Exit Devices

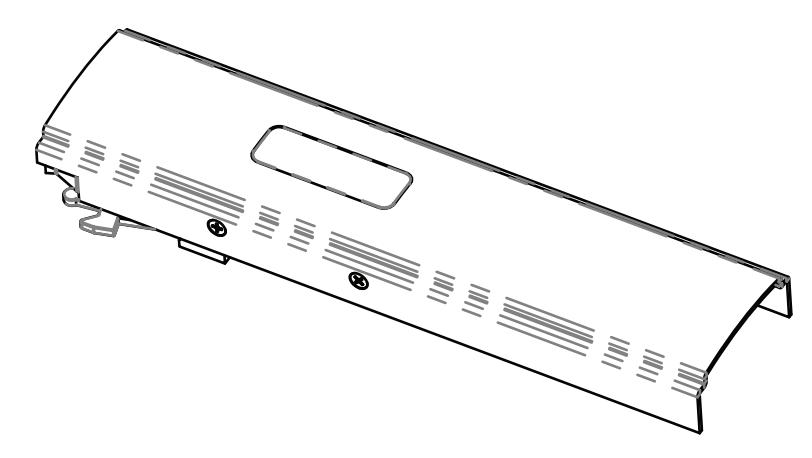

Active Indicator Insert View

WARNING

This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www. P65warnings.ca.gov.

For installation assistance contact Corbin Russwin 1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

Copyright © 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.

WARNING

Attention Installer: Improper installation may result in damage to the product and void the factory warranty.

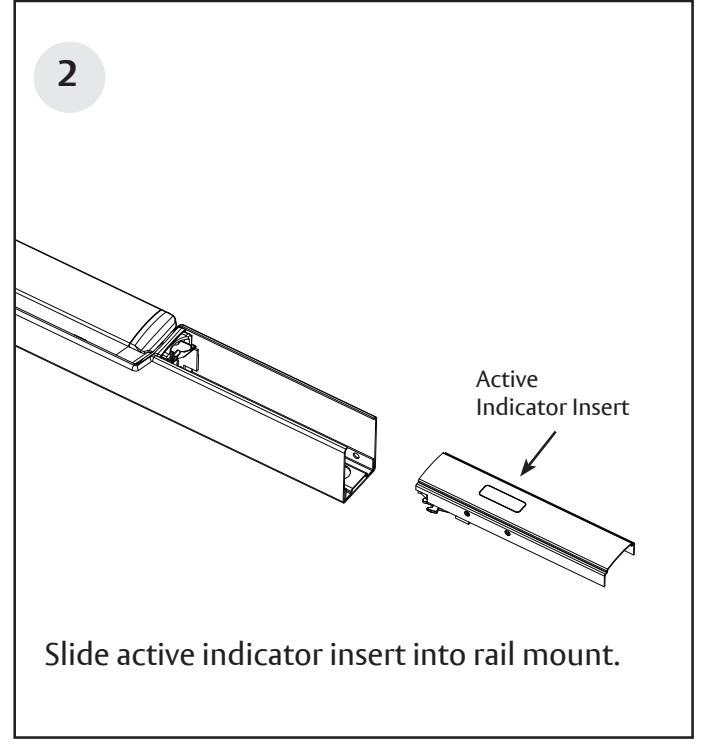

Connect by (A) compressing the bar, and (B) sliding insert in. Position (C) & (D) to connect as shown. Push insert to snap onto the dogging slope.

Test the function by (A) compressing the bar, and (B) turning the key clockwise to engage dogging. The bar should stay compressed. "Unlocked" should display.

Test the function by (A) turning the key counter clockwise to release dogging. (B) The bar should return to the uncompressed position on its own. "Locked" should display.
