Notes:

• 1. Backset is measured from centerline of bevel which is centerpoint of door thickness.
• 2. 1-1/8 (28.6) strike lip suits frame for 1-3/4 (44.5) thick door, lip will vary for other door thicknesses.
• 3. Dimensions given in inches and (mm).
• 4. (*) Outside. For Fire Door Only.
• ① 5. Wire raceway required for running remote power. Wire raceway must connect 1" (25.4) Wire Access Hole to the hinge edge power source.

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

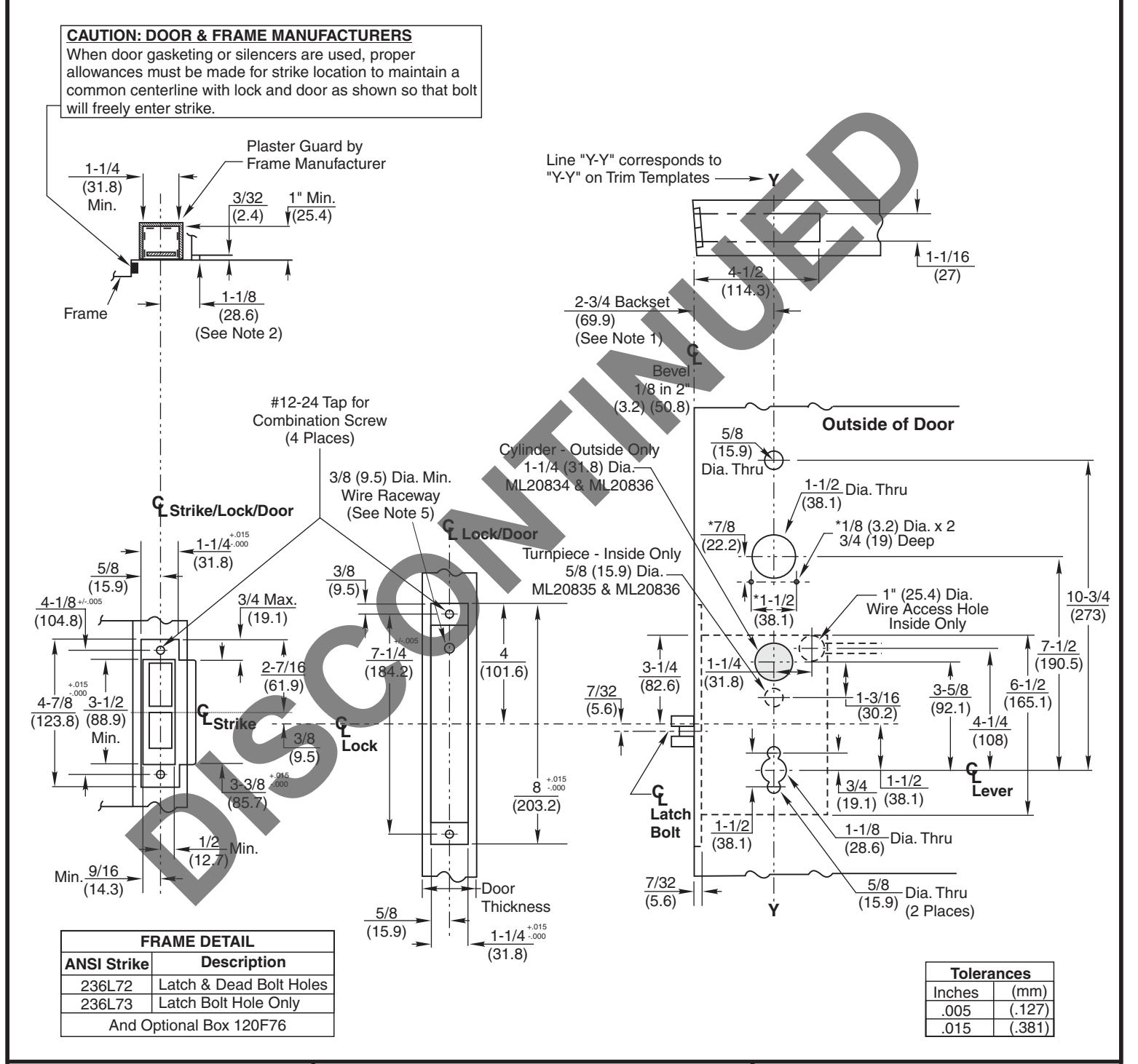

Access 800 TCWI1 ML20800 Series Mortise Lock

1

Corbin Russwin 2°

ASSA ABLOY

www.corbinrusswin.com

SUPERSEDES T31178 DO NOT SCALE DRAWING TEMPLATE NUMBER T31178-1
