Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • Dimensions are in inches (mm).
  • 3. LHR door shown. Preparation is typical for both door hands.
  • 4. Provide adequate structural support to maintain door integrity during operation.
  • 5. Prepare mounting holes when installing trim.
  • 6. Dimensions given about a centerline are symmetrical.
  • 7. Unspecified radius 1/8 maximum.
  • 8. Provide 1/2 (13) Dia. raceway for motor wire harness from inside door face at Hole "A" to top of trim cutout on outside door face. Wire harness shall be free to run thru interior of door without obstructions. See Sheet 2 for raceway reference angles.
  • 9. For Wire raceway and DPS raceway requirements, see Sheet 2.

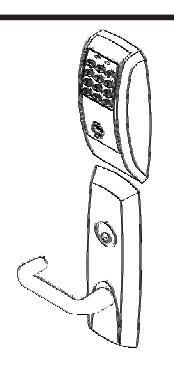

Corbin Russwin Access 800 TCW1 Trim Template_T31181 image on page 1

9800 TCWI1 Series

Note: Lever design prefix does not

Corbin Russwin Access 800 TCW1 Trim Template_T31181 diagram on page 1

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

9833 & 9834 (Access 800® TCWI1 Series Trim) ED5000 Series

SecureBolt™, Rim and Mortise Exit Devices Wood or Composite Door Preparation

assa abloy

www.corbinrusswin.com

SUPERSEDES DO NOT SCALE DRAWING T31181-1 TEMPLATE NUM T31181-2 1 of 2 03-18

Notes:

10. For remote power provide 3/8" (9.5) diameter minimum raceway through door from hinge edge power source to Hole "A".

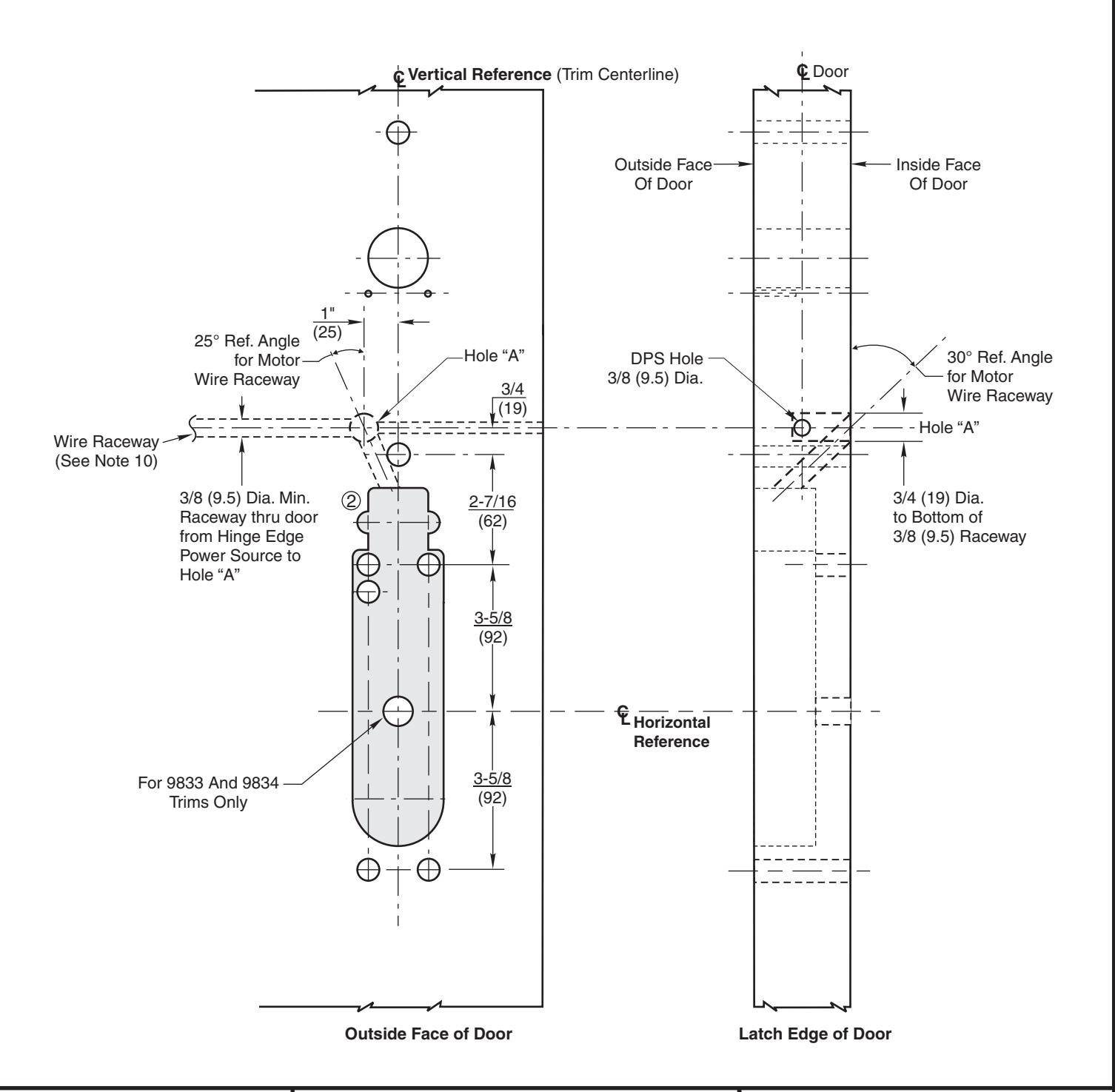

Remote Power Supply Door Position Switch & Motor Wire Raceway Details

Corbin Russwin Access 800 TCW1 Trim Template_T31181 diagram on page 2

RESPONSIBILITY

DOOR AND FRAME MANUFACTURERS ARE RESPONSIBLE FOR PROVIDING ADEQUATE CONSTRUCTION OR REINFORCEMENTS FOR PROPER INSTALLATION OF HARDWARE SHOWN. ALL ARCHITECTURAL BUILDERS HARDWARE MUST BE INSTALLED ON PROPERLY REINFORCED DOORS AND FRAMES, REGARDLESS OF TYPE, MATERIAL, OR METHOD OF CONSTRUCTION.

9833 & 9834 (Access 800 TCWI1 Series Trim) ® ED5000 Series

SecureBolt™, Rim and Mortise Exit Devices Wood or Composite Door Preparation

ASSA ABLOY

www.corbinrusswin.com

SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER DATE SHEET T31181-1

2 of 2 T31181-2 03-18
