Notes:

  • This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Dimensions are in inches (mm).
  • 3. LHR door shown. (RHR opposite)
  • 4. Provide adequate structural support to maintain door integrity during operation.
  • 5. Prepare mounting holes when installing trim.
  • 6. Dimensions given about a centerline are symmetrical.
  • 7. Unspecified radius 1/8 maximum.
  • Provide 1/2 (13) Dia. raceway for wire harness from inside door face at Hole "A" to top of trim cutout on outside door face. Wire harness shall be free to run thru interior of door without obstructions.

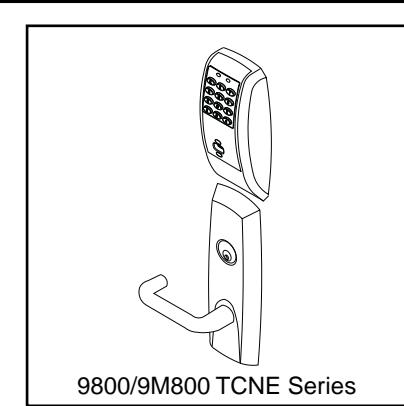

Corbin Russwin Access 800 TCNE Trim Template_T31003 image on page 1

Corbin Russwin Access 800 TCNE Trim Template_T31003 diagram on page 1

Access 800<sup>®</sup> TCNE Series Trim 9803, 9805, 9810 & 9830 SecureBolt and Rim 9M803, 9M805, 9M810 & 9M830 Mortise for ED5000N Series Exit Devices Wood or Composite Door Preparation

Russwin

ASSA ABLOY DO NOT SCALE DRAWING

SUPERSEDES

TEMPLATE NUMBER T31003

003 DATE 9-07
