Corbin Russwin ASSA ABLOY

Stand Alone Access Control

Corbin Russwin Access 800 AC2 Sell Sheet_45013 diagram on page 1

Corbin Russwin Access 800 AC2 Sell Sheet_45013 image on page 2

Stand Alone Access Control

Applications

Access 800® AC2 is ideal for

Corporate campuses Educational facilities Healthcare facilities Government facilities

System Requirements

Software:

› SoloPlusTM Access Control Management Software
› Microsoft Windows based operating system (XP and later) or Windows Server (2003, 2008)*

Hardware:

› VGA monitor
› CD Rom drive
› Instruction manual (included)
› Data Transfer Device or PDA (refer to catalog for compatible models)
* Refer to catalog or call 800-810-WIRE for specific information on compatible operating systems

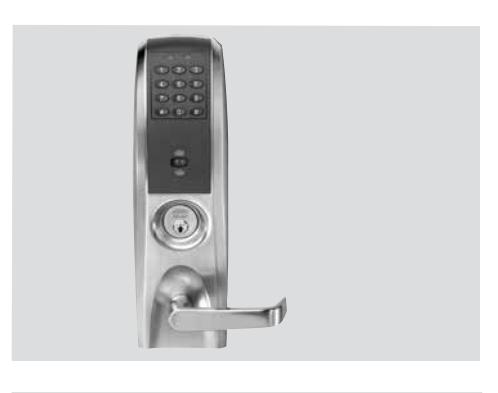

Lock Features:

› Supports 2,000 users
› Provides 2,000 event audit trail
› Credential support:
- HID® 125 kHz prox - RF fob

Corbin Russwin Access 800 AC2 Sell Sheet_45013 image on page 2

› Available with keypad for dual factor authentication
› Programmable via keypad, data transfer device (DTD), or PDA*
› Available with key override
› Supports multiple types of users, such as extended, temporary, or supervisory
› Available in mortise lock, cylindrical lock, or exit device configurations
* DTD required for Windows Vista and later

SoloPlus Features:

› Database supports up to 20,000 users
› Ability to access information from multiple PCs through the use of a system manager
› Ability to view, print, and save reports
› User-friendly task list facilitates initial set up

Complete your system with:

› 712F089 Enrollment Station for enrolling HID® 125 kHz proximity cards, up to 40 bit format, into SoloPlus software
› WM800 Wall Proximity Reader (hard powered) for openings that require an auto operator

Available with Muséo® and Vineyard™ levers

Corbin Russwin Access 800 AC2 Sell Sheet_45013 image on page 2

ElectroLynx®

As part of their promise to provide innovative, fast and effective high security solutions to their customers, ASSA ABLOY Group companies offer ElectroLynx®, a universal quick-connect system that simplifies the electrification of the door opening.

ElectroLynx® is a registered trademark of ASSA ABLOY Inc.

MicroShield®

Corbin Russwin Access 800 AC2 Sell Sheet_45013 image on page 2

As part of their promise to provide innovative solutions to their customers, certain ASSA ABLOY Group brands offer the MicroShield® technology, a silver-based antimicrobial coating designed to inhibit the growth of bacteria.

MicroShield® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company.

Corbin Russwin and Design®, Access 800®, and Muséo® are registered trademarks of Corbin Russwin, Inc., an ASSA ABLOY Group company. Vineyard™ is a trademark of Corbin Russwin, Inc., an ASSA ABLOY Group company. These materials are protected under US copyright laws. Other products' brand names may be trademarks or registered trademarks of their respective owners and are mentioned for reference purposes only. All contents current at time of publication. Corbin Russwin, Inc., an ASSA ABLOY Group company reserves the right to change availability of any item in this sell sheet, its design, construction, and/or its materials. © Copyright 2007, 2010-2011 Corbin Russwin, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Corbin Russwin, Inc. is prohibited.

HID is a registered trademark of HID Global Corporation. The Genuine HID Technology logo is a trademark owned and licensed by HID Global.

Corbin Russwin Architectural Hardware 225 Episcopal Road, Berlin, CT 06037 Phone 800-543-3658 Fax 800-447-6714 corbinrusswin.com
