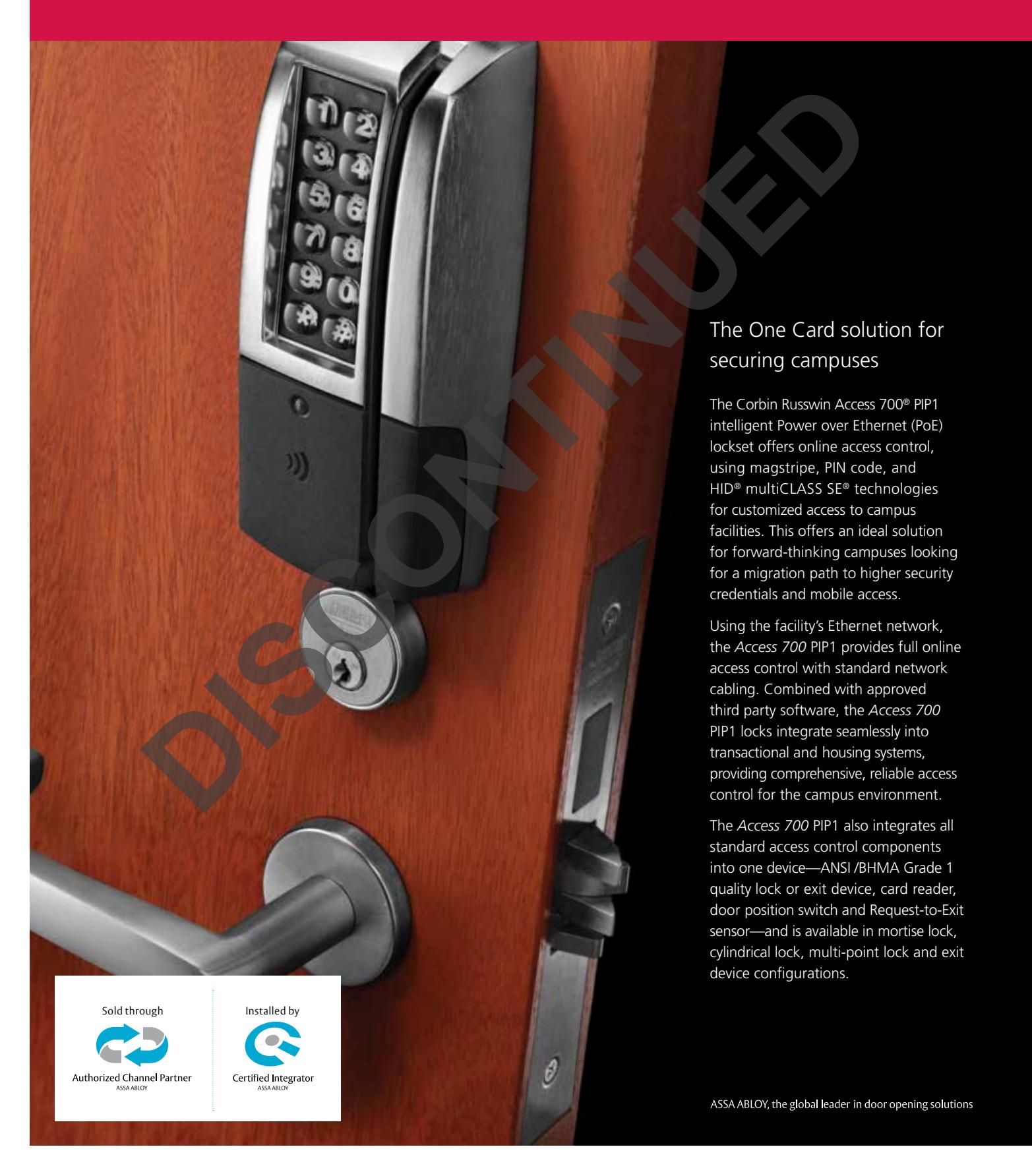

PoE Campus Access Control

Corbin Russwin Access 700 PIP1 PoE Sell Sheet_45166 diagram on page 1

Corbin Russwin Access 700 PIP1 PoE Sell Sheet_45166 image on page 2

Corbin Russwin Access 700 PIP1 PoE Sell Sheet_45166 image on page 2

Specifications and System Requirements

Credential Support:

  • › Magstripe
  • › 2.4 GHz credentials:
  • Secure Identity Object™ (SIO) on Mobile IDs (Bluetooth Smart)
  • › 13.56 MHz credentials:
    • iCLASS®
    • iCLASS SE® (SIO-enabled)
  • iCLASS® Seos®
  • SIO on MIFARE® Classic
  • SIO on MIFARE DESFire® EV1
  • MIFARE Classic
  • MIFARE DESFire EV1
  • NFC-enabled mobile phones
  • › 125 kHz credentials:
    • HID Prox®

Technical Specifications:

› Conforms to IEEE 802.3af Class 1 standard, requiring less than 3.84 watts

Software:

› Compatible with approved third party access control software

Security:

› AES 128-bit encryption

EAC Regulatory Compliance*:

  • › UL294 6th Edition
  • › CAN/ULC S319
  • › BHMA A156.25
  • * Excludes multi-point locks

Corbin Russwin Access 700 PIP1 PoE Sell Sheet_45166 image on page 2

Corbin Russwin Access 700 PIP1 PoE Sell Sheet_45166 image on page 2

Available through Authorized Channel Partners only. Contact your ASSA ABLOY Door Security Solutions sales consultant for details.

For more information or a personal demonstration, contact PERSONA at 1-800-481-8464 or visit www.intelligentopenings.com

PoE Campus Access Control

Features Benefits

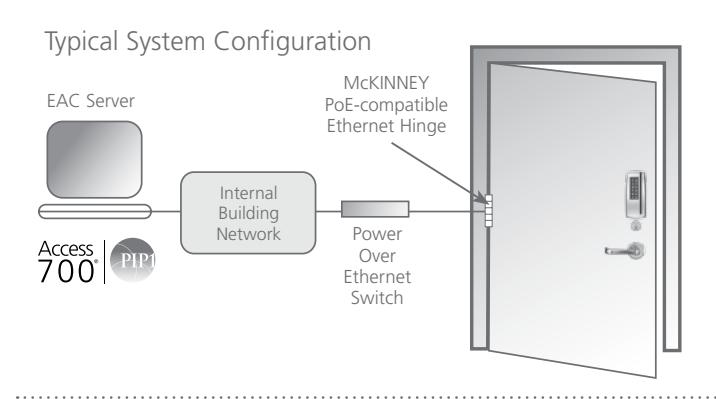

Utilizes IEEE 802.3af PoE-enabled network
infrastructure for both power and data 		• Streamlines the installation process, reducing costs
• Eliminates the need for any proprietary equipment
• Enables real-time communication
HID® multiCLASS SE® Technology with
magnetic stripe reader 		• Provides heightened security
• Supports:
– Multiple credential technologies, offering easy
migration from magnetic stripe or other contactless
cards to higher security credentials or consolidation
of mixed credentials
– HID Mobile Access® powered by Seos®, for both iOS®
and Android™ devices
Keypad option available • Two-factor authentication offers enhanced security
Intelligence built into lock for local
decision making 		• Lock operates regardless of network status
• Supports up to 2,400/10,000 users*
• Provides a 10,000 event transaction history/audit trail
Privacy button • Allows shelter in place/local lockdown
• Enables privacy capabilities for applications such as
residence halls
Reduced energy consumption and product
sustainability measures 		• Uses up to 76% less power in standby mode than traditional
access control installations, as certified by GreenCircle
• Reuses existing network infrastructure
• Streamlined system architecture provides improved reliability
and reduces materials
Integrated ANSI/BHMA Grade 1 hardware,
available in cylindrical lock, mortise lock, multi
point lock, and exit device configurations 		• Flexibility to support various openings
• Assurance of high quality hardware
Available with a wide range of finishes and
decorative levers 		• Blends into any environment seamlessly
• Designed to meet the requirements of designers and architects
* Contact your access control system manufacturer for more information

* Contact your access control system manufacturer for more information
