Corbin Russwin Access 700 PAC1 Campus Access Control Sell Sheet_45098 image on page 1

Corbin Russwin ASSA ABLOY

Campus Access Control

Corbin Russwin Access 700 PAC1 Campus Access Control Sell Sheet_45098 diagram on page 1

Corbin Russwin Access 700 PAC1 Campus Access Control Sell Sheet_45098 image on page 2

Corbin Russwin Access 700 PAC1 Campus Access Control Sell Sheet_45098 image on page 2

Applications

Access 700® PAC1 is ideal for Campuses:

Residence Halls

Restrooms

Dining Halls

Libraries

Book Stores

Leisure Centers

Sports Halls

Classrooms

Laboratories

Specifications

  • › High security offline battery-operated lock
  • › Complete lockset with on-board memory
  • 1,200 users supported per lock
  • Audit trail for last 700 events
  • › Available with:
  • keypad and magnetic stripe
  • magnetic stripe only
  • high coercivity
  • › 3-hour UL fire rating for maximum security and safety
  • › ADA-compliant

Available through Authorized Channel Partners only. Contact your ASSA ABLOY Door Security Solutions sales consultant for details.

For more information or a personal demonstration, contact PERSONA at 1-800-481-8464 or visit www.intelligentopenings.com

Campus Access Control

Features & Benefits

  • Integrated ANSI/BHMA Grade 1 hardware, available in cylindrical lock, mortise lock, multi-point lock, and exit device configurations
  • Seamless database integration and software interface with enterprise, transaction and housing systems
  • Interrogate individual locks and perform system upgrades and changes quickly and easily
  • Issue cards at multiple locations, allowing administrators to issue new or replacement keycards in seconds, from anywhere on campus
  • Ability to customize access, by defining unlimited access, extended-hours access or no access, by user and facility, down to the individual lock
  • One Card system uses a single keycard to provide user identification, building access, and parking privileges, allowing for personalized security at its best
  • Time-control user access allows campuses to limit entry to specific areas and hours, controlling who goes where and when
  • Ability to audit event histories allows you to interrogate locks, review event history, and prevent false accusations of entry and theft
  • Uses six AA batteries for easy, cost-effective deployment and maintenance
  • Available with MicroShield® antimicrobial finish
  • Available in a variety of finishes with multiple lever options, including standard as well as Muséo® and Vineyard™ decorative levers, for a consistent design aesthetic throughout your facility

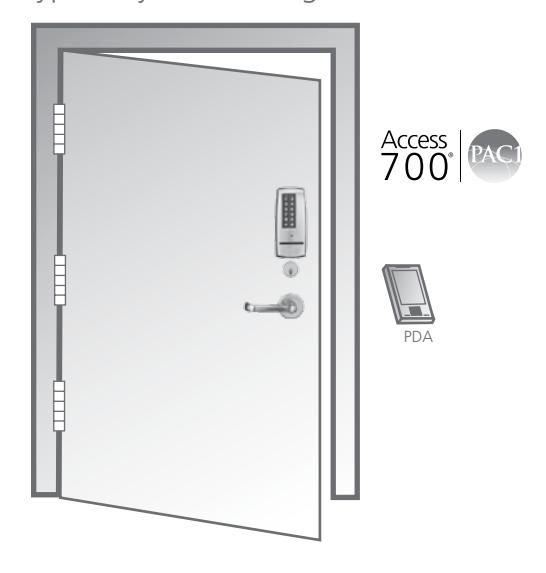

Typical System Configuration

Corbin Russwin Access 700 PAC1 Campus Access Control Sell Sheet_45098 image on page 2
