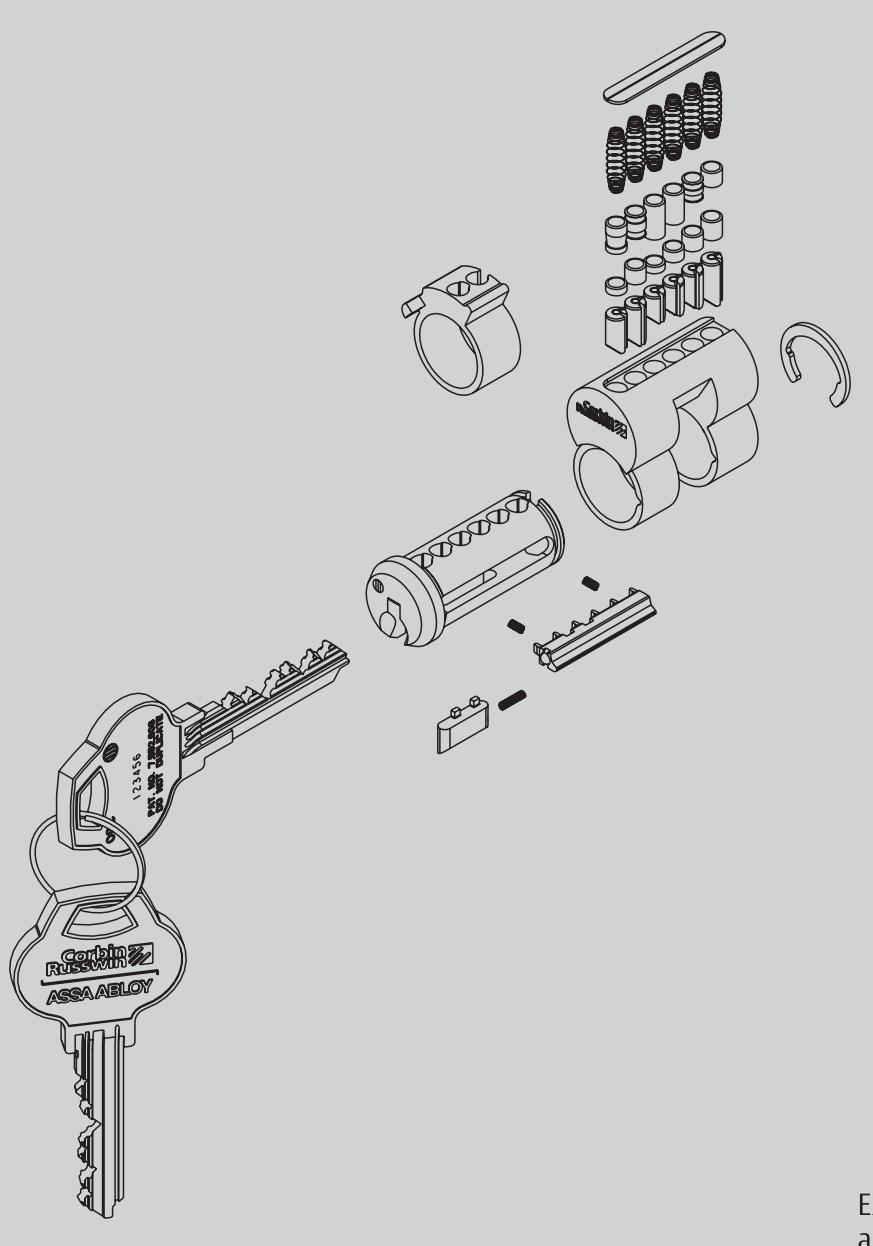

Key Systems Technical Manual

The Access 3 Advantage 3
AP Key Cuts 4
AS & AHS Key Cuts 5
Key Cutting Machines 6
Pinning Formula 7
Construction Master Keying 8
Visual and Concealed Key Control 9
Access 3 Pin Kits 10
Cylinder Parts: AP - 3500 Series Rim 11
Cylinder Parts: AS - 3600 Series Rim 12
Cylinder Parts: AHS - 3700 Series Rim 13

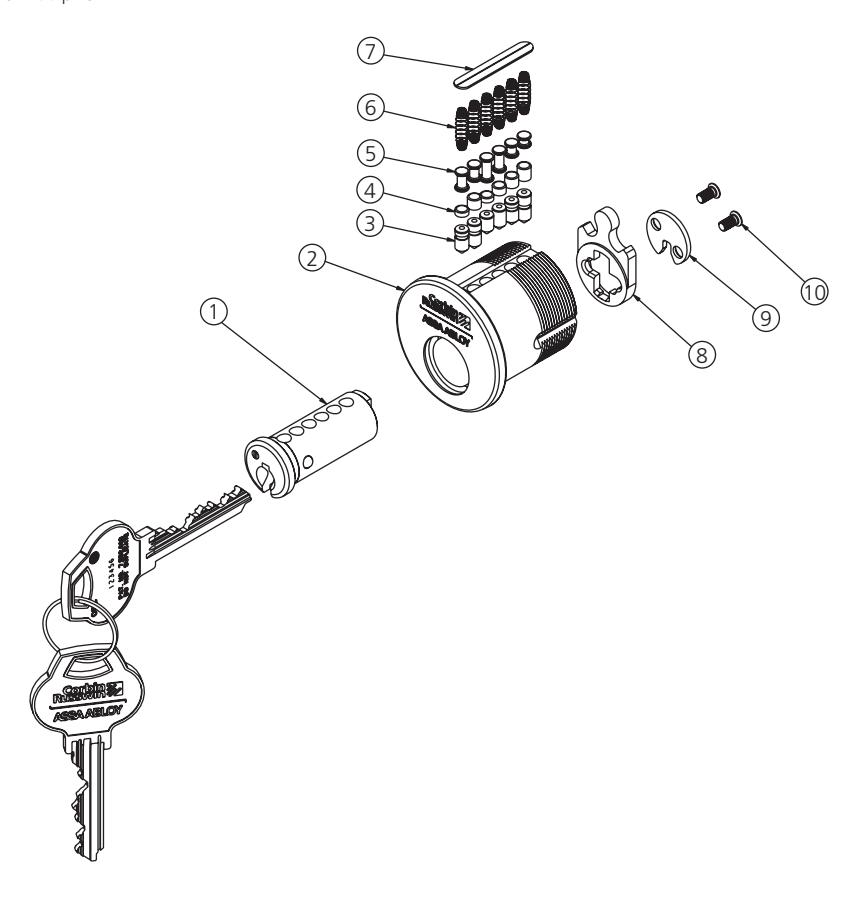

Cylinder Parts: AP - 1500 Series Mortise 14

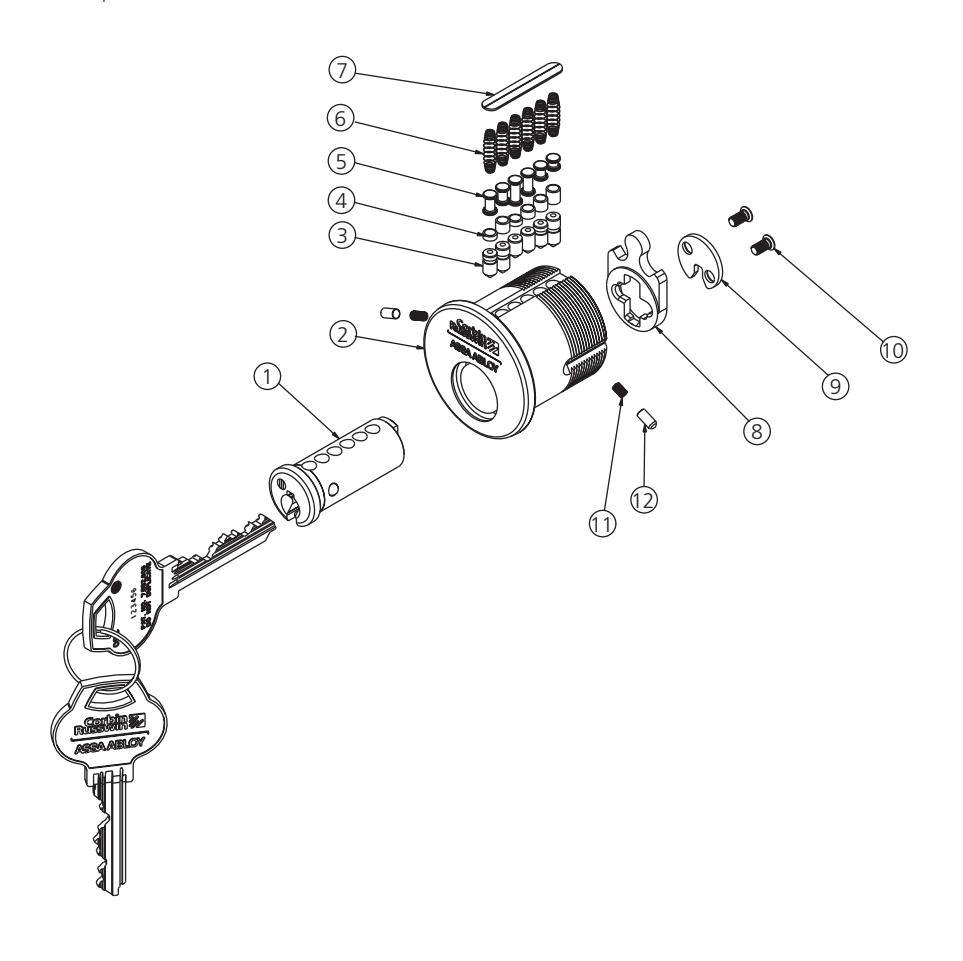

Cylinder Parts: AP - 1501 Series Mortise Hotel 15
Cylinder Parts: AS - 1600 Series Mortise 16
Cylinder Parts: AS - 1601 Series Mortise Hotel 17
Cylinder Parts: AHS - 1700 Series Mortise 18
Cylinder Parts: AHS - 1701 Series Mortise Hotel 19
Cylinder Parts: AP - 8500 Series LFIC Cores 20
Cylinder Parts: AS - 8600 Series LFIC Cores 21

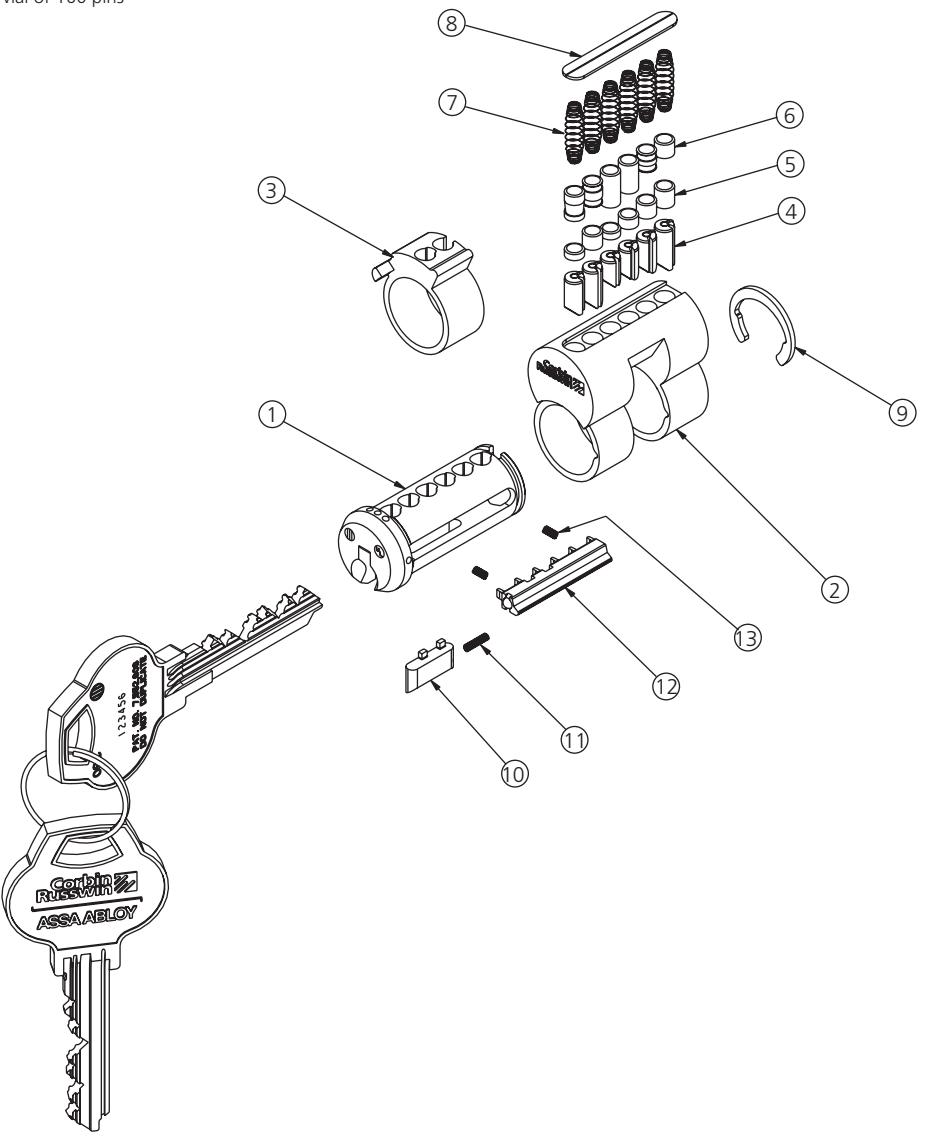

Cylinder Parts: AHS - 8700 Series LFIC Cores 22
Cylinder Parts: AP - 2500 Series Component (Key-in-Knob/Lever) 23
Cylinder Parts: AP - 2501 Series Component (Key-in-Knob/Lever) Hotel 24
Cylinder Parts: AS - 2600 Series Component (Key-in-Knob/Lever) 25
Cylinder Parts: AS - 2601 Series Component (Key-in-Knob/Lever) Hotel 26
Cylinder Parts: AHS - 2700 Series Component (Key-in-Knob/Lever) 27
Cylinder Parts: AHS - 2701 Series Component (Key-in-Knob/Lever) Hotel 28

The Access 3 Key System

The patented Access 3 system from Corbin Russwin provides the right level of security for each opening in your facility. Three levels of ANSI/BHMA Grade 1 protection, from patented keyway to UL437 certified, secures every opening. A common key for all three levels of security enhances key control and simplifies administrative procedures. Key blanks are controlled through authorized distribution and geographical protection is available. Available for mortise, rim, component and Large Format Interchangeable Core (LFIC) cylinders, Corbin Russwin offers the right Access 3 level of protection for every door in your facility.

Benefits

• Patent protection from unauthorized key duplication through 2027
• New keyway family protects system integrity from legacy systems
• Keys are significantly stronger than competitive systems
• User-friendly design with minimal components provides easy field service
• Availability in all existing Corbin Russwin cylinder types provides costeffective upgrade for Corbin Russwin facilities
• Bump resistance standard for all AP, AS and AHS cylinders.

Access 3 (AP) features a utility patented keyway. These cylinders easily retrofit into existing hardware and are appropriate for most applications. The keys for AP can only open AP cylinders. AP cylinders are protected against bumping.

Access 3 (AS) builds on the utility patented keyway of AP and adds patented side bar locking with unique angled bottom pins that provide end users with geographical exclusivity. Cylinders provide protection against bumping and picking. Because of its superior key control and patent protection until 2027, AS products are recommended for use in conjunction with AHS for new installations or when retrofitting systems, including large format interchangeable core systems.

Access 3 (AHS) combines the utility patented keyway and side bar locking with unique angled bottom pins that provide end users with geographical exclusivity, and adds certification to UL437. They are classified as high security because of their superior resistance to physical attack and protection against unauthorized key duplication. Because of its superior key control, patent protection until 2027, and physical strength, we recommend AHS products for new highsecurity installations or when retrofitting systems, including large format interchangeable core systems. Corbin Russwin also offers anti-vandal and high security locksets that complement AHS cylinders for those openings most vulnerable to attach.

IMPORTANT: Corbin Russwin Access 3 Product is available with a "0" cut depth for AP systems only and it is not available for use in an AS or AHS security level product. If there is a possibility to elevate the AP system to AS or AHS, any master keying expansion requests should be discussed with a Corbin Russwin Key Records team specialist.

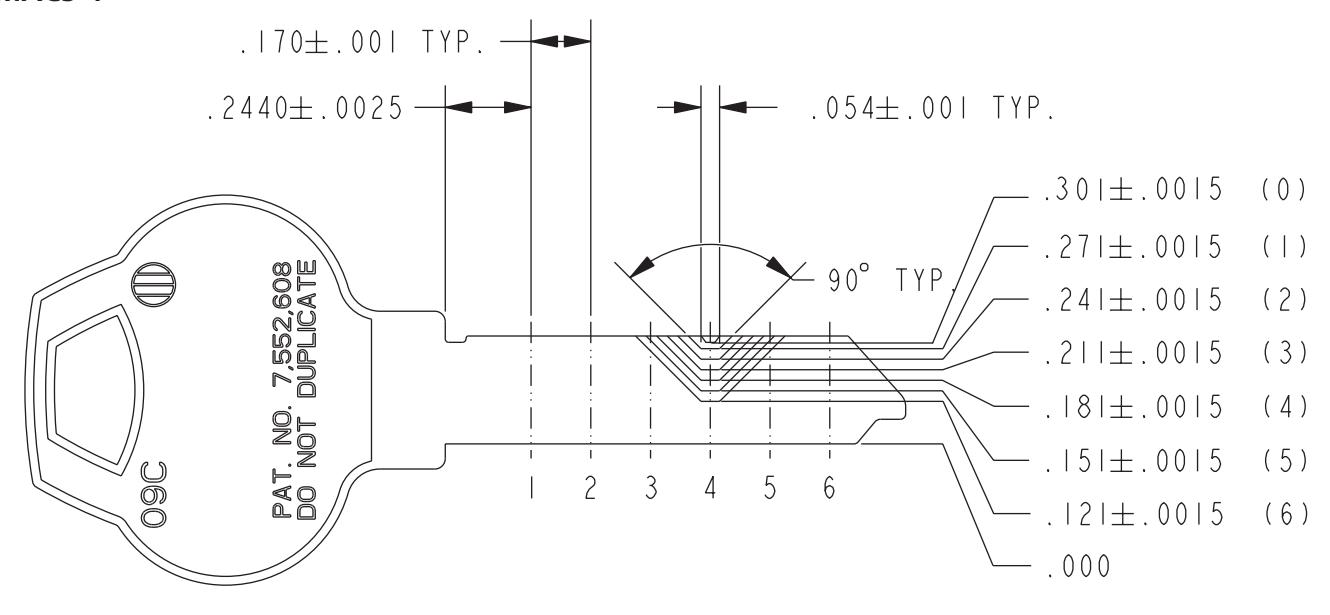

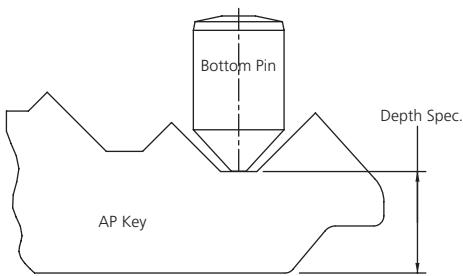

AP cuts from Bow to Tip MACS-4

Bottom Pins (BP)

Size #	Length	Part No.
0	.201	763F002213
1	.231 763F002243
2	.261	763F002273
3	.291 763F002303
4	.321 763F002333
5	.351	763F002363
6	.381	763F002393

Top Pin - Bump Resistant

Size #	Length Part No.
BR #4	0.120	763F027120
BR #5	0.150	763F027150
BR#6	0.180	763F027180
BR#7	0.210	763F027210
BR#8	0.240	763F027240
BR#9	0.270	763F027270
BR#10	0.300	763F027300

Master Pins (MP)

Length	Part No.
.030	763F012030
.060	763F012060
.090	763F012090
.120	763F012120
.150	763F012150
.180	763F012180

CMK Wafer

Description	Part No.
CMK	763F072

Build Up Pins (BU)

Length	Part No.
0.030	763F012030
0.060	763F012060
0.090	763F012090
0.120	763F012120
0.150	763F012150
N/A	N/A
0.210	763F012210
0.240	763F012240
0.270	763F012270
0.300	763F012300
0.330	763F012330
0.360	763F012360

Top Pin (TP)

Size #	Length	Part No.
Top #1	0.030	763F012030
Top #2	0.060	763F012060
Top #3	0.090	763F012090
Top #4	0.120	763F012120
Top #5	0.150	763F012150
Top #6	0.180	763F012180
Top #7	0.210	763F012210
Top #8	0.240	763F012240
Top #9	0.270	763F012270
Top #10	0.300	763F012300

AS & AHS cuts from Bow to Tip

Dimensions shown are to theoretical intersection

Bottom Pin (BP)

Size #	Length	Part No.
BP #1-C	0.231	763F052243
BP #1-L	0.231	763F042243
BP #1-R	0.231	763F062243
BP #2-C	0.261	763F052273
BP #2-L	0.261	763F042273
BP #2-R	0.261	763F062273
BP #3-C	0.291	763F052303
BP #3-L	0.291	763F042303
BP #3-R	0.291	763F062303
BP #4-C	0.321	763F052333
BP #4-L	0.321	763F042333
BP #4-R	0.321	763F062333
BP #5-C	0.351	763F052363
BP #5-L	0.351	763F042363
BP #5-R	0.351	763F062363
BP #6-C	0.381	763F052393
BP #6-L	0.381	763F042393
BP #6-R	0.381	763F062393

Master Pins (MP)

Size #	Length	Part No.
1	.030	763F012030
2	.060	763F012060
3	.090	763F012090
4	.120	763F012120
5	.150	763F012150

CMK Wafer

Part No.
763F072

Build Up Pins (BU)

Size #	Length	Part No.
BU #1	0.030	763F012030
BU #2	0.060	763F012060
BU #3	0.090	763F012090
BU #4	0.120	763F012120
BU #5	0.150	763F012150
BU #6	N/A	N/A
BU #7	0.210	763F012210
BU #8	0.240	763F012240
BU #9	0.270	763F012270
BU #10	0.300	763F012300
BU #11	0.330	763F012330

Top Pin (TP)

Size #	Length	Part No.
Top #1	0.030	763F012030
Top #2	0.060	763F012060
Top #3	0.090	763F012090
Top #4	0.120	763F032120
Top #5	0.150	763F037150
Top #6	0.180	763F037180
Top #7	0.210	763F032210
Top #8	0.240	763F032240
Top #9	0.270	763F032270

HPC Machines

Access 3 level	Key Cutting Machine	Card #	DSD#	Cutter #	Jaw
AP	1200 (Blitz)	C391	N/A	CW-90MC	B
AS/AHS	1200 (Blitz)	C392	N/A	CW-1012	DJ-1
AP	Code Max	N/A	DSD391	CW-90MC	B
AS/AHS	Code Max	N/A	DSD392	CW-1012	DJ-1
AP	Tiger Shark	N/A	DSD391	CW-90MC	STD
AS/AHS	Tiger Shark	N/A	DSD392	CW-1012	DJ-1S
AP	Blue Shark	N/A	DSD391	CW-90MC	STD
AS/AHS	Blue Shark	N/A	DSD392	CW-1012	DJ-1S

ITL Machines

Access 3 level	Key Cutting Machine	Vice Insert	Cutter #
AP	9700A	3	CW-1012
AS/AHS	9700A	3M3	CW-1012

Framon Machines

Access 3 level	Key Cutting Machine	Kit*
AP	KX-1	KX-DG104
AS/AHS	KX-1	KX-DG204

^* Each kit comes complete with cam, cutter, and vice insert

Fixed Core Component Cylinders

Large Format Interchangable Core Cylinders

Fixed Core and LFIC Chambers 1, 2, 5 & 6

Top Pin (TP) 10 MINUS Plug Total

Master Pin
(MP) =
Deepest Minus
Shallowest
Operating Cut

Bottom Pin (BP) = Shallowest Operating Cut

Example

Master Key	1	2	3	4	6	4
Change Key		4	5	2	0	2

Top Pin (TP)	7	6	5	6	4	6
Master Pin (MP)	2	2	2	2	6	2
Bottom Pin (BP)	1	2	3	2	0	2

Plug Total (MP + BP)

LFIC Control Chambers 3 & 4

Top Pin (TP) 13 MINUS Plug Total and Build Up Pin

Build Up Pin (BU) = Control Cut PLUS 6 MINUS Plug Total

Example

Control Key	1	5	5	4	3	2
Master Key	1	5	2	6	3	2
Change Key	3	1	4	3	1	5
Top Pin (TP)	7	5	2	3	7	5
Build Up Pin (BU)	x	x	7	4	x	x
Master Pin (MP)	2	4	2	3	2	3
Bottom Pin (BP)	1	1	2	3	1	2

Master Pin (MP) =

Deepest MINUS Shallowest Operating Cut

Bottom Pin (BP) = Shallowest Operating Cut

Plug Total (MP + BP)

Instructions (Fixed Core and LFIC Chambers 1,2, 5 & 6)

Bottom Pin = shallowest operating cut

Master Pin (if required) = Deepest minus shallowest operating cut

(Plug Total = Bottom Pin + Master Pin)

Top Pin = 10 MINUS Plug Total

Note: "0" depth of cut only available for AP key systems. Not used with AS or AHS.

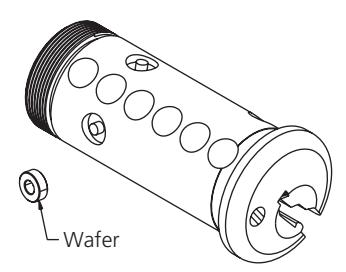

Lost Ball/Wafer Construction Cylinder

• 1. In the construction lost wafer chamber use #5 cut for TMK and #6 cut for CMK
• 2. CMK cuts for the rest of the chambers are same as TMK cuts
• 3. "Donut" wafer is added in construction lost wafer chamber above bottom pin

Instructions (LFIC Control Chambers 3 & 4)

Bottom Pin = shallowest operating cut

Master Pin (if required) = Deepest minus shallowest operating cut

(Plug Total = Bottom Pin + Master Pin)

Build Up Pin = Control Cut plus 6 minus Plug Total

Top Pin = 13 MINUS (PLUG TOTAL + BUILD UP PIN)

Note: "0" depth of cut only available for AP key systems. Not used with AS or AHS.

Construction Master Keying (Lost/Wafer Design) for AP, AS & AHS

Access 3 cylinders when master keyed are offered with the convenience of construction keying when specified. This is not recommended with AHS key systems or any system where strict key control and management is enforced.

Construction keying simplifies the process when the building gets turned over. With this feature, the construction master keyed cylinder is master keyed with a special construction feature in one of the chambers. The plug is prepped in two places along both sides of the same chamber containing the construction feature. This allows the construction master key to be used during the construction phases.

It is highly recommended that all construction keys are collected and accounted for once the project is complete to protect the integrity of the key system.

Construction master keys are to be specified and ordered separately.

Construction master keyed orders will have all change keys shipped separately from hardware.

Construction master keying is not available with hotel function cylinders or large format interchangeable cores. If construction keying is required for LFIC, specify temporary construction keyed cores.

Cutaway cylinder showing construction master key being used, putting the wafer below the shear line while key is turned. Note the two empty "donut" holes on either side of the chamber.

Change key inserted in cylinder putting the wafer above the shear line.

As change key rotates, construction wafer falls into "donut" hole in the side of plug. Only construction wafer will fall due to hole through its center. This voids the construction feature.

Change key rotated to position for extraction.

Construction key inserted after wafer is trapped. Driver now extends into plug chamber. Construction key if used will not rotate.

For Multiplex Masterkey Systems (CR keyway family shown)

Nickel silver Key Bow type 38 • Ordering example AP Key Blank: XXXX-6PIN-38-AP • Ordering example AS/AHS Key Blank: XXXX-6PIN-38-AS60 Key Section Code (blind code for keyway designation) Key Set Symbol System Registry Number Front Side Back Side Keyway Keyway

• • Ordering example Hotel Emergency key (Mortise Cylinders) example: Keyway-6Pin-38-E2-AP
• • Ordering example Hotel Emergency key (Key-in-lever cylinders) example: Keyway-6Pin-38-E6-AS60

Back Side Stamping & Options

• Key set (VKC1), standard unless otherwise indicated
• System registry number will be stamped on master keys unless otherwise indicated
• Concealed key control (CKC2) available on cylinders
• Visual Key Control VKC2 is available for level 1 (AP) only.
• Visual Key Control VKC3 and Concealed Key Control CKC3 not available

PK-30-AP Pinning Kit

The PK-30-AP Kit is used to pin AP fixed and LFIC cylinders. The heavy duty steel kit prevents pins from mixing. The kit includes:

• 100 each of bottom pins sizes 0-6
• 100 each of build up pins 1-12
• 100 each of master pins sizes 1-6
• 100 each of top pins sizes 1-10
• 100 each of bump resistant pins sizes 4-10
• 100 tumbler springs part number 763F617
• 100 sidebar spring part number 756F817
• 50 #2-56 screw part number 756F847
• 25 KIK/KIL spring cover part number 756F858
• 25 each mortise/rim, LFIC spring cover part number 756F722
• 10 Sidebar (8500 CYL.) part number 763F565
• Tweezer part number 239F368
• Access 3 Key decoder part number 756F937

PK-30-MASTER Master Pinning Kit

The PK-30-MASTER "Master Kit" includes all pins needed to re-pin AP, AS and AHS cylinders.

The kit includes:

• 100 each of AP bottom pins sizes 0-6
• 100 each of angled bottom pins sizes 1-6 (L-C-R)
• 100 each of build up pins sizes 1-12
• 100 each of master pins sizes 1-6
• 100 each of top pins sizes 1-10
• 100 each of bump resistant pins sizes 4-10
• 100 tumbler springs part number 763F617
• 50 #2-56 screw part number 756F847
• 25 KIK/KIL spring cover part number 756F858
• 25 mortise/rim, lfic spring cover part number756F722
• 10 sidebar part number756F807
• 10 sidebar (8500 CYL.) part number 763F565
• 100 sidebar spring part number756F817
• 50 slider spring part number756F797
• Tweezer part number 239F368
• Access 3 Key decoder part number756F937

Note: CT-4 follower (size .509) may be ordered separately.

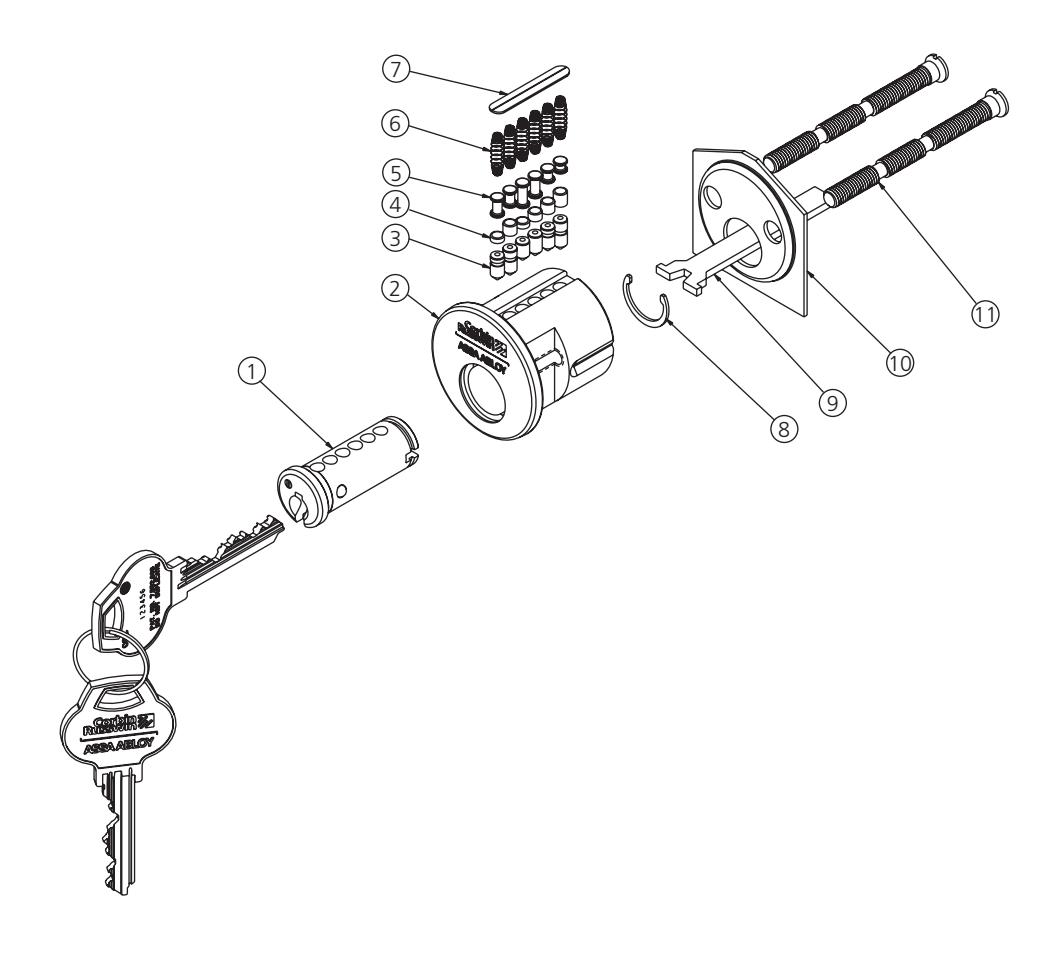

Item	Description	Part Number	Comments
1	Plug SA	758K04MSECFIN	Plug finishes: 606, 626
	Shell SA (Not Slotted)	758F11MFIN	Shell finishes: 605, 606, 611, 612, 613, 618, 619,
2	Shell SA (Slotted)	758F14MFIN	622, 625, 626 , 629, 630, 722, BSP, WSP
3	Bottom Pins	763F002
4	Master & Build Up Pins	763F012
5	Top Pins	763F027
6	Tumbler Springs	763F617
7	Spring Cover	756F722
8	Plug Retainer	333F997
9	Tailpiece	See Access 3 Catalog
10	Mounting Plate	253F758
11	Mounting Screws	See Access 3 Catalog

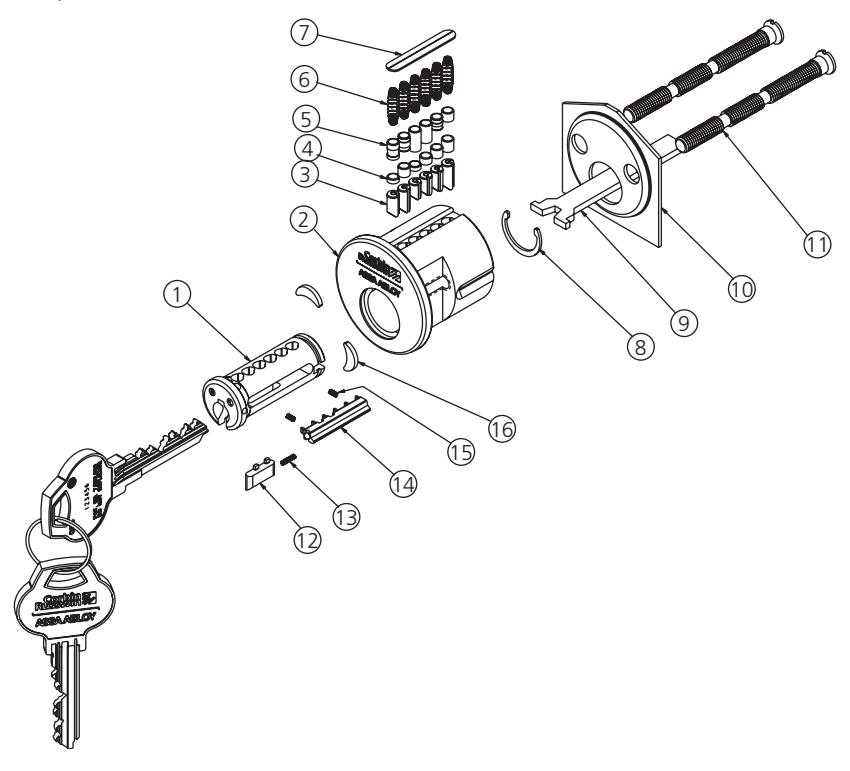

Item	Description	Part Number	Comments
1	Plug	758K02MSECFIN	Plug finishes: 606, 626
	Shell SA (Not Slotted)	758F12MFIN	Shell finishes: 605, 606, 611, 612, 613, 618, 619,
2	Shell SA (Slotted)	758F15MFIN	622, 625, 626, 629, 630, 722, BSP, WSP
	Bottom Pins (L)	763F042
3	Bottom Pins (C)	763F052
	Bottom Pins (R)	763F062
4	Master & Build Up Pins	763F012
5	Top Pins	763F03M
6	Tumbler Springs	763F617
7	Spring Cover	756F722
8	Plug Retainer	333F997
9	Tailpiece	See Access 3 Catalog
10	Mounting Plate	253F758
11	Mounting Screws	See Access 3 Catalog
12	Slider	756F732-756F782
13	Slider Springs	756F797
14	Side Bar	756F807
15	Side Bar Springs	756F817

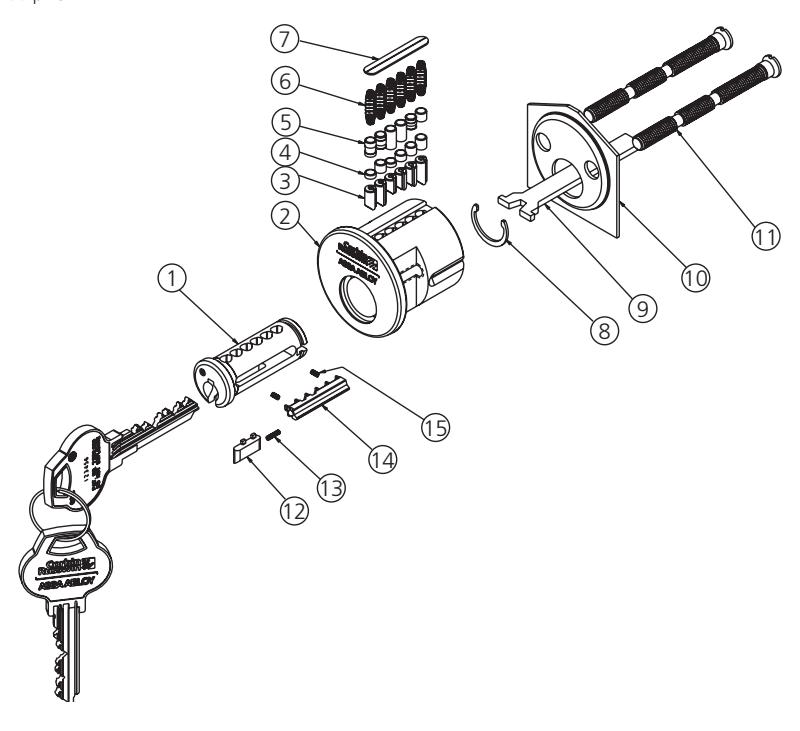

Item	Description	Part Number	Comments
1	Plug SA	758K03MSECFIN	Plug finishes: 606, 626
	Shell SA (Not Slotted)	758F13MFIN	Shell finishes: 605, 606, 611, 612, 613, 618, 619,
2	Shell SA (Slotted)	758F16MFIN	622, 625, 626, 629, 630, 722, BSP, WSP
3	Bottom Pins (L)	763F042
	Bottom Pins (C)	763F052
	Bottom Pins (R)	763F062
4	Master & Build Up Pins	757F012
5	Top Pins	757F03M
6	Tumbler Springs	763F617
7	Spring Cover	756F722
8	Plug Retainer	333F997
9	Tailpiece	See Access 3 Catalog
10	Mounting Plate	253F758
11	Mounting Screws	See Access 3 Catalog
12	Slider	756F732-756F782
13	Slider Springs	756F797
14	Side Bar	756F807
15	Side Bar Springs	756F817
16	Security Plate	756F828

Item	Description	Part Number	Cylinder Length	Comments
		757K64MSECFIN	1-1/4"
		757K74MSECFIN	1-3/8"
1	Plug SA	757K84MSECFIN	1-1/2"	Plug finishes: 606, 626
		757K94MSECFIN	1-3/4"
		757F68MFIN	1-1/4"
		757F78MFIN	1-3/8"	Shell finishes: 605, 606, 611, 612,
	2 Shell SA	757F88MFIN	1-1/2"	613, 618, 619, 622, 625, 626, 629,630, 722, BSP, WSP
		757F98MFIN	1-3/4"
3	Bottom Pins	763F002
4	Master & Build Up Pins	763F012
5	Top Pins	763F027
6	Tumbler Springs	763F617
7	Spring Cover	756F722
8	Cam	See Access 3 Catalog
9	Cam Retainer	756F838
10	Screws	756F847

AP - 1501 Series Mortise Hotel Technical Manual

Item	Description	Part Number	Cylinder Length	Comments
1	Plug SA	758K59MSECFIN	1-1/4"	Plug finishes: 606, 626
2	Shell SA	758F46MFIN	1-1/4"	Shell finishes: 606, 606, 611, 612, 613, 618, 619, 622, 625, 626, 629, 630, 722, BSP, WSP
3	Bottom Pins	763F002
4	Master Pins	763F012
5	Top Pins	763F027
6	Tumbler Springs	763F617
7	Spring Cover	756F722
8	Cam	See Access 3 Catalog
9	Cam Retainer	756F838
10	Screws	756F847
11	Blocking Pin Springs	026F757
12	Blocking Pins	197F527

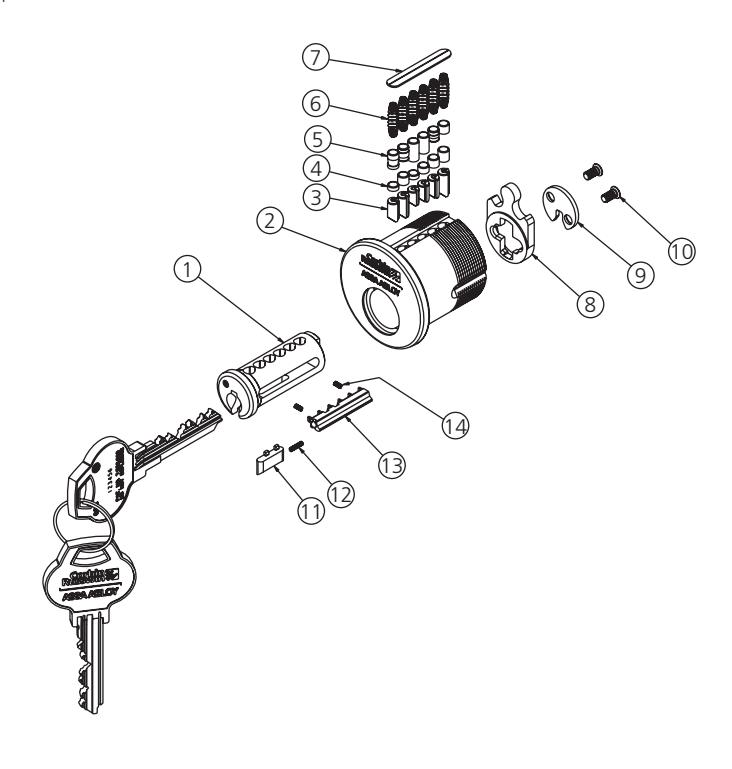

Item	Description	Part Number	Cylinder Length	Comments
		757K62MSECFIN	1-1/4"
		757K72MSECFIN	1-3/8"
1	Plug	757K82MSECFIN	1-1/2"	Plug finishes: 606, 626
		757K92MSECFIN	1-3/4"
		757F69MFIN	1-1/4"
		757F79MFIN	1-3/8"	Shell finishes: 605, 606, 611, 612,
2	Shell SA	757F89MFIN	1-1/2"	613, 618, 619, 622, 625, 626, 629, 630, 722, BSP, WSP
		757F99MFIN	1-3/4"
	Bottom Pins (L)	763F042
3	Bottom Pins (C)	763F052
	Bottom Pins (R)	763F062
4	Master & Build Up Pins	763F012
5	Top Pins	763F03M
6	Tumbler Springs	763F617
7	Spring Cover	756F722
8	Cam	See Access 3 Catalog
9	Cam Retainer	756F838
10	Screws	756F847
11	Slider	756F732-756F782
12	Slider Springs	756F797
13	Side Bar	756F807
14	Side Bar Springs	756F817

Item	Description	Part Number	Cylinder Length	Comments
1	Plug	758K57MSECFIN	1-1/4"	Plug finishes: 606, 626
2	Shell SA	758F47MFIN	1-1/4"	Shell finishes: 606, 606, 611, 612, 613, 618, 619, 622, 625, 626, 629, 630, 722, BSP, WSP
	Bottom Pins (L)	763F042
3	Bottom Pins (C)	763F052
	Bottom Pins (R)	763F062
4	Master Pins	763F012
5	Top Pins	763F03M
6	Tumbler Springs	763F617
7	Spring Cover	756F722
8	Cam	See Access 3 Catalog
9	Cam Retainer	756F838
10	Screws	756F847
11	Slider	756F732-756F782
12	Slider Spring	756F797
13	Side Bar	756F807
14	Side Bar Spring	756F817
15	Blocking Pin Springs	026F757
16	Blocking Pins	197F527

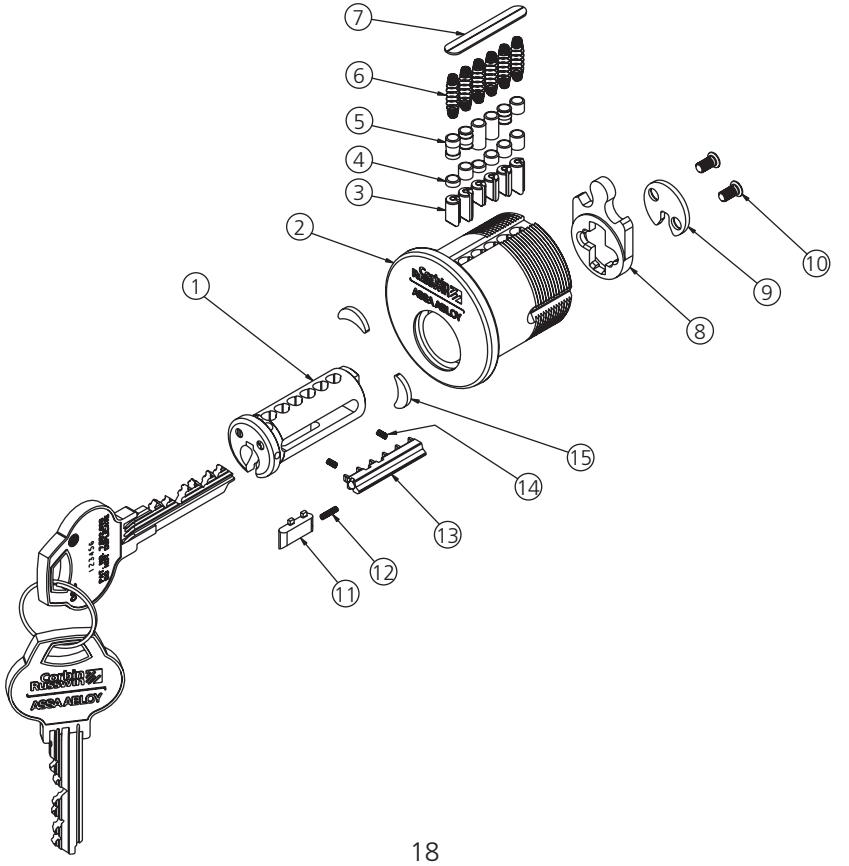

Item	Description	Part Number	Cylinder Length	Comments
		757K63MSECFIN	1-1/4"
		757K73MSECFIN	1-3/8"
1	Plug SA	757K83MSECFIN	1-1/2"	Plug finishes: 606, 626
		757K93MSECFIN	1-3/4"
		757F70MFIN	1-1/4"
		757F80MFIN	1-3/8"	Shell finishes: 605, 606, 611, 612,
2	Shell SA	757F90MFIN	1-1/2"	613, 618, 619, 622, 625, 626, 629, 630, 722, BSP, WSP
		758F00MFIN	1-3/4"
	Bottom Pins (L)	763F042
3	Bottom Pins (C)	763F052
	Bottom Pins (R)	763F062
4	Master & Build Up Pins	763F012
5	Top Pins	763F01M
6	Tumbler Springs	763F617
7	Spring Cover	756F722
8	Cam	See Access 3 Catalog
9	Cam Retainer	756F838
10	Screws	756F847
11	Slider	756F732-756F782
12	Slider Springs	756F797
13	Side Bar	756F807
14	Side Bar Springs	756F817
15	Security Plate	756F828

Item	Description	Part Number	Cylinder Length	Comments
1	Plug SA	758K58MSECFIN	1-1/4"	Plug finishes: 606, 626
2	Shell SA	758F48MFIN	1-1/4"	Shell finishes: 606, 606, 611, 612, 613, 618, 619, 622, 625, 626, 629, 630, 722, BSP, WSP
	Bottom Pins (L)	763F042
3	Bottom Pins (C)	763F052
	Bottom Pins (R)	763F062
4	Master Pins	763F012
5	Top Pins	763F03M
6	Tumbler Springs	763F617
7	Spring Cover	756F722
8	Cam	See Access 3 Catalog
9	Cam Retainer	756F838
10	Screws	756F847
11	Slider	756F732-756F782
12	Slider Spring	756F797
13	Side Bar	756F807
14	Side Bar Spring	756F817
15	Security Plate	756F828
16	Blocking Pin Springs	026F757
17	Blocking Pins	197F527

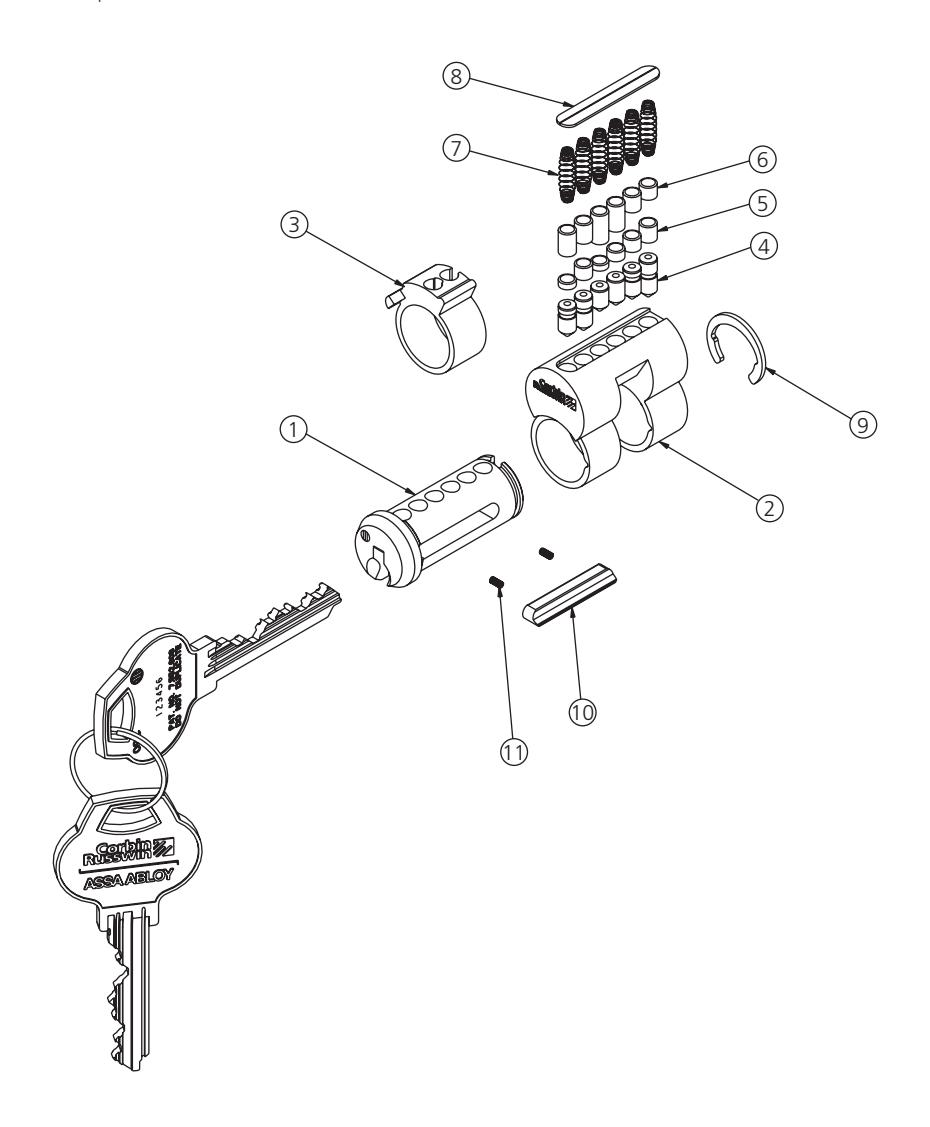

Item	Description	Part Number	Comments
1	Plug	757K50MSECFIN	Plug finishes: 606, 626
2	Core	763F58MFIN	Core finishes: 606, 626
3	Control Sleeve	763F572
4	Bottom Pins	763F002
5	Master & Build Up Pins	763F012
6	Top Pins	763F012
7	Tumbler Springs	763F617
8	Spring Cover	756F722
9	Retainer Ring	333F998
10	Side Bar (8500)	763F565
11	Side Bar Springs	756F817

Item	Description	Part Number	Comments
1	Plug	757K51MSECFIN	Plug finishes: 606, 626
2	Core	763F59MFIN	Core finishes: 606, 626
3	Control Sleeve	763F572
	Bottom Pins (L)	763F042
4	Bottom Pins (C)	763F052
	Bottom Pins (R)	763F062
5	Master & Build Up Pins	763F012
	Top Pins	763F012*
6		763F03M
7	Tumbler Springs	763F617
8	Spring Cover	756F722
9	Retainer Ring	333F998
10	Slider	756F732-756F782
11	Slider Springs	756F797
12	Side Bar	756F807
13	Side Bar Springs	756F817

* Used in control chambers only

Item	Description	Part Number	Comments
1	Plug SA	757K52MSECFIN	Plug finishes: 606, 626
2	Core	763F60MFIN	Core finishes: 606, 626
3	Control Sleeve	763F572
	Bottom Pins (L)	763F042
4	Bottom Pins (C)	763F052
	Bottom Pins (R)	763F062
5	Master & Build Up Pins	763F012
	Top Pins	763F012*
6		763F03M
7	Tumbler Springs	763F617
8	Spring Cover	756F722
9	Retainer Ring	333F998
10	Slider	756F732-756F782
11	Slider Springs	756F797
12	Side Bar	756F807
13	Side Bar Springs	756F817

* Use in control chambers only

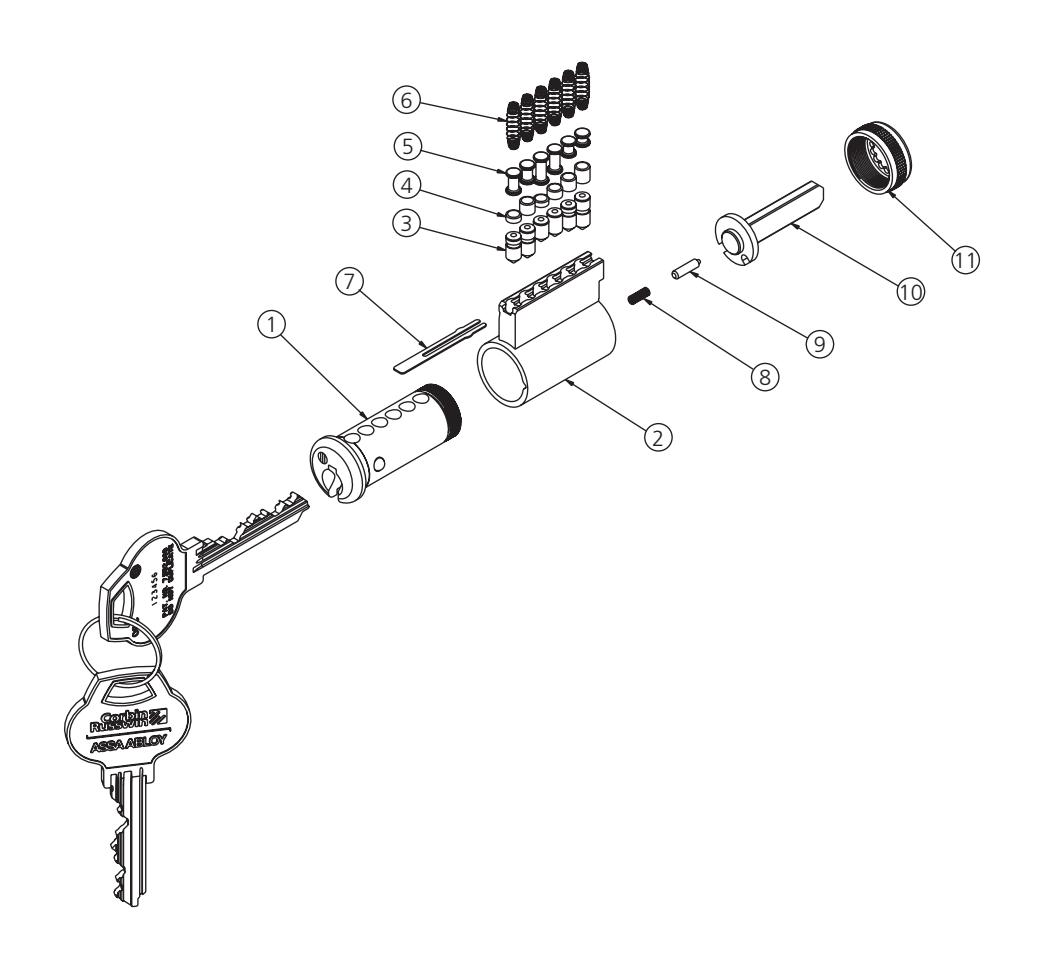

Item	Description	Part Number	Comments
1	Plug SA	758K20MSECFIN	Plug finishes: 606, 626
2	Shell	758F212
3	Bottom Pins	763F002
4	Master & Build Up Pins	763F012
5	Top Pins	763F027
6	Tumbler Springs	763F617
7	Spring Cover	756F858
8	Cap Pin Spring	585F327
9	Cap Pin	585F312
10	Tailpiece	See Access 3 Catalog
11	Cylinder Cap	680F645

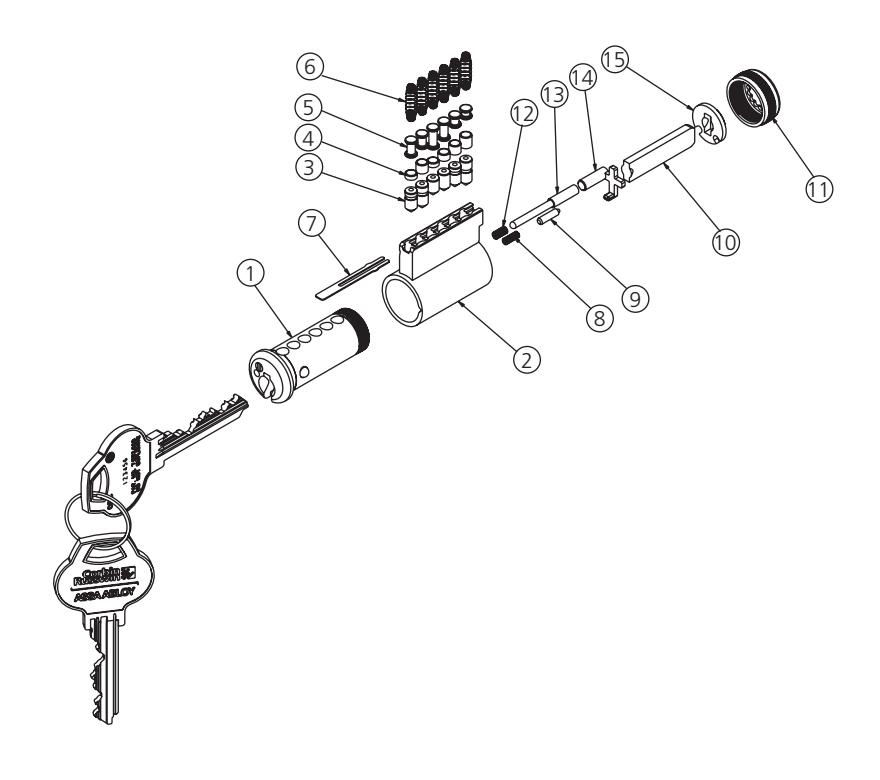

Item	Description	Part Number	Comments
1	Plug SA	758K52MSECFIN	Plug finishes: 606, 626
2	Shell	758F212
3	Bottom Pins	763F002
4	Master Pins	763F012
5	Top Pins	763F027
6	Tumbler Springs	763F617
7	Spring Cover	756F858
8	Cap Pin Spring	585F327
9	Cap Pin	585F312
		775F958	2501-031 Cylinder
10	Tailpiece	585F338	2501-034 Cylinder
11	Cylinder Cap	680F645
12	Actuator Spring	314F987
13	Lockout Identifier	314F997
14	Acutator Plate	758F538
15	Tailpiece Anchor	585F368

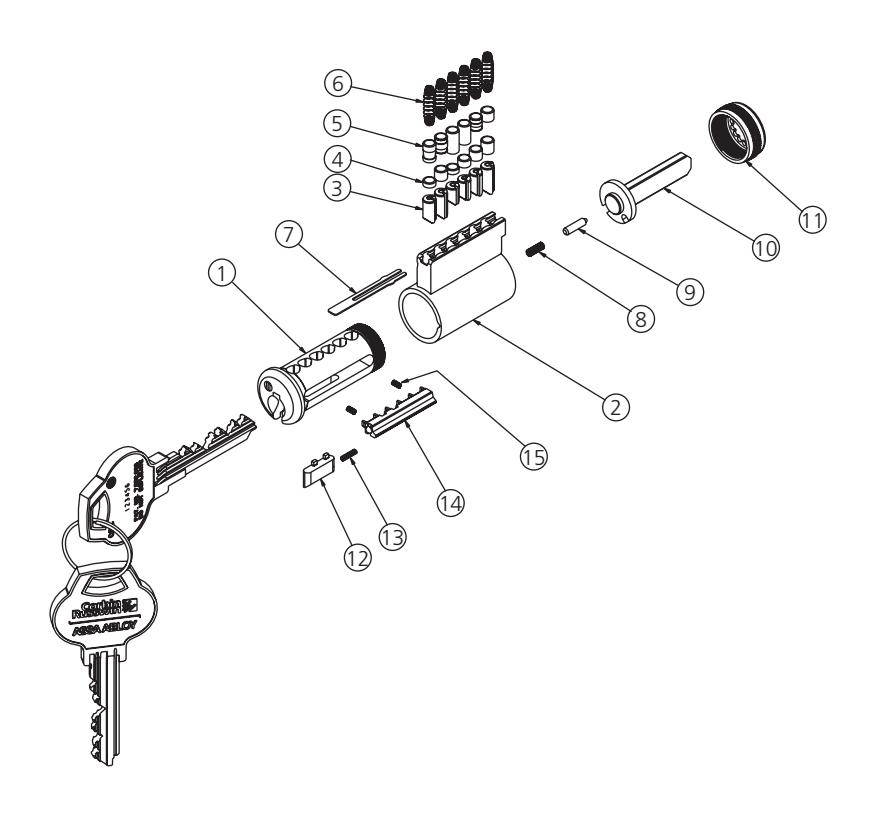

Item	Description	Part Number	Comments
1	Plug	758K18MSECFIN	Plug finishes: 606, 626
2	Shell	758F222
	Bottom Pins (L)	763F042
3	Bottom Pins (C)	763F052
	Bottom Pins (R)	763F062
4	Master & Build Up Pins	763F012
5	Top Pins	763F03M
6	Tumbler Springs	763F617
7	Spring Cover	756F858
8	Cap Pin Spring	585F327
9	Cap Pin	585F312
10	Tailpiece	See Access 3 Catalog
11	Cylinder Cap	680F645
12	Slider	756F732-756F782
13	Slider Springs	756F797
14	Side Bar	756F807
15	Side Bar Springs	756F817

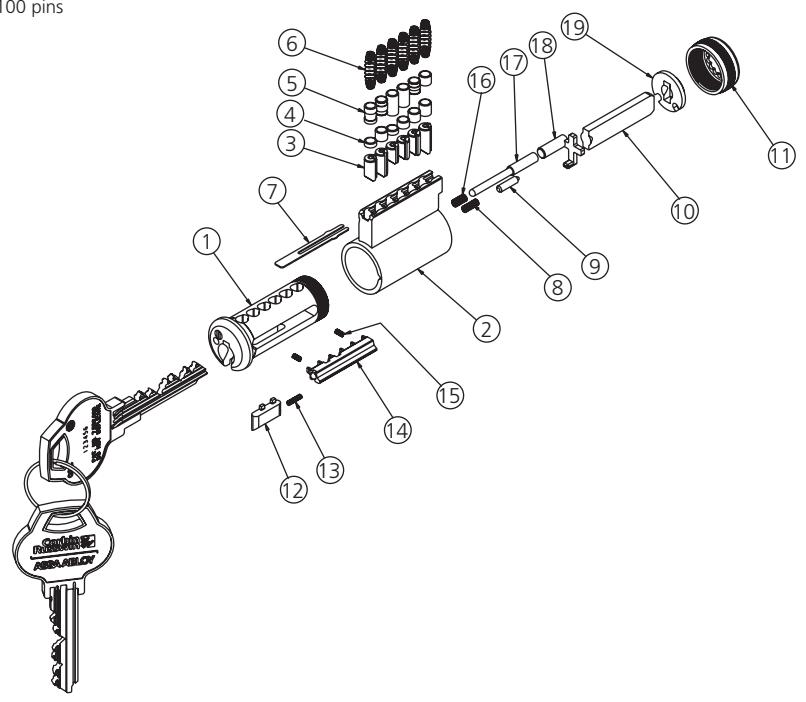

Item	Description	Part Number	Comments
1	Plug	758K50MSECFIN	Plug finishes: 606, 626
2	Shell	758F222
3	Bottom Pins	763F002
4	Master Pins	763F012
5	Top Pins	763F027
6	Tumbler Springs	763F617
7	Spring Cover	756F858
8	Cap Pin Spring	585F327
9	Cap Pin	585F312
		775F958	2601-031 Cylinder
10	Tailpiece	585F338	2601-034 Cylinder
11	Cylinder Cap	680F645
12	Slider	756F732-756F782
13	Slider Spring	756F797
14	Side Bar	756F807
15	Side Bar Spring	756F817
16	Actuator Spring	314F987
17	Lockout Identifier	314F997
18	Acutator Plate	758F538
19	Tailpiece Anchor	585F368

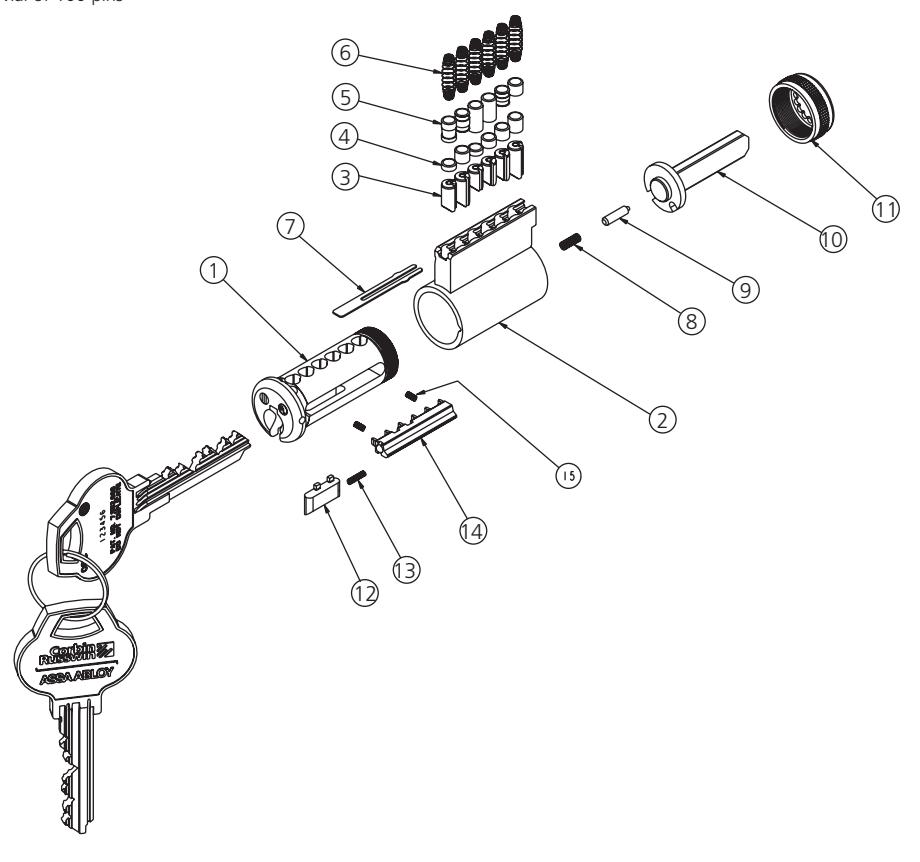

Item	Description	Part Number	Comments
1	Plug SA	758K19MSECFIN	Plug finishes: 606, 626
2	Shell	758F222
	Bottom Pins (L)	763F042
3	Bottom Pins (C)	763F052
	Bottom Pins (R)	763F062
4	Master & Build Up Pins	763F012
5	Top Pins	763F03M
6	Tumbler Springs	763F617
7	Spring Cover	756F858
8	Cap Pin Spring	585F327
9	Cap Pin	585F312
10	Tailpiece	See Access 3 Catalog
11	Cylinder Cap	680F645
12	Slider	756F732-756F782
13	Slider Springs	756F797
14	Side Bar	756F807
15	Side Bar Springs	756F817

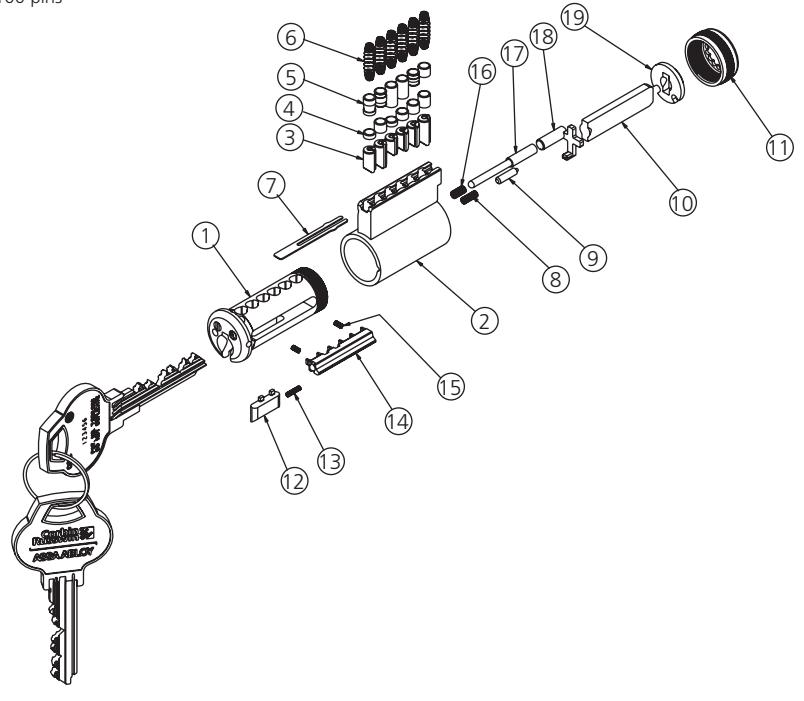

Item	Description	Part Number	Comments
1	Plug SA	758K51MSECFIN	Plug finishes: 606, 626
2	Shell	758F222
3	Bottom Pins	763F002
4	Master Pins	763F012
5	Top Pins	763F027
6	Tumbler Springs	763F617
7	Spring Cover	756F858
8	Cap Pin Spring	585F327
9	Cap Pin	585F312
		775F958	2701-031 Cylinder
10	Tailpiece	585F338	2701-034 Cylinder
11	Cylinder Cap	680F645
12	Slider	756F732-756F782
13	Slider Spring	756F797
14	Side Bar	756F807
15	Side Bar Spring	756F817
16	Actuator Spring	314F987
17	Lockout Identifier	314F997
18	Acutator Plate	758F538
19	Tailpiece Anchor	585F368

For additional information, contact your ASSA ABLOY Door Security Solutions sales consultant or visit www.corbinrusswin.com.

In U.S.

Corbin Russwin Architectural Hardware 225 Episcopal Road Berlin, CT 06037 Phone: 800-543-3658 Fax: 800-447-6714 www.corbinrusswin.com

In Canada

ASSA ABLOY Door Security Solutions Canada 160 Four Valley Drive Vaughan, Ontario Canada L4K 4T9 Phone: 800-461-3007 Fax: 800-461-8989 www.assaabloydss.ca
