Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. Shaded area represents mortise lock cavity from device template.
  • 6. Prepare mounting holes when installing trim.
  • 7. Provide adequate structural support to maintain door integrity during operation.

Corbin Russwin 9M55 and 9M57 Trim for ED5600 Wide Stile Mortise with IK (INTELLIKEY) Wood or Composite Door Temp…_T30965 imag

Note: Lever and knob prefix does not affect door prep.

Corbin Russwin 9M55 and 9M57 Trim for ED5600 Wide Stile Mortise with IK (INTELLIKEY) Wood or Composite Door Temp…_T30965 imag

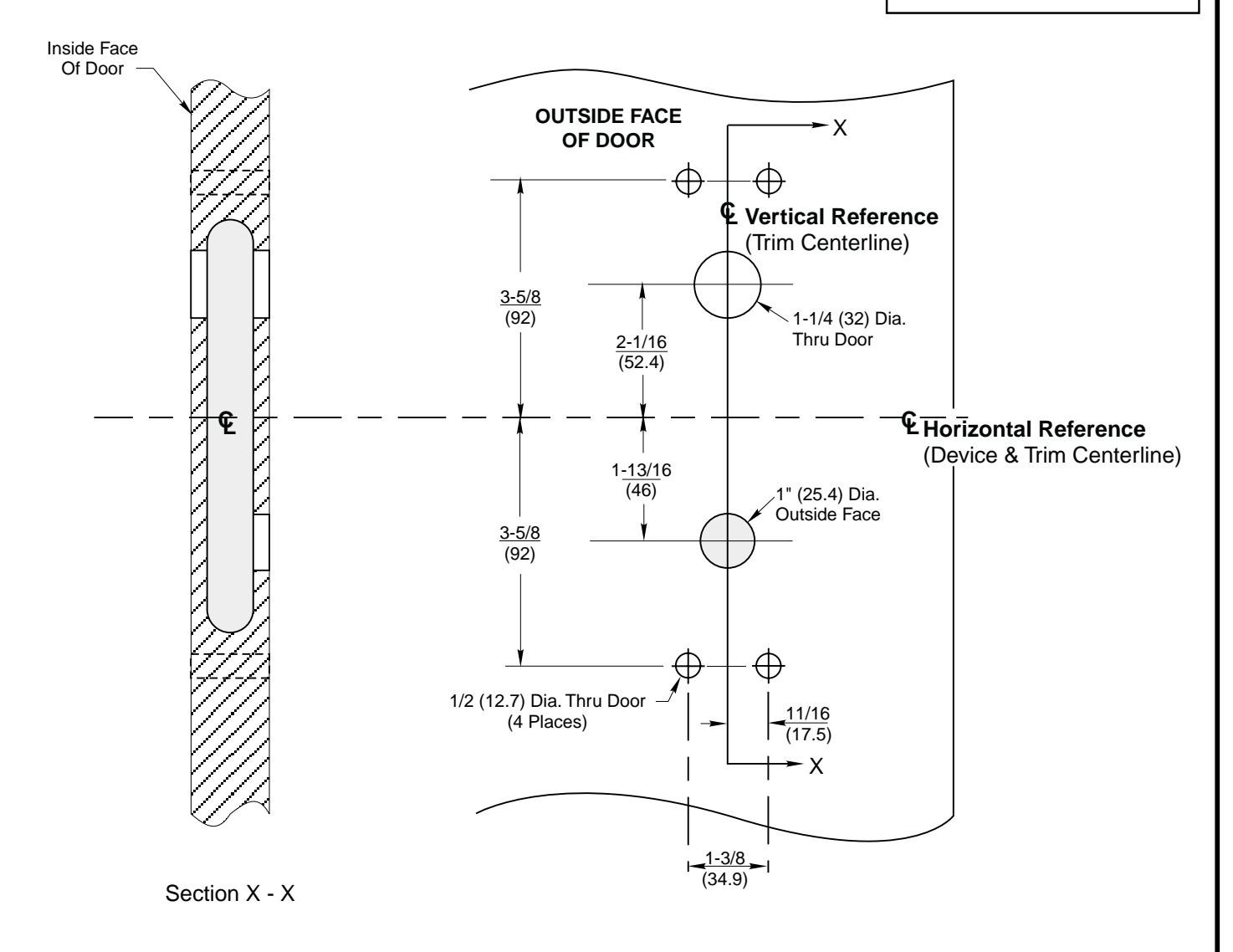

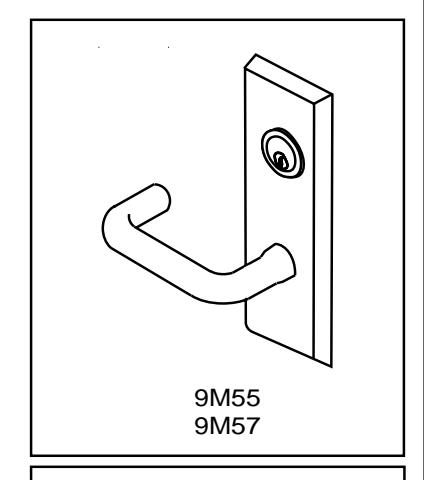

9M55 & 9M57 Series Trim For Use With IK (INTELLIKEY) Exit Devices Wood or Composite Door Preparation ED5600 Series Mortise Exit Devices

Corbin Russwin 9M55 and 9M57 Trim for ED5600 Wide Stile Mortise with IK (INTELLIKEY) Wood or Composite Door Temp…_T30965 diag

www.corbinrusswin.com

DO NOT SCALE DRAWING SUPERSEDES

T309 56 11-01 TEMPLATE NUMBER DATE
