← Corbin

Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. For door reinforcement see template T30800.
  • 6. Prepare mounting holes when installing trim.
  • 7. Provide adequate internal support to prevent door deformation after trim is bolted to the device.

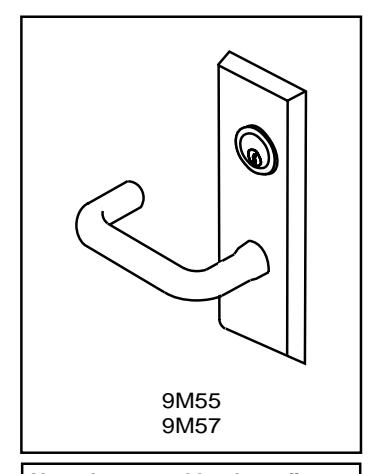

Corbin Russwin 9M55 and 9M57 Trim for ED5600 Wide Stile Mortise with IK (INTELLIKEY) Metal Door Template_T30964 image on page

Note: Lever and knob prefix does not affect door prep.

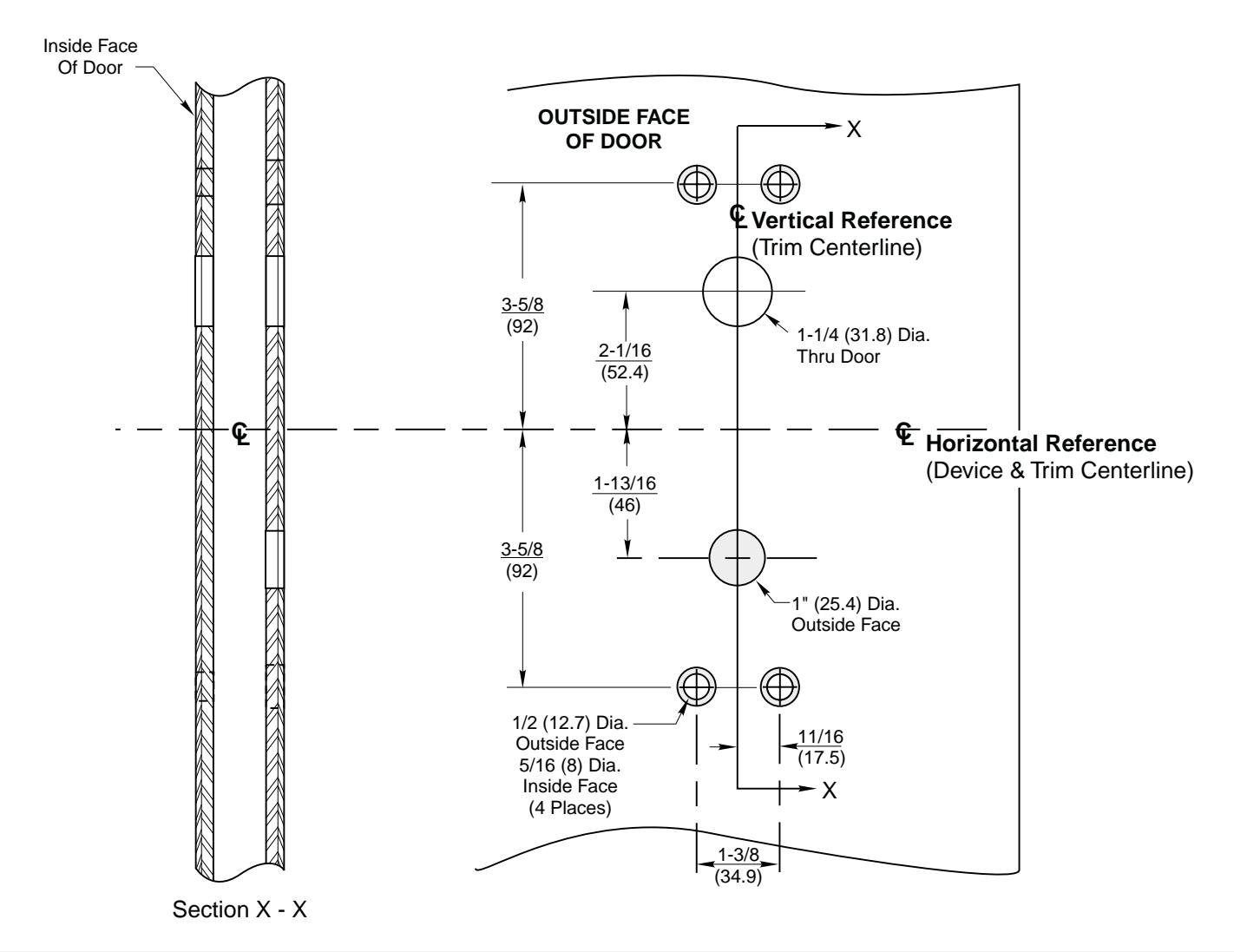

Corbin Russwin 9M55 and 9M57 Trim for ED5600 Wide Stile Mortise with IK (INTELLIKEY) Metal Door Template_T30964 diagram on pa

9M55 & 9M57 Series Trim For Use With IK (INTELLIKEY) Exit Devices Metal Door Preparation ED5600 Series Mortise Exit Devices

Corbin Russwin 9M55 and 9M57 Trim for ED5600 Wide Stile Mortise with IK (INTELLIKEY) Metal Door Template_T30964 diagram on pa

DO NOT SCALE DRAWING SUPERSEDES

TEMPLATE NUMBER DATE T30964 11-01
