Notes:

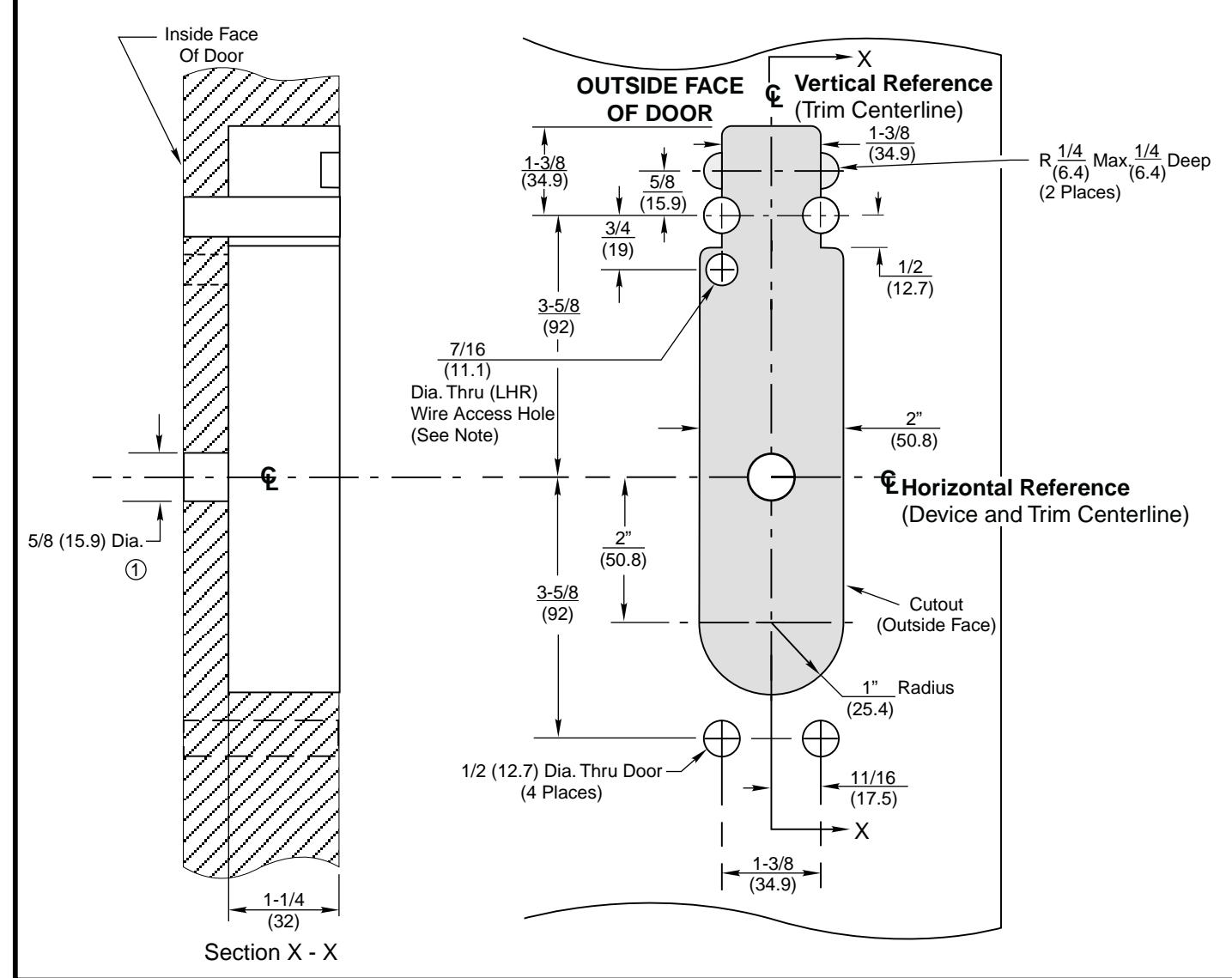

• 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
• 2. Do not scale drawing.
• 3. Dimensions are in inches (mm).
• 4. LHR door shown. Preparation is typical for both door hands.
• 5. Provide adequate structural support to maintain door integrity during operation.
• 6. Prepare mounting holes when installing trim.
• 7. Dimensions given about a centerline are symmetrical.
• 8. Unspecified radius 1/8 maximum.

Note: Wire access hole must be prepared if a wire raceway in the door is not provided. (Device will be used as raceway.)

Note: Lever design prefix does not affect door prep.

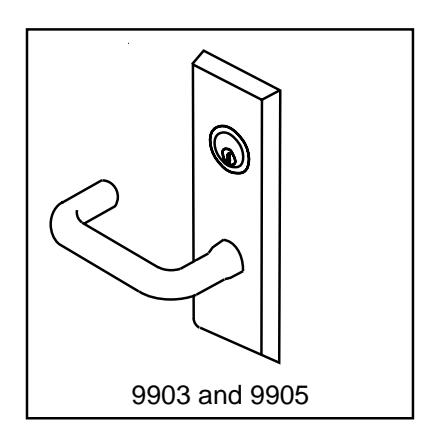

9903 and 9905 (Electric Trim)

ED5000 Series

SecureBolt, Rim and Surface Vertical Rod Exit Devices Wood or Composite Door Preparation
