← Corbin

Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. For door reinforcement see template T30800.
  • 6. Prepare mounting holes when installing trim.
  • 7. Provide adequate internal support to prevent door deformation after trim is bolted to the device.
  • 8. Dimensions given about a centerline are symmetrical.

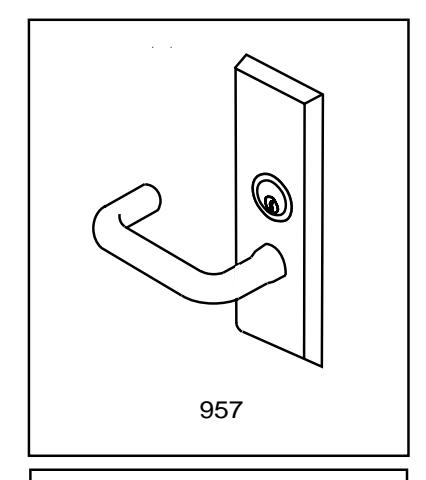

Corbin Russwin 957 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, SecureBolt, CVR, SVR with IK (INTELLIKEY) Met…_T30960 imag

Note: Lever and knob prefix does not affect door prep.

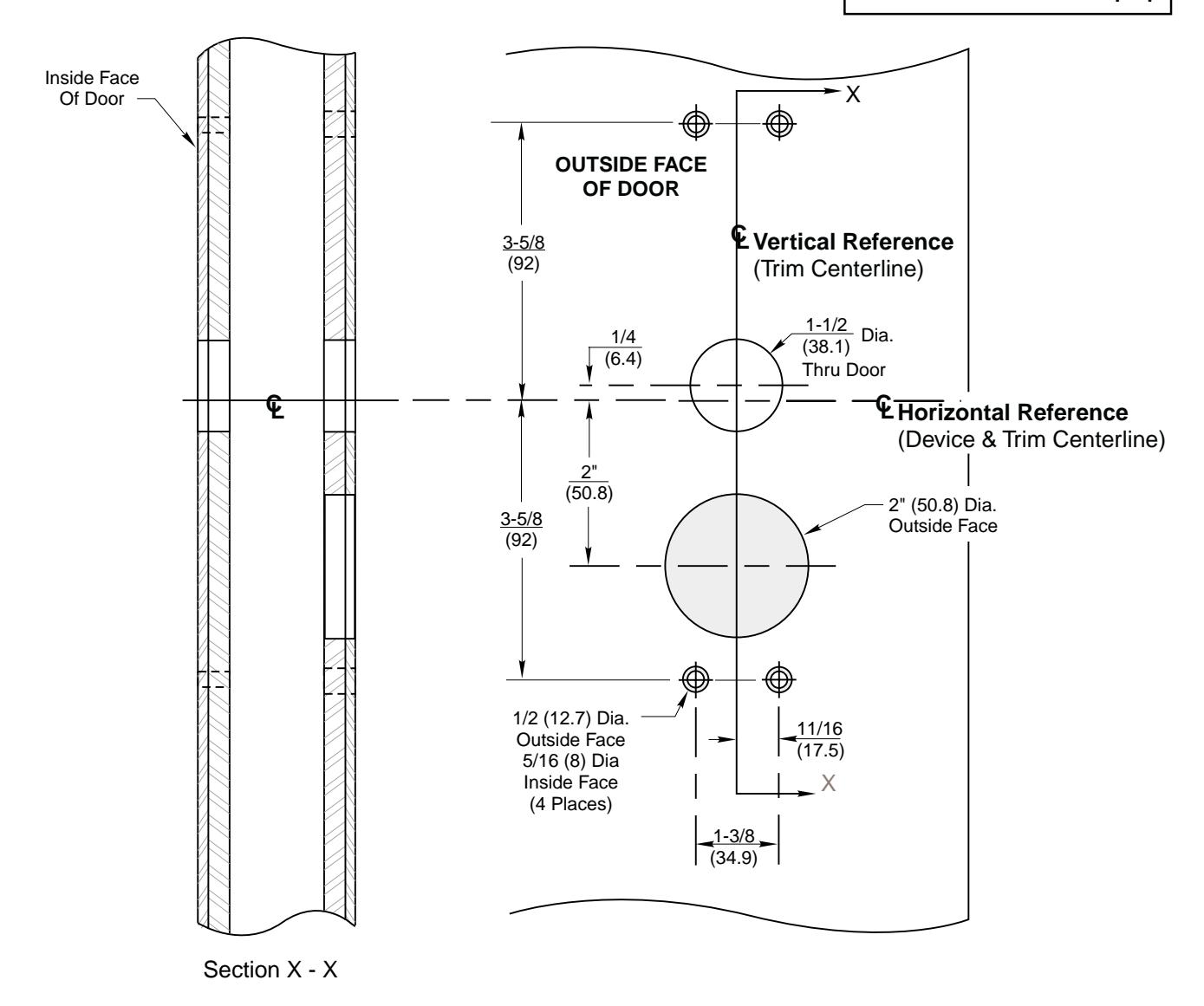

Corbin Russwin 957 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, SecureBolt, CVR, SVR with IK (INTELLIKEY) Met…_T30960 imag

957 Trim For Use With IK (INTELLIKEY) Exit Devices ED5200, ED5400 or ED5800 Series Rim, SecureBolt, and Vertical Rod Exit Devices

Metal Door Preparation

DO NOT SCALE DRAWING SUPERSEDES www.corbinrusswin.com

TEMPLATE NUMBER DATE

T30960 11-01

®
