Notes:

  • This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • LHR door shown. Preparation is typical for both door hands.
  • 5. Provide adequate structural support to maintain door integrity during operation.
  • 6. Prepare mounting holes when installing trim.
  • 7. Dimensions given about a centerline are symmetrical.
  • 8. Unspecified radii 1/8 (3) maximum.

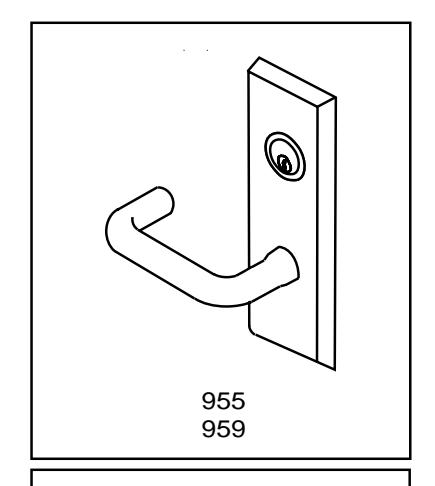

Corbin Russwin 955 and 959 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, SecureBolt, CVR, SVR Wood or Composit…_T30952 imag

Note: Lever and knob prefix does not affect door prep.

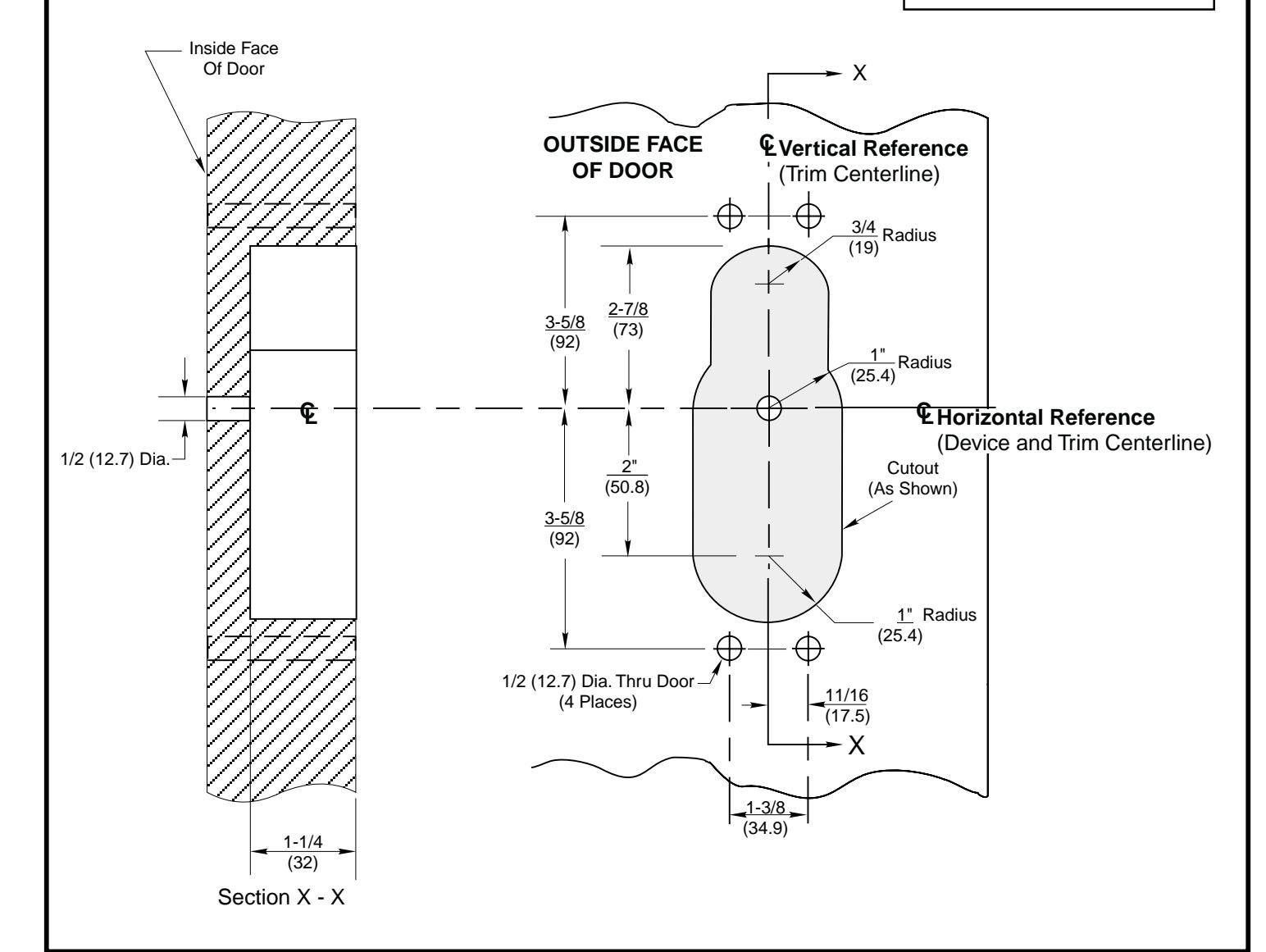

Corbin Russwin 955 and 959 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, SecureBolt, CVR, SVR Wood or Composit…_T30952 diag

955 & 959 Series Trim

With ED5200, ED5400 or ED5800 Series Rim, SecureBolt, and Vertical Rod Exit Devices Wood or Composite Door Preparation

Corbin Russwin 955 and 959 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, SecureBolt, CVR, SVR Wood or Composit…_T30952 imag

www.corbinrusswin.com

SUPERSEDES DO NOT SCALE DRAWING

T30952

952 DATE 10-01
