Notes:

  • This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • LHR door shown. Preparation is typical for both door hands.
  • 5. Provide adequate structural support to maintain door integrity during operation.
  • 6. Prepare mounting holes when installing trim.
  • 7. Dimensions given about a centerline are symmetrical.
  • 8. Unspecified radii 1/8 (3) maximum.

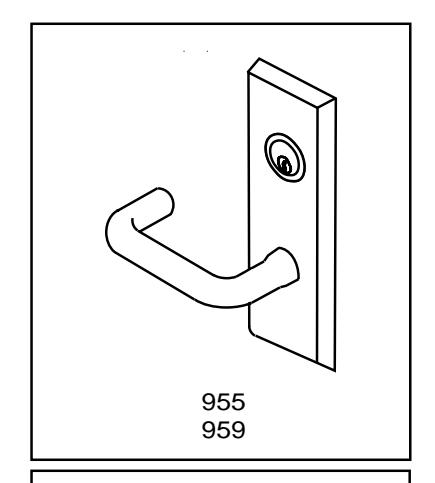

Corbin Russwin 955 and 959 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, SecureBolt, CVR, SVR with IK (INTELLI…_T30959 imag

Note: Lever and knob prefix does not affect door prep.

Corbin Russwin 955 and 959 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, SecureBolt, CVR, SVR with IK (INTELLI…_T30959 diag

955 & 959 Series Trim For Use With IK (INTELLIKEY) Exit Devices ED5200, ED5400 or ED5800 Series

Rim, SecureBolt, and Vertical Rod Exit Devices Wood or Composite Door Preparation

Russwin // www.corbinrusswin.com

SUPERSEDES DO NOT SCALE DRAWING

TEMPLATE NUMBER T30959

) DATE 11-01
