INSTALLATION INSTRUCTIONS FOR 907(A), 908(A) & 910 MULLIONS
FM277 2/08 (617417800)
Tools Required:
- · Measuring Tape
- · Pencil
- · Drill & Tap Sizes: #7 drill and 1/4"-20 tap
- · Concrete Drill: 3/8" diameter
- · Center Punch
- · Hammer
- · #2 & #3 Phillips Screw Drivers
- · 5/32" Allen Wrench
- 1. Close and block doors against frame stops. Check gap between door leaves and door to frame and correct if necessary.
-
2. Locate the center of the opening on the floor. Using the Bottom Retainer, mark the positions for the two drop-in fasteners.
- a.The bottom of the door should come to rest against the surface of the Mullion.
- b. Modify threshold as required.
- 3. Drill (2) 3/8" diameter holes in floor with cement bit to a minimum depth of 2 1/2".
- 4. Fasten Bottom Retainer to floor.
-
5. Locate the center of the opening on the top of the frame. Using the Top Retainer, mark the positions for the (4) fasteners.
- a.The door should evenly rest against both the frame stop and the Mullion.
- b. If a Top Retainer mounting kit is used, modify weatherstripping as required.
- 6. Drill and tap each location for 1/4"-20 fasteners.

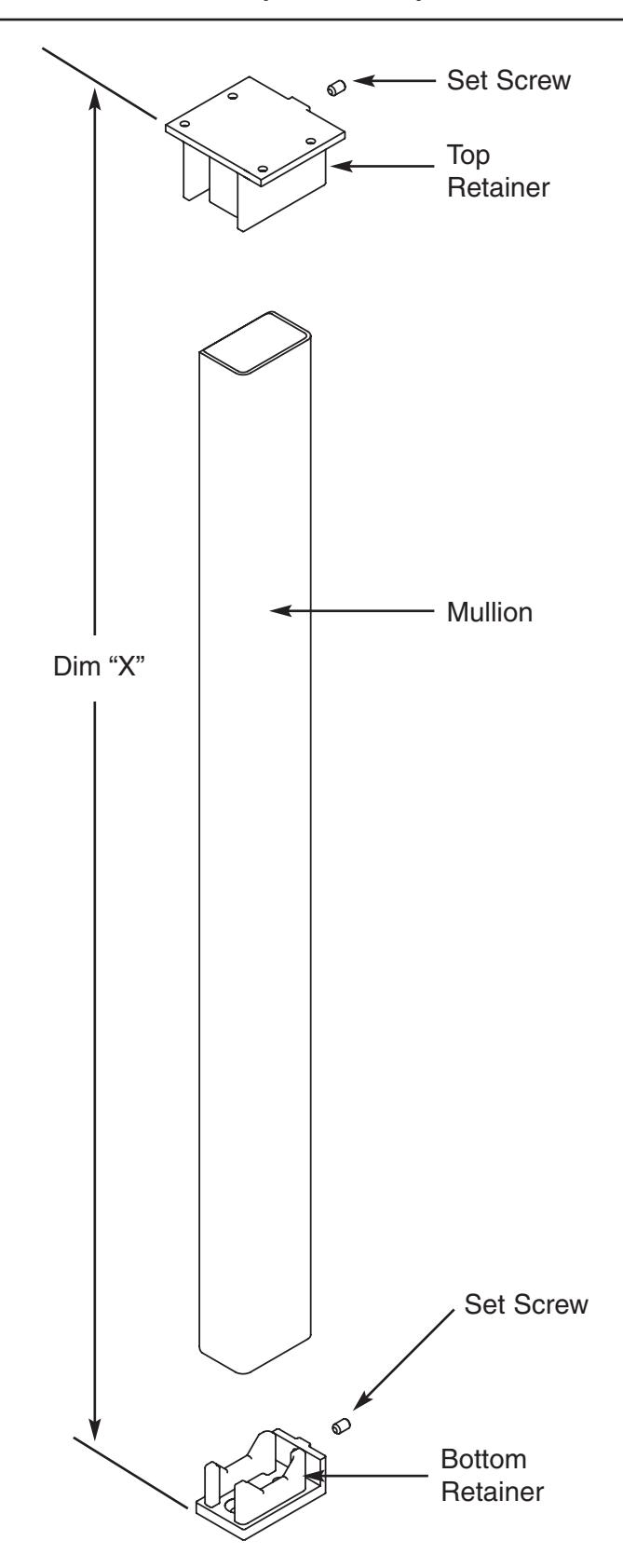

- 7. Measure "Dim X" as shown. Remove material from the bottom of the Mullion per the formula: length of Mullion ="dim X" minus 3/4". Note - This leaves approximately 1/8" clearance between the Mullion and the Top Retainer when mounted.
- 8. Place Mullion onto Bottom Retainer and place Top Retainer on top of Mullion. Pivot into opening and secure Top Retainer with provided fasteners.
- 9. Tighten set screws in both Top and Bottom Retainers.
INSTALLATION INSTRUCTIONS FOR 907(A), 908(A) & 910 MULLIONS
FM277 2/08 (617417800)
- 10. Install exit devices according to the manufacturer's Instructions.

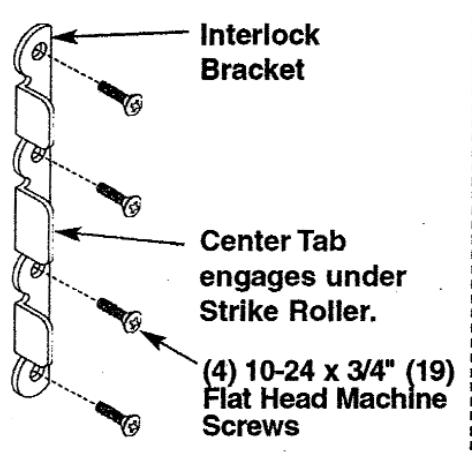

- 11. Fire rated Rim and SecureBolt® Exit Devices: After exit devices and strikes have been assembled, install Interlock Brackets with (4) #10-24 x 3/4" screws as shown in illustration below.
Corbin Russwin, Inc. 225 Episcopal Road Berlin, CT 06037-4004 www.corbinrusswin.com
Technical Product Support
Phone: 888-607-5703 Fax: 800-659-7293
Canada: ASSA ABLOY DSS Canada 160 Four Valley Drive Vaughan, Ontario L4K 4T9 www.assaabloycanadadss.ca
