FRAME APPLICATIONS

Corbin Russwin 907(A), 907BKM, 908(A), 908BKM, 910, and 910KM Mullions for Exit Devices Template_T31074 diagram on page 1

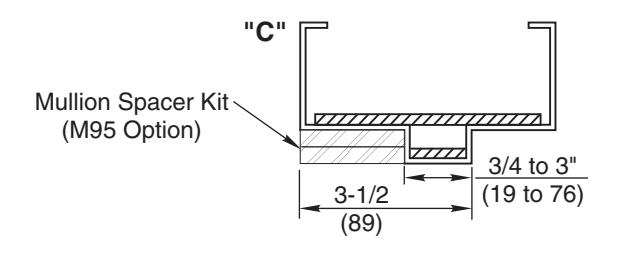

Recommended for double rabbeted frames where stop face is less than 3" (76) wide.

Corbin Russwin 907(A), 907BKM, 908(A), 908BKM, 910, and 910KM Mullions for Exit Devices Template_T31074 diagram on page 1

Recommended for header configuration with less than 3" (76) of mounting surface.

Corbin Russwin 907(A), 907BKM, 908(A), 908BKM, 910, and 910KM Mullions for Exit Devices Template_T31074 diagram on page 1

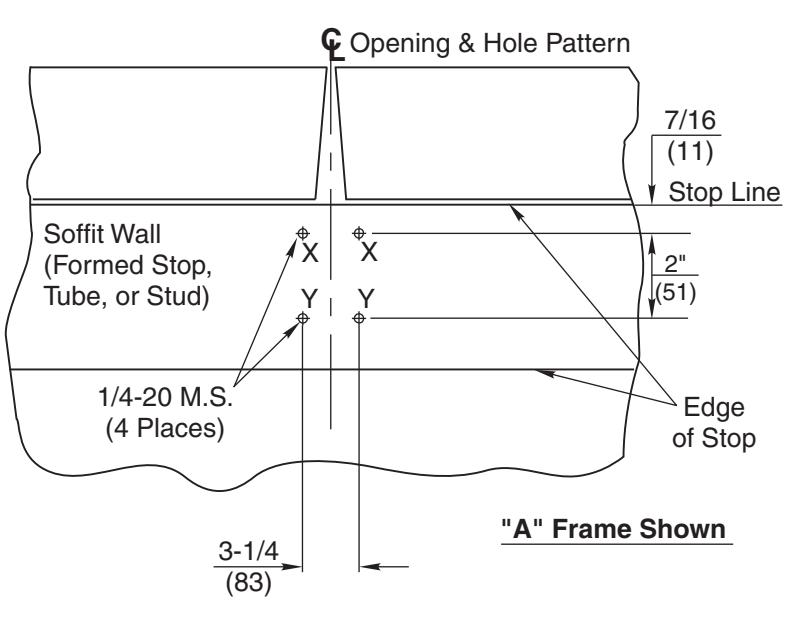

SOFFIT PREP (TOP VIEW)

—TYPICAL FOR ALL FRAMES—

Corbin Russwin 907(A), 907BKM, 908(A), 908BKM, 910, and 910KM Mullions for Exit Devices Template_T31074 diagram on page 1

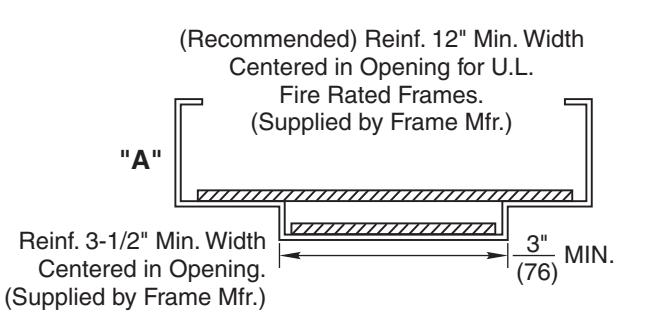

Application Holes Required
"A" X & Y
"C" X & Y (Note 6)
"D" X & Z

Notes:

  • 1. Do not scale drawing. Dimensions shown in inches(mm).
  • 2. Prepare mounting holes when installing the mullion. Use this template for structural frame preparation.
  • 3. Metal frames should provide mounts to maintain not less than (3) full screw threads engaged.
  • 4. Wood frames should provide not less than 5/8 (16) screw engagement to structural beam (construction grade lumber, or better).
  • 5. 900(A) Series and 900(B)KM Series mullions are made from 2" x 3" (51 x 76) tubular steel. Locate device from mullion face (strike seat).
  • 6. Two flat head 1/4-20 x 1-1/4 machine screws are included with Mullion Spacer Kit (M95 Option) when so ordered.

907(A), 908(A) & 910 Mullions 907BKM, 908BKM & 910KM Mullions Frame Preparation

ASSA ABLOY www.corbinrusswin.com SUPERSEDES DO NOT SCALE DRAWING TEMPLATE NUMBER T31074 DATE 02-08
