Corbin Russwin 810, 850, 855, and 859 Narrow Escutcheon Trim for ED4200(M), ED4400(M), ED4800(M) Narrow Stile Ri…

Original Source Document Full PDF Version

Corbin Russwin 810, 850, 855, and 859 Narrow Escutcheon Trim for ED4200(M), ED4400(M), ED4800(M) Narrow Stile Ri…_T30848 diag

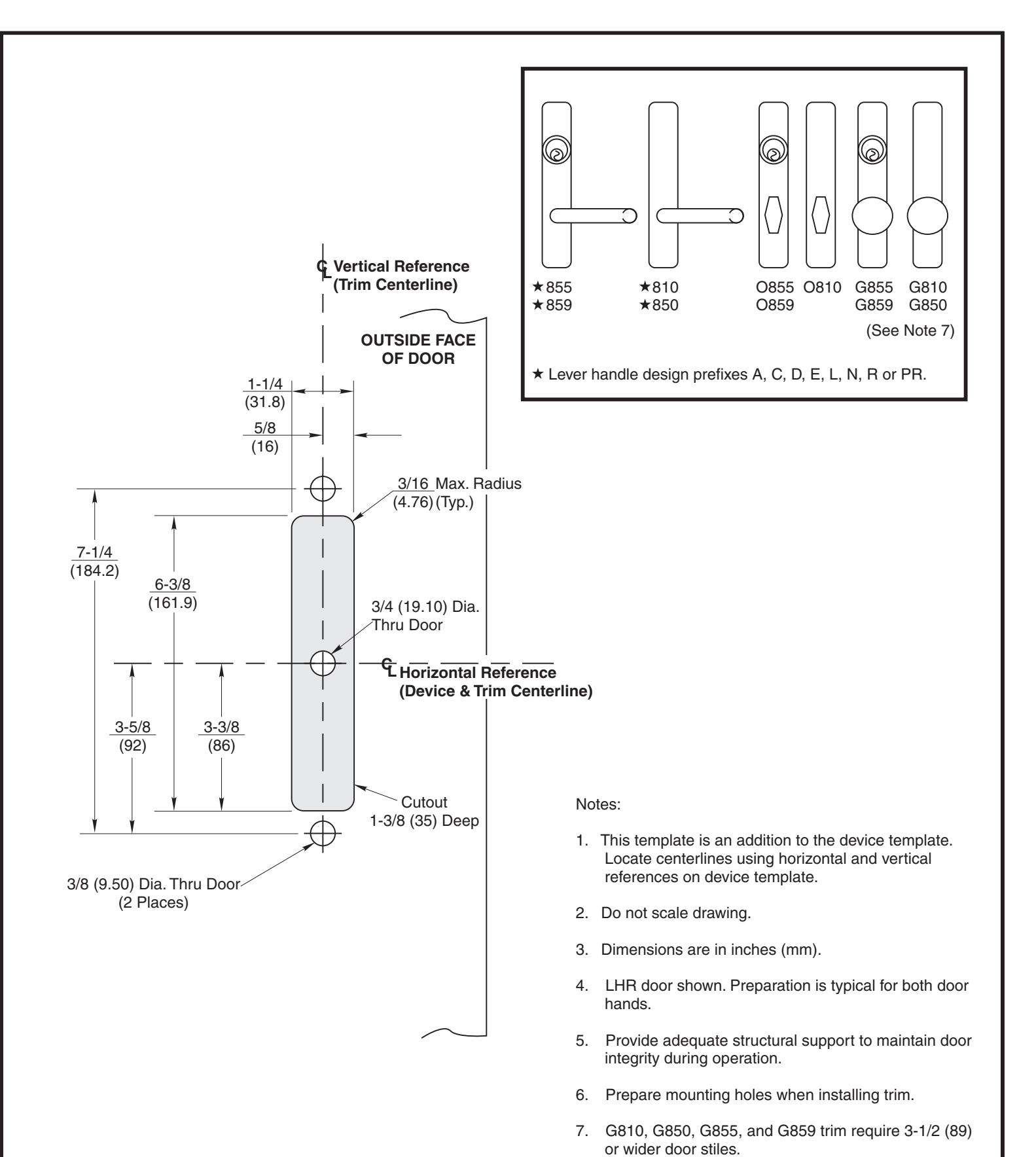

810, 850, 855 & 859 Series Narrow Escutcheon Trim With ED4200(M), ED4400(M), or ED4800(M) Series Rim and Vertical Rod Exit Devices Wood or Composite Door Preparation

Corbin Russwin 810, 850, 855, and 859 Narrow Escutcheon Trim for ED4200(M), ED4400(M), ED4800(M) Narrow Stile Ri…_T30848 imag

www.corbinrusswin.com

SUPERSEDES T30848-1 DO NOT SCALE DRAWING

TEMPLATE NUMBER

T30848-2

02-09
