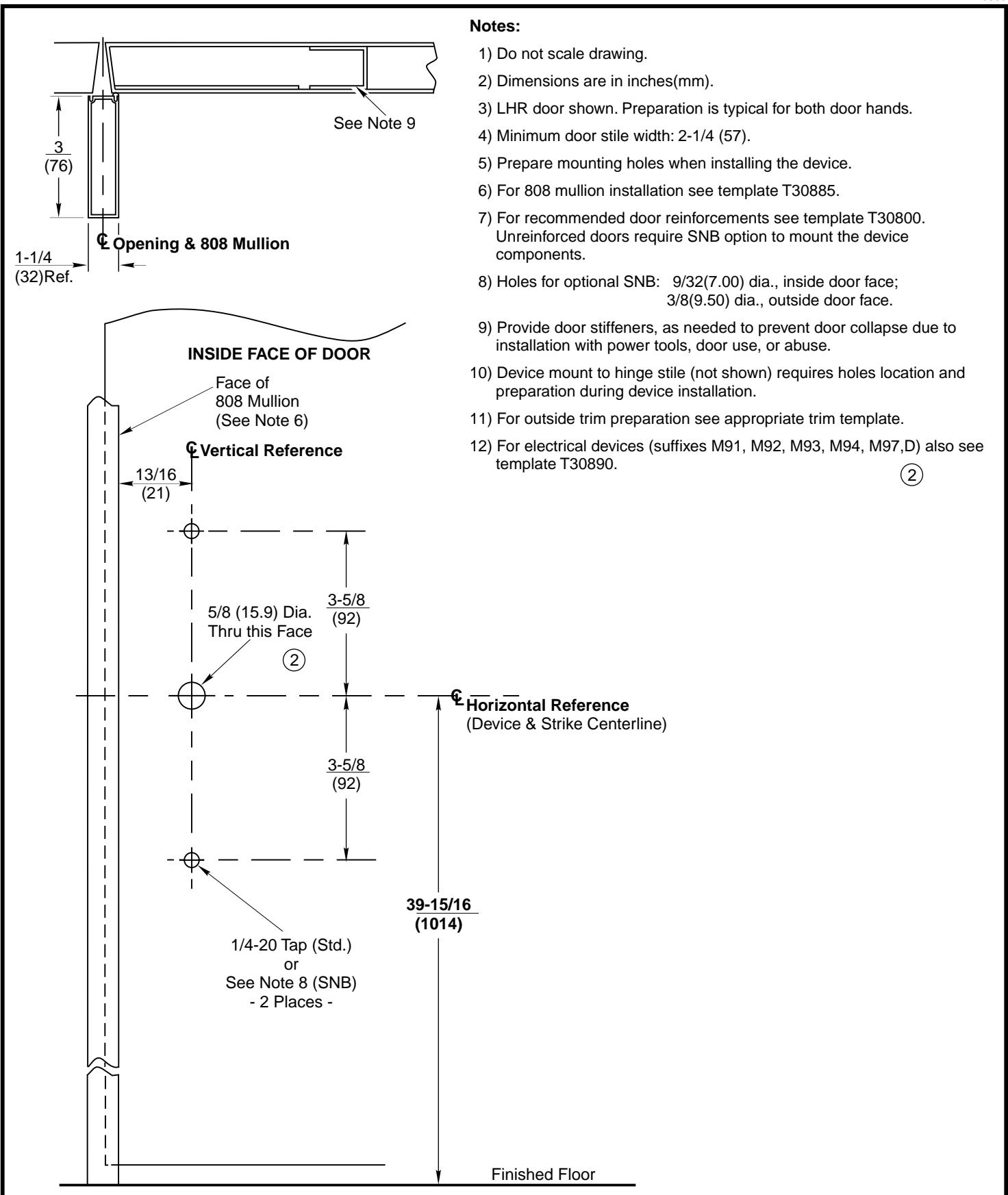

Corbin Russwin 808 Mullion for ED4200 Narrow Stile Rim Pair of Aluminum or Metal Doors Template_T30884 diagram on page 1

ED4200 Series Narrow Stile Rim Panic Devices with 808 Mullion

Application for a Pair of Aluminum or Metal Doors

Corbin Russwin 808 Mullion for ED4200 Narrow Stile Rim Pair of Aluminum or Metal Doors Template_T30884 image on page 1

T30884-1 DO NOT SCALE DRAWING SUPERSEDES

T30884-2 TEMPLATE NUMBER DATE

2-03
