  • 1. Do not scale drawing. Dimensions are in inches(mm).
  • 2. 808 Mullion is made from 1-1/4 x 3 (31.8 x 76.2) aluminum extrusion.
  • 3. Mullion has built-in strike for ED4200 Series exit devices. Locate device from mullion face as shown on template T30884, at installation.
  • 4. Prepare mounting holes when installing the mullion.

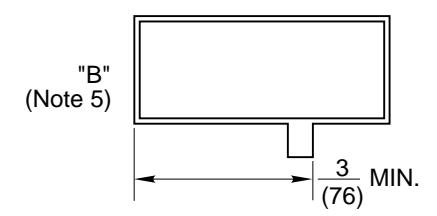

  • 5. Doors and frames should provide solid engagement to not less than (3) full screw threads.

Corbin Russwin 808 Mullion for E4200 Narrow Stile Rim Frame Preparation Template_T30885 diagram on page 1

Corbin Russwin 808 Mullion for E4200 Narrow Stile Rim Frame Preparation Template_T30885 image on page 1

Corbin Russwin 808 Mullion for E4200 Narrow Stile Rim Frame Preparation Template_T30885 image on page 1

808 Mullion Frame Preparation

Corbin Russwin 808 Mullion for E4200 Narrow Stile Rim Frame Preparation Template_T30885 image on page 1

T30885-1

DO NOT SCALE DRAWING SUPERSEDES

T30885-2 TEMPLATE NUMBER DATE

4-01
