Installation Instructions

Corbin Russwin 800PT & 900PT Lever Handle with Exit Trim Spindle Interaction for PED4000 and PED5000 Series Narr…_FM605 image

800PT & 900PT Series

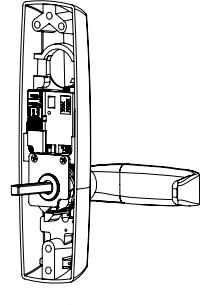

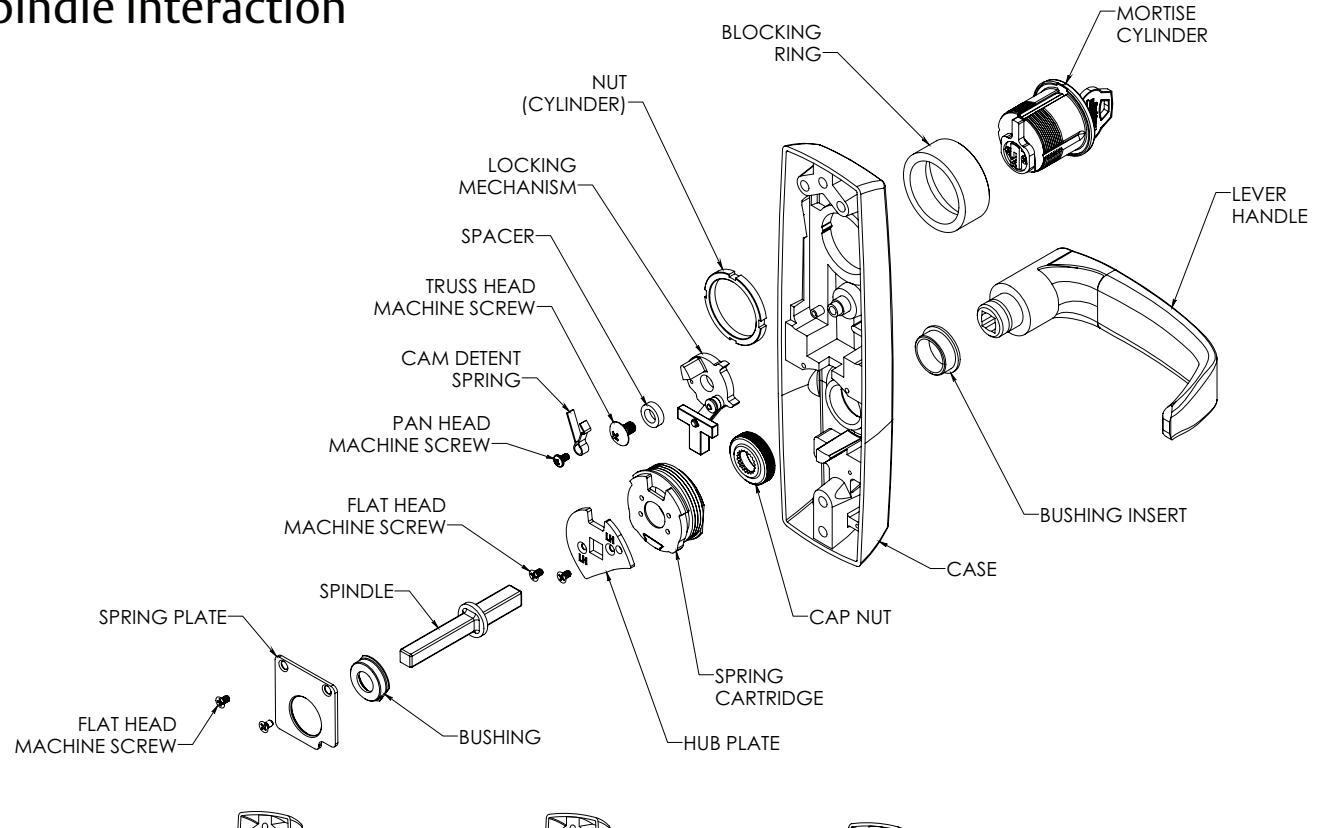

Lever Handle with Exit Trim Spindle Interaction

Corbin Russwin 800PT & 900PT Lever Handle with Exit Trim Spindle Interaction for PED4000 and PED5000 Series Narr…_FM605 image

Corbin Russwin 800PT & 900PT Lever Handle with Exit Trim Spindle Interaction for PED4000 and PED5000 Series Narr…_FM605 image

Corbin Russwin 800PT & 900PT Lever Handle with Exit Trim Spindle Interaction for PED4000 and PED5000 Series Narr…_FM605 image

8M910PT/8M930PT Trim shown

WARNING

This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www. P65warnings.ca.gov.

1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com

Copyright © 2023 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited. Patent pending and/or patent www.assaabloydss.com/patents.

WARNING

Attention Installer: Improper installation may result in damage to the product and void the factory warranty.

Lever Handle with Exit Trim

Installation Instructions

8M00PT/9M00PT series trim used with PED5400 and NB-PED5400 surface mounted vertical rod exit devices.

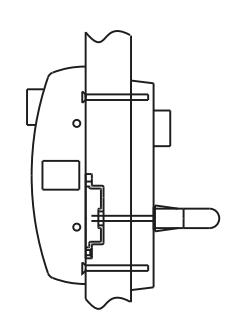

8M00PT/9M00PT series trim used with PED5242 rim exit devices.

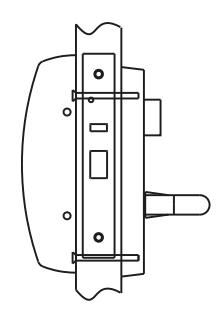

8M00PT/9M00PT series trim used with PE5600 Mortise lock exit devices.

Corbin Russwin 800PT & 900PT Lever Handle with Exit Trim Spindle Interaction for PED4000 and PED5000 Series Narr…_FM605 image

Corbin Russwin 800PT & 900PT Lever Handle with Exit Trim Spindle Interaction for PED4000 and PED5000 Series Narr…_FM605 image

Corbin Russwin 800PT & 900PT Lever Handle with Exit Trim Spindle Interaction for PED4000 and PED5000 Series Narr…_FM605 image

PED5242 RHRB shown

Corbin Russwin 800PT & 900PT Lever Handle with Exit Trim Spindle Interaction for PED4000 and PED5000 Series Narr…_FM605 image

PED5600 RHRB shown

800PT/900PT series used with PED4200, PED5200, PED5200 A, PED5200 HC, and PED5200 A HC rim type exit devices.

Corbin Russwin 800PT & 900PT Lever Handle with Exit Trim Spindle Interaction for PED4000 and PED5000 Series Narr…_FM605 image

Important: See instruction sheet FM577 for PED5200 (A) and PED5200 (A) HC exit device mounting, or FM578 for PED4200.

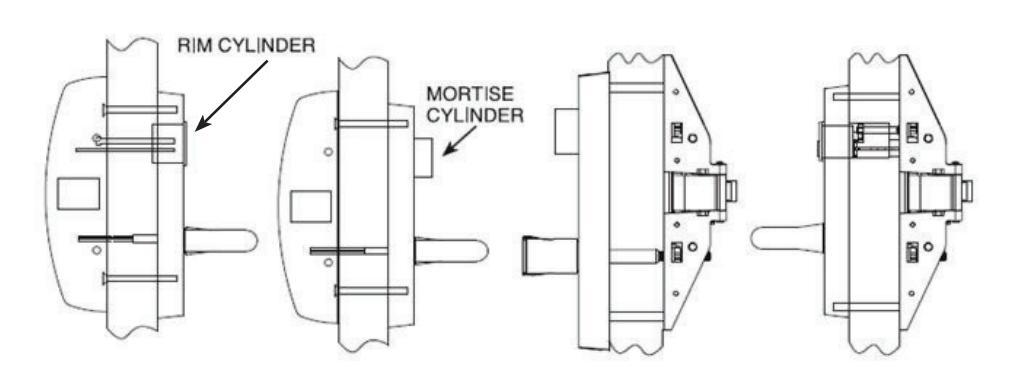

PED5200 x 9903PT RHRB shown

PED5200 x 945PT RHRB shown

PED4200 x 945PT, 910PT LHRB shown

PED4200 x 947PT LHRB shown

8CV00PT / 9CV00PT series trim used with PED4800, PED4800 A MD, PED5800 MD, PED5800 A MD, PED5800 WD and PED5800 A WD concealed vertical rod exit devices.

Corbin Russwin 800PT & 900PT Lever Handle with Exit Trim Spindle Interaction for PED4000 and PED5000 Series Narr…_FM605 image

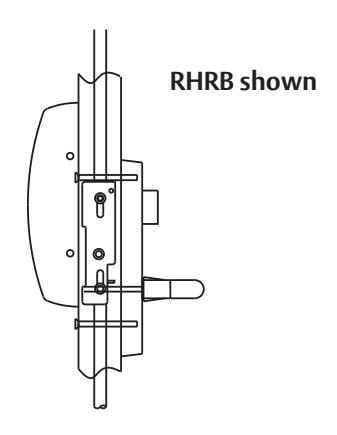

RHRB shown Important: See instruction sheet for exit device mounting:

FM582 - for PED4800 and PED4800 A MD FM608 - for PED5800 WD and PED5800 A WD FM581 - for PED5800 MD and PED5800 A MD

Lever Handle with Exit Trim

Installation Instructions

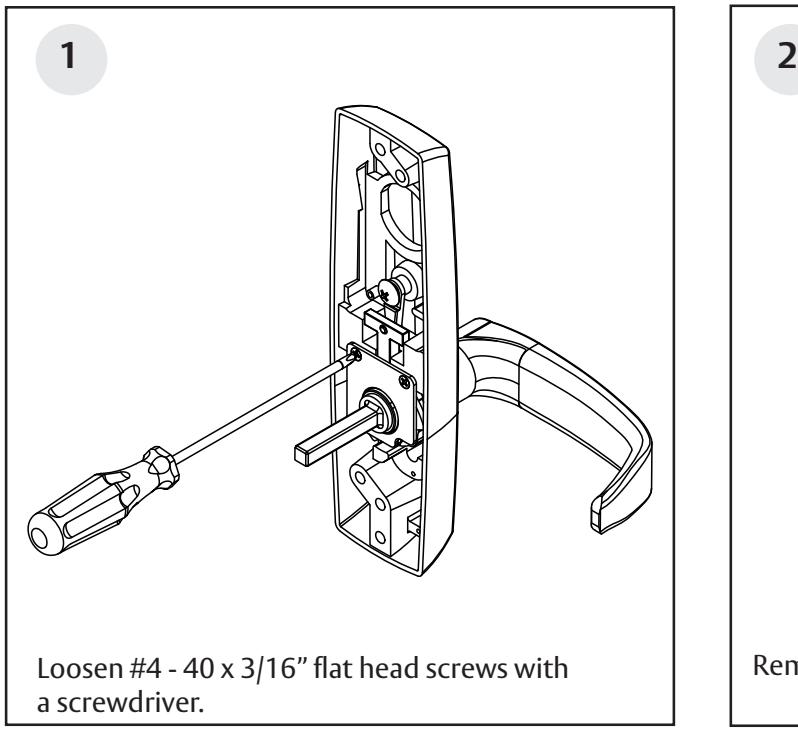

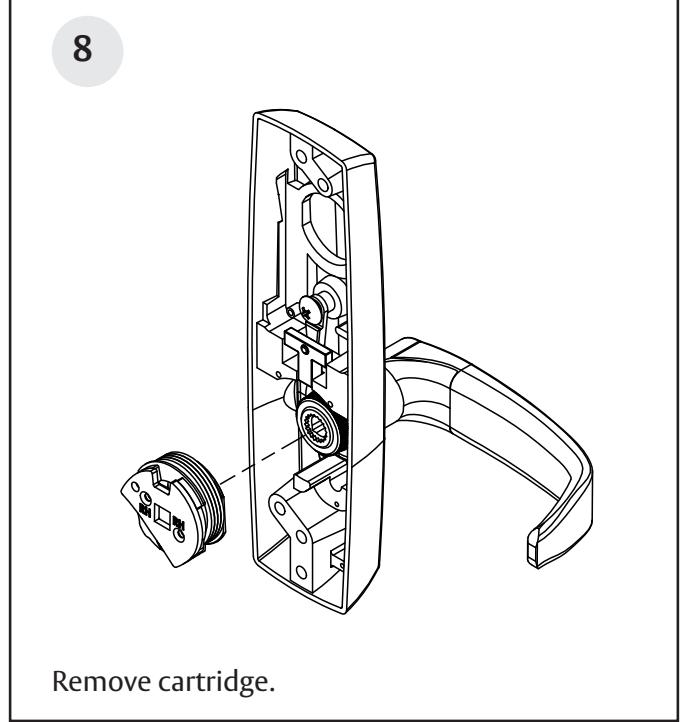

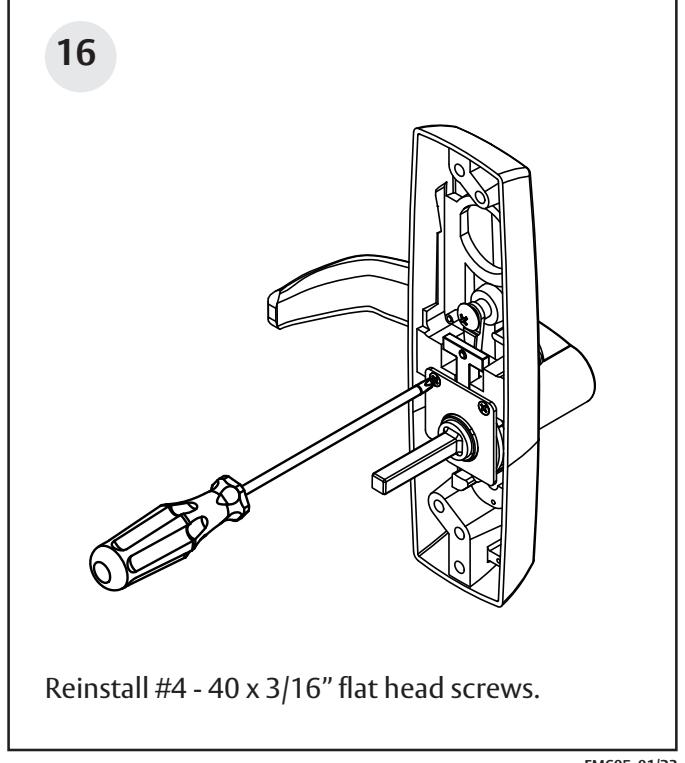

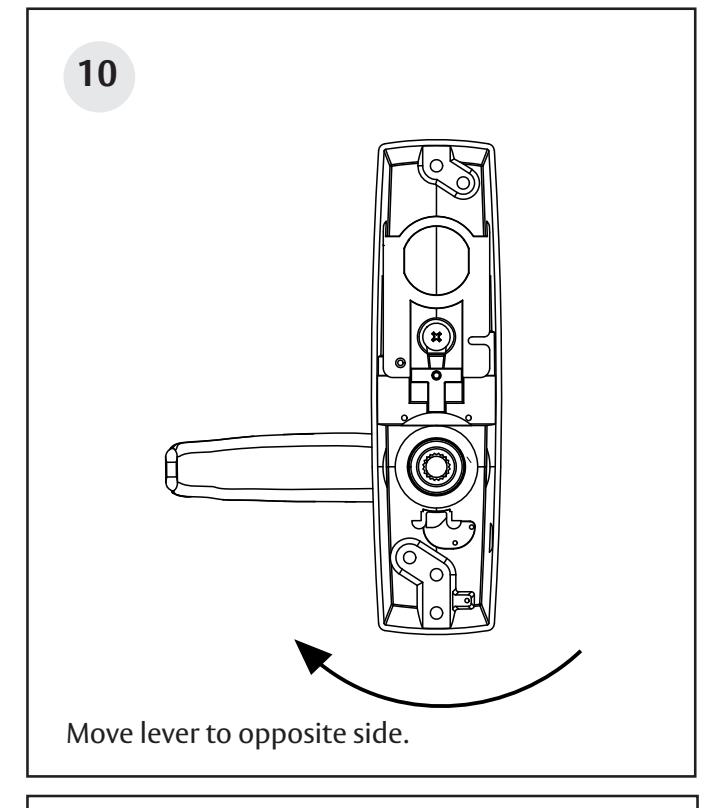

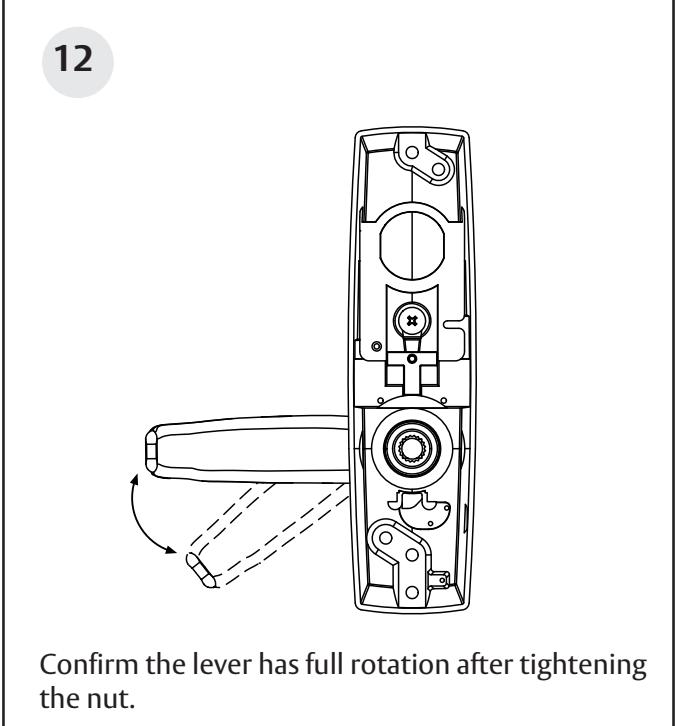

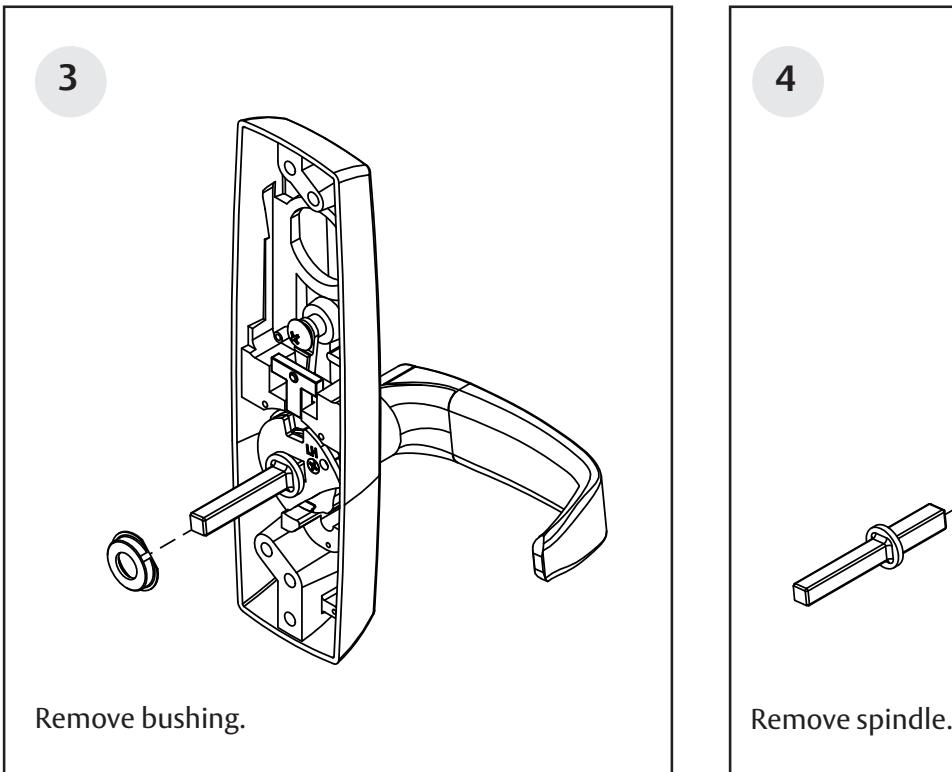

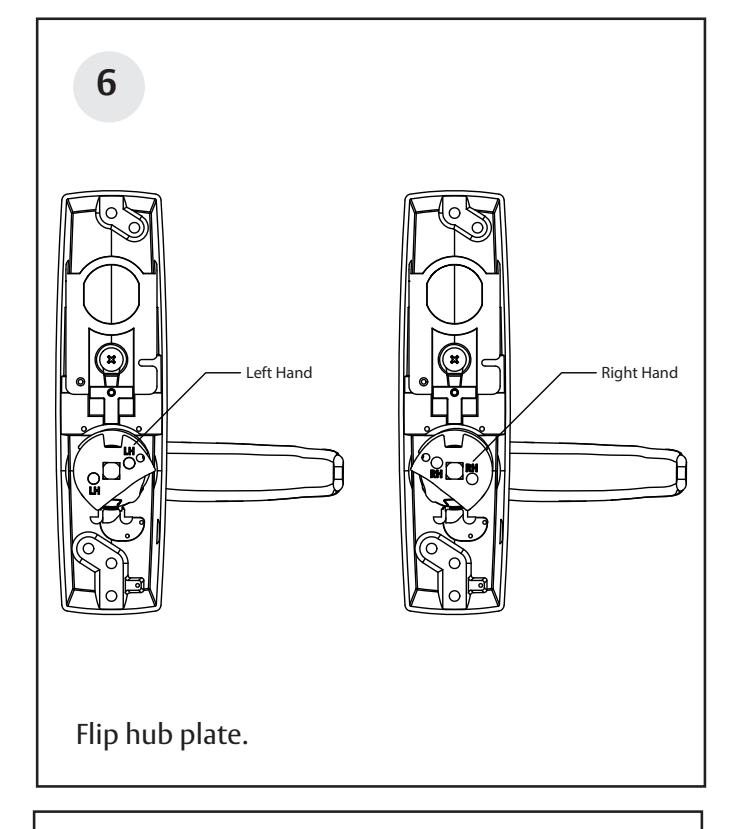

Trim Lever Handing

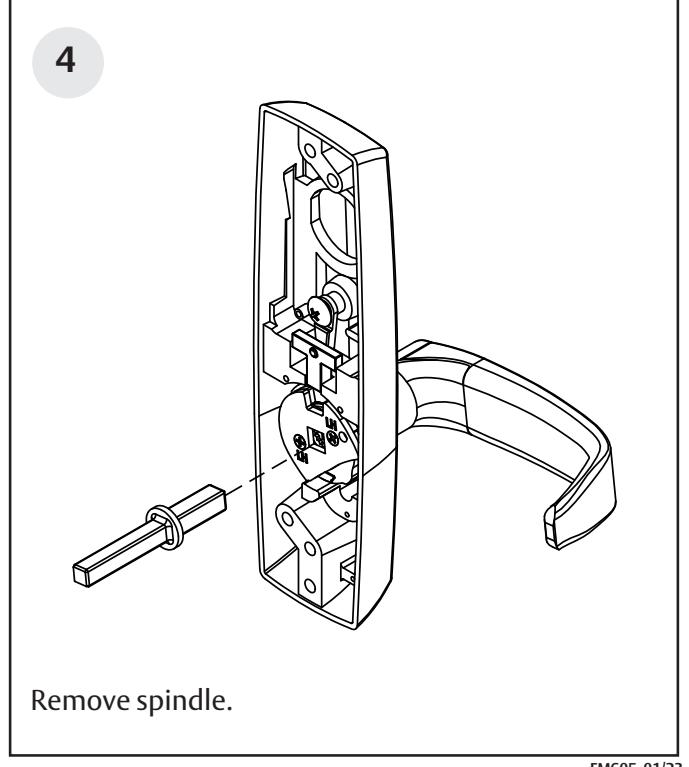

Corbin Russwin 800PT & 900PT Lever Handle with Exit Trim Spindle Interaction for PED4000 and PED5000 Series Narr…_FM605 image

Corbin Russwin 800PT & 900PT Lever Handle with Exit Trim Spindle Interaction for PED4000 and PED5000 Series Narr…_FM605 image

Corbin Russwin 800PT & 900PT Lever Handle with Exit Trim Spindle Interaction for PED4000 and PED5000 Series Narr…_FM605 image

Corbin Russwin 800PT & 900PT Lever Handle with Exit Trim Spindle Interaction for PED4000 and PED5000 Series Narr…_FM605 image

Lever Handle with Exit Trim

Installation Instructions

Corbin Russwin 800PT & 900PT Lever Handle with Exit Trim Spindle Interaction for PED4000 and PED5000 Series Narr…_FM605 image

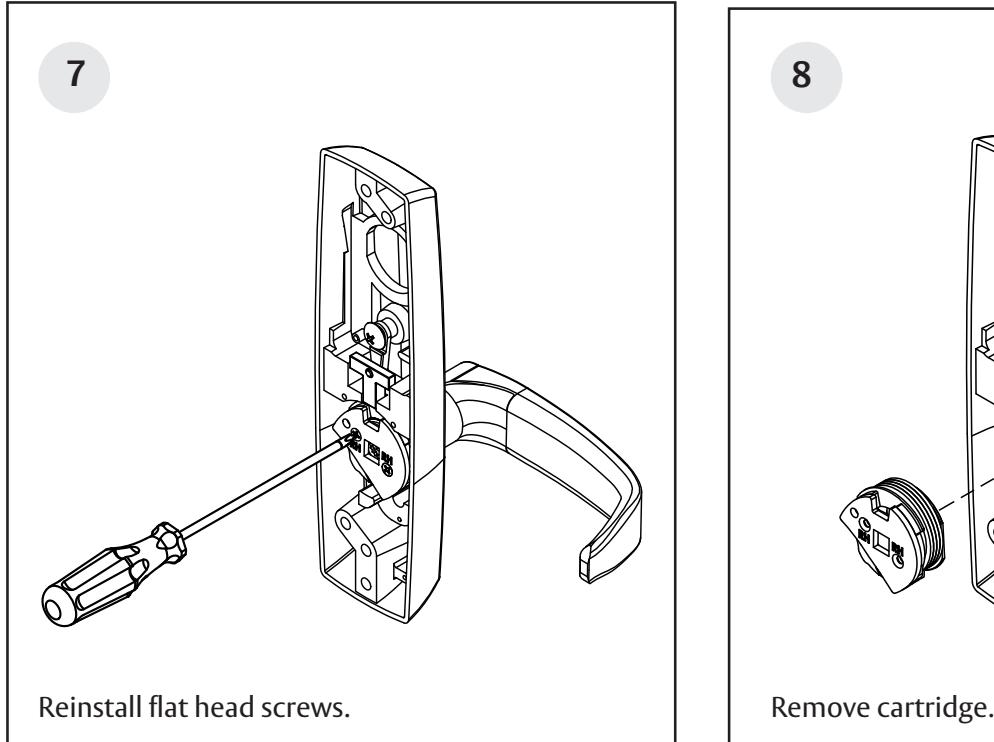

Corbin Russwin 800PT & 900PT Lever Handle with Exit Trim Spindle Interaction for PED4000 and PED5000 Series Narr…_FM605 image

Corbin Russwin 800PT & 900PT Lever Handle with Exit Trim Spindle Interaction for PED4000 and PED5000 Series Narr…_FM605 image

Corbin Russwin 800PT & 900PT Lever Handle with Exit Trim Spindle Interaction for PED4000 and PED5000 Series Narr…_FM605 image

Corbin Russwin 800PT & 900PT Lever Handle with Exit Trim Spindle Interaction for PED4000 and PED5000 Series Narr…_FM605 image

Lever Handle with Exit Trim

Installation Instructions

Corbin Russwin 800PT & 900PT Lever Handle with Exit Trim Spindle Interaction for PED4000 and PED5000 Series Narr…_FM605 image

Corbin Russwin 800PT & 900PT Lever Handle with Exit Trim Spindle Interaction for PED4000 and PED5000 Series Narr…_FM605 image

Corbin Russwin 800PT & 900PT Lever Handle with Exit Trim Spindle Interaction for PED4000 and PED5000 Series Narr…_FM605 image

Corbin Russwin 800PT & 900PT Lever Handle with Exit Trim Spindle Interaction for PED4000 and PED5000 Series Narr…_FM605 image

Corbin Russwin 800PT & 900PT Lever Handle with Exit Trim Spindle Interaction for PED4000 and PED5000 Series Narr…_FM605 image

Lever Handle with Exit Trim

Installation Instructions

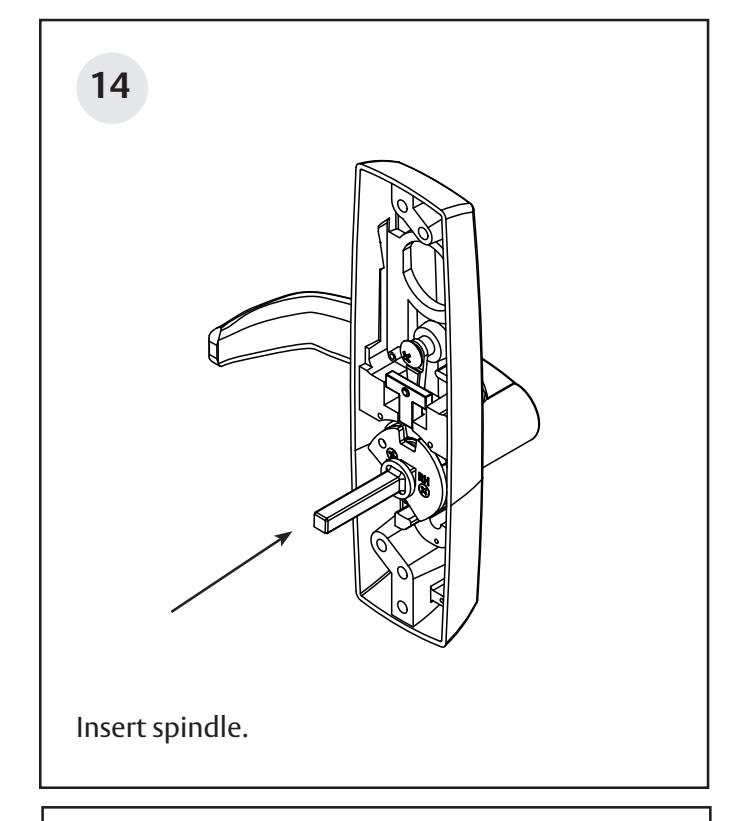

Corbin Russwin 800PT & 900PT Lever Handle with Exit Trim Spindle Interaction for PED4000 and PED5000 Series Narr…_FM605 image

Corbin Russwin 800PT & 900PT Lever Handle with Exit Trim Spindle Interaction for PED4000 and PED5000 Series Narr…_FM605 image

Corbin Russwin 800PT & 900PT Lever Handle with Exit Trim Spindle Interaction for PED4000 and PED5000 Series Narr…_FM605 image

Corbin Russwin 800PT & 900PT Lever Handle with Exit Trim Spindle Interaction for PED4000 and PED5000 Series Narr…_FM605 image

Corbin Russwin 800PT & 900PT Lever Handle with Exit Trim Spindle Interaction for PED4000 and PED5000 Series Narr…_FM605 image

Lever Handle with Exit Trim

Installation Instructions

Corbin Russwin 800PT & 900PT Lever Handle with Exit Trim Spindle Interaction for PED4000 and PED5000 Series Narr…_FM605 image

Corbin Russwin 800PT & 900PT Lever Handle with Exit Trim Spindle Interaction for PED4000 and PED5000 Series Narr…_FM605 image
