Installation Instructions

800PT & 900PT Series

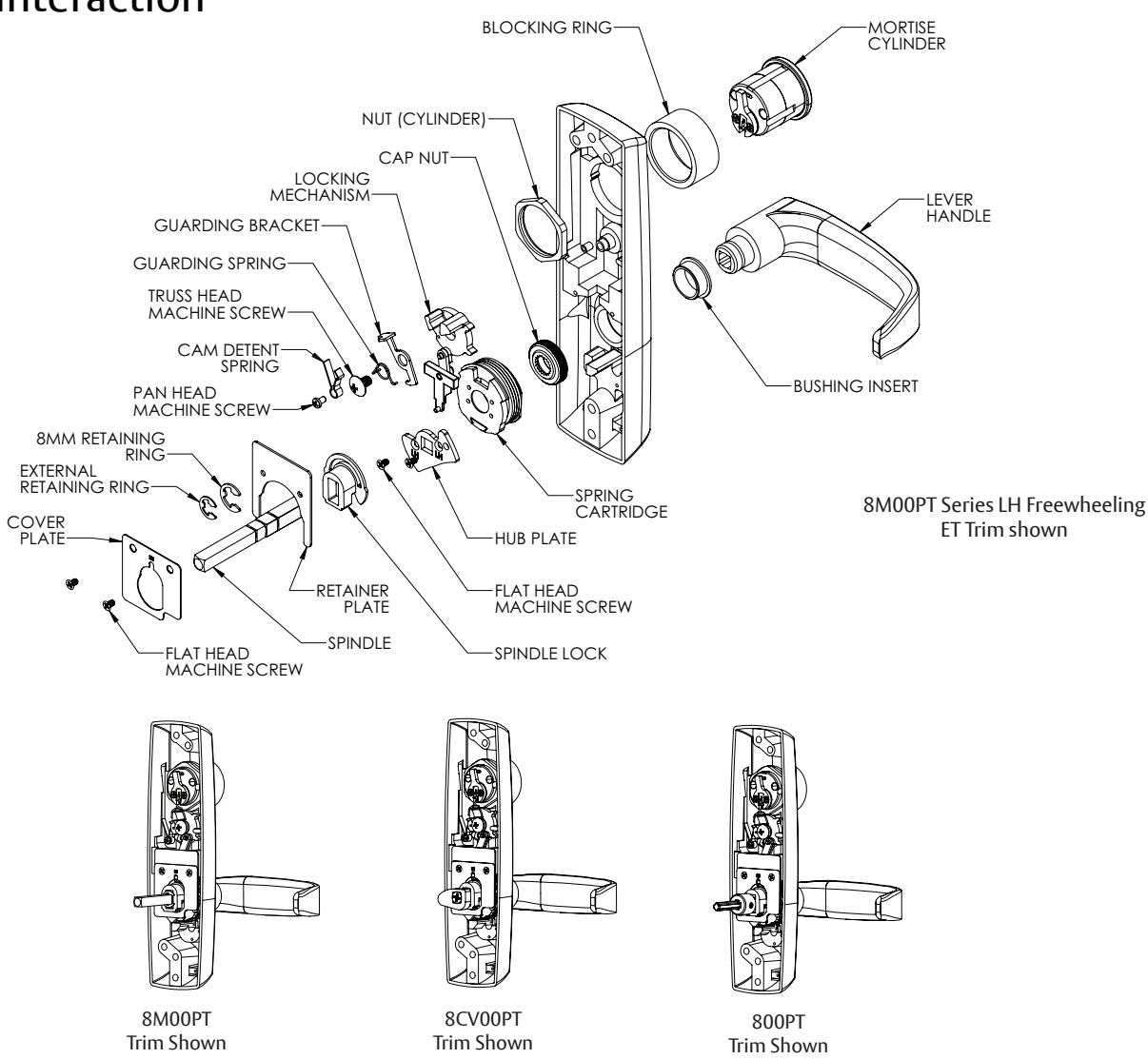

Freewheeling Lever Handle with Exit Device Spindle Interaction

Attention Installer: Improper installation may result in damage to the product and void the factory warranty.

Freewheeling Lever Handle with Exit Device

Installation Instructions

800PT / 900PT Series trim used with PED5200, PED5200 A, PED5200 HC, and PED5200 A HC rim type exit devices.

Important: See instruction sheet FM577 for PED5200 (A) AND PED5200 (A) HC and FM578 for PED4200 exit devices mounting. Securely fasten adapter to spindle with set screw before mounting.

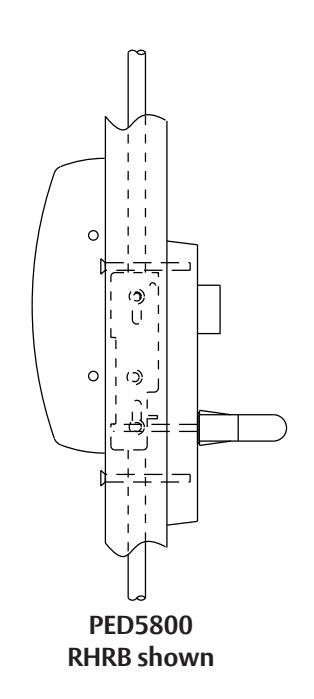

8CV00PT / 9CV00PT Series trim used with PED4800, PED4800A MD, PED5800 MD, PED5800 A MD, PED5800 WD and PED5800 A WD concealed vertical rod exit devices.

Important: See proper instruction sheet for exit device mounting.

FM582 - For PED4800 and PED4800 A

FM608 - For PED5800 WD and PED5800 A WD

FM581 - For PED5800 MD and PED5800 A MD

FM606 01/23

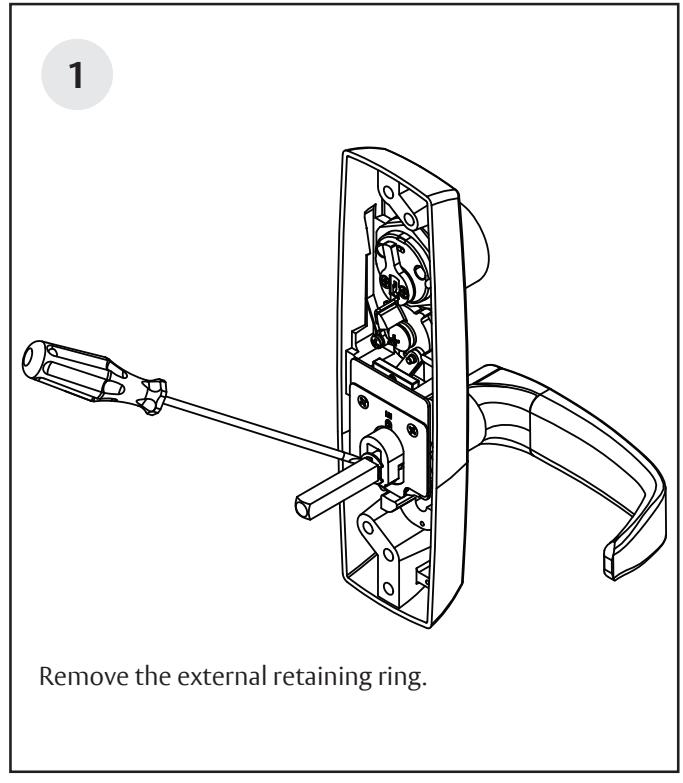

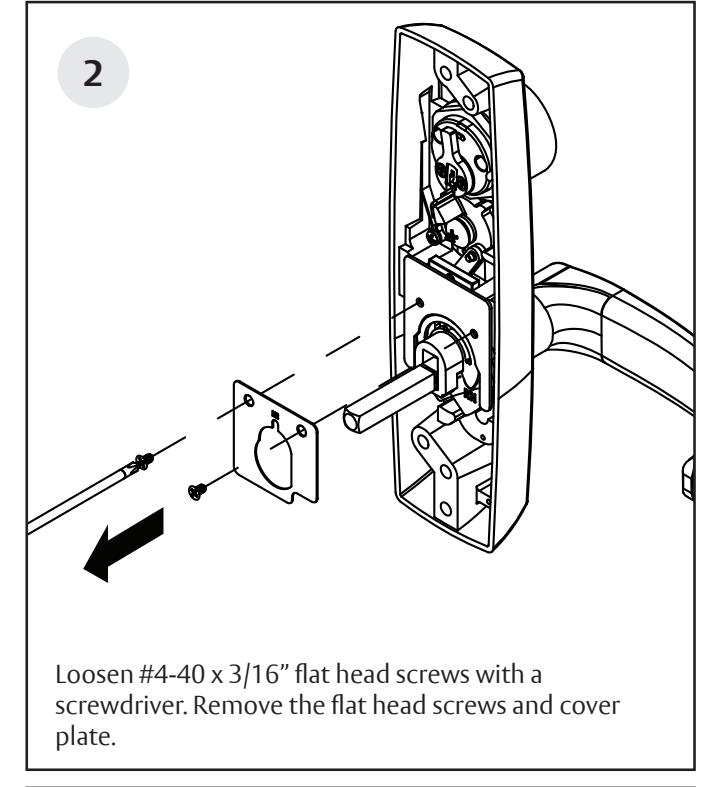

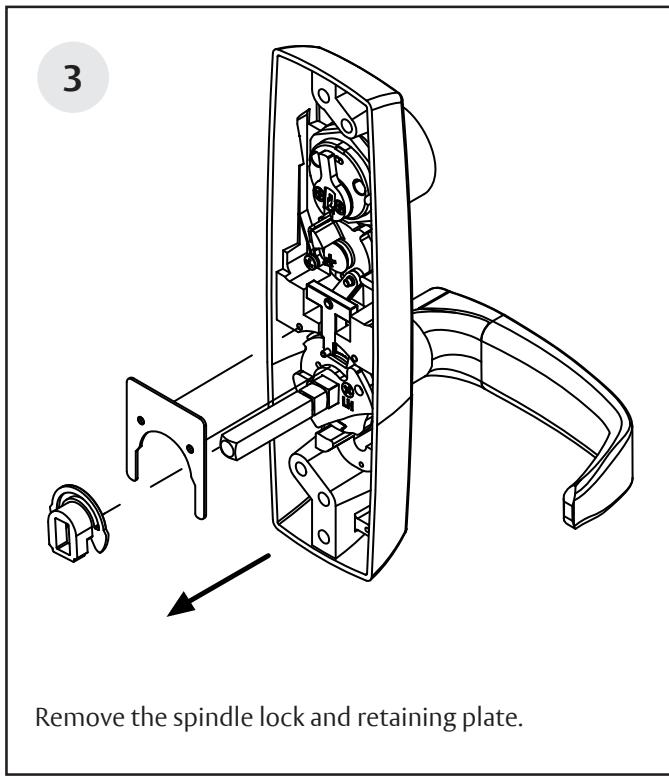

Freewheeling Lever Handle with Exit Device

Installation Instructions

FM606 01/23

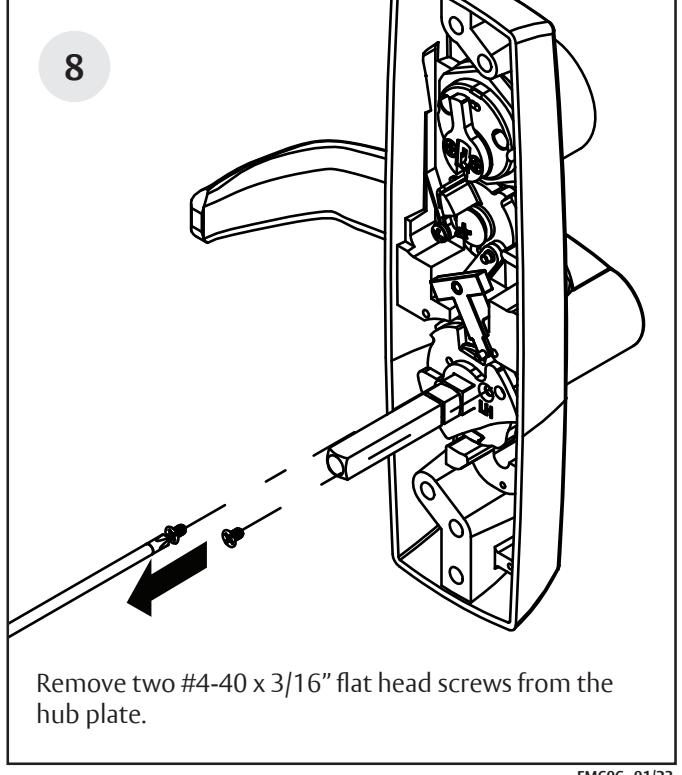

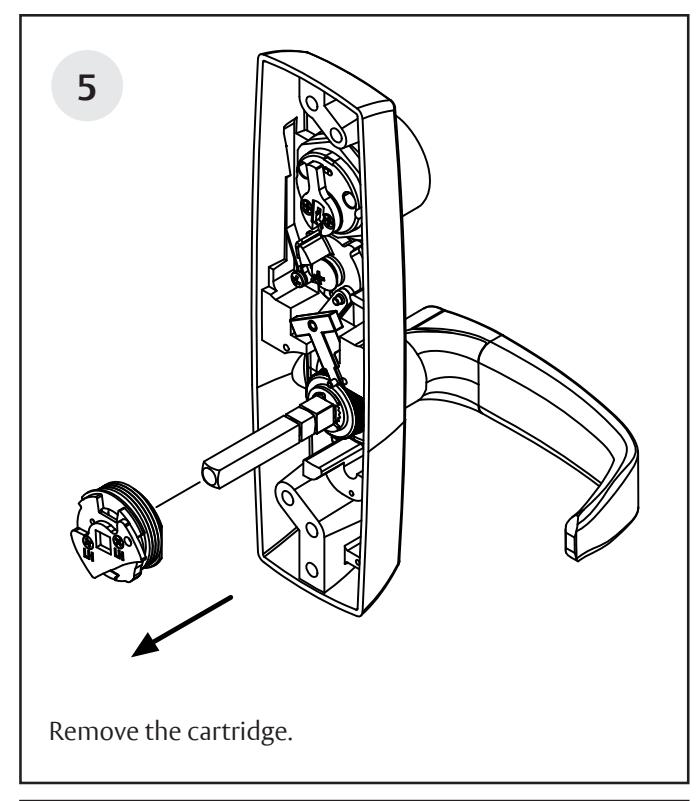

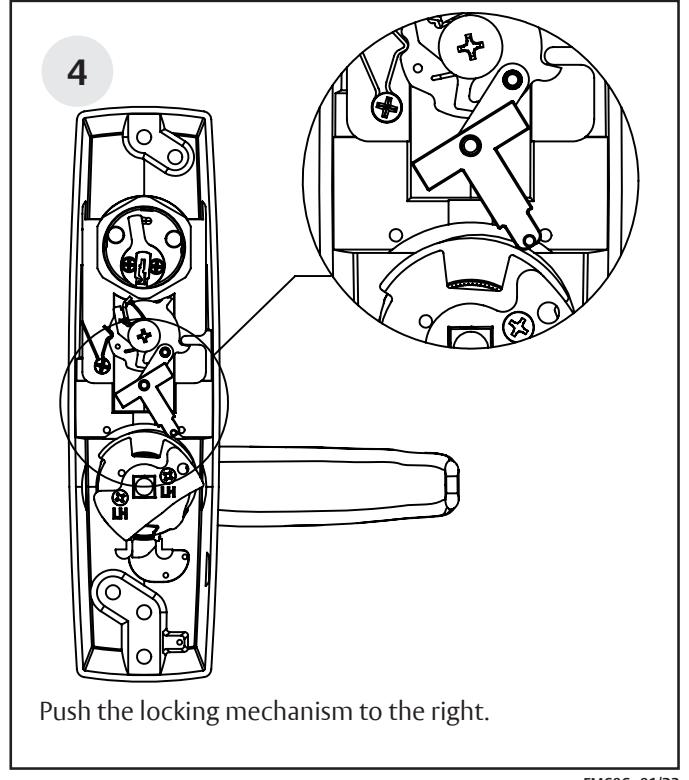

Freewheeling Lever Handle with Exit Device

Installation Instructions

FM606 01/23

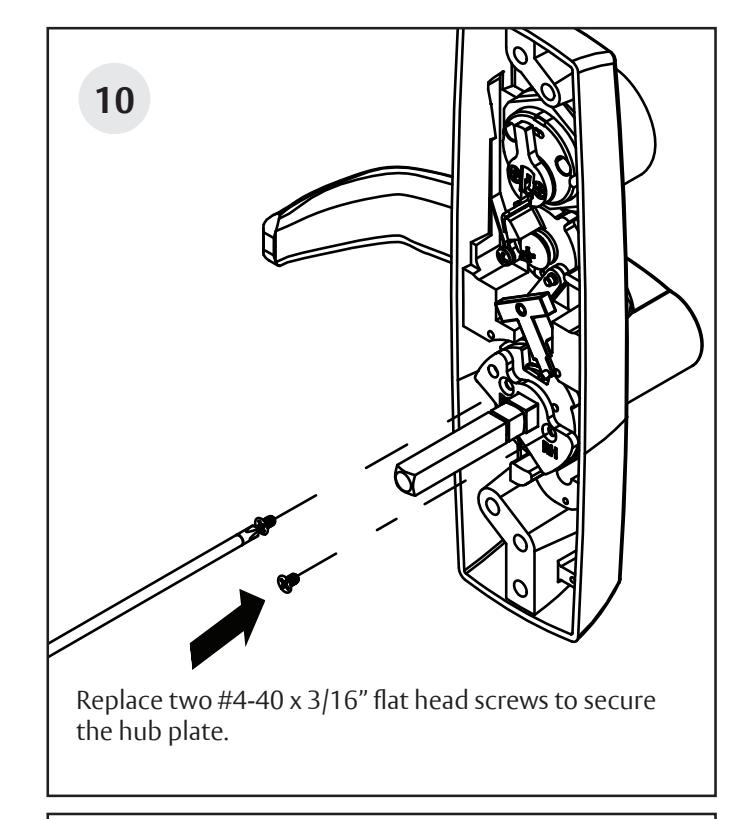

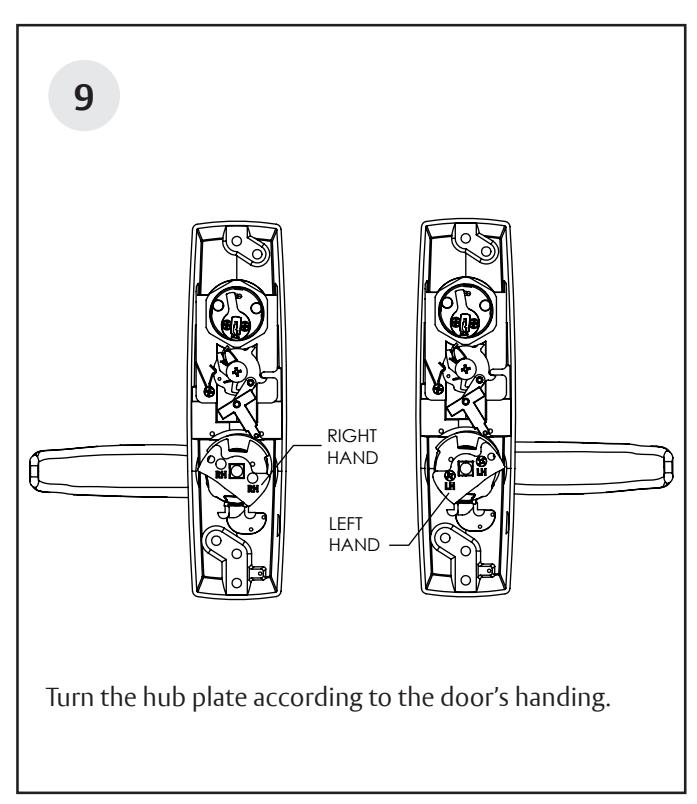

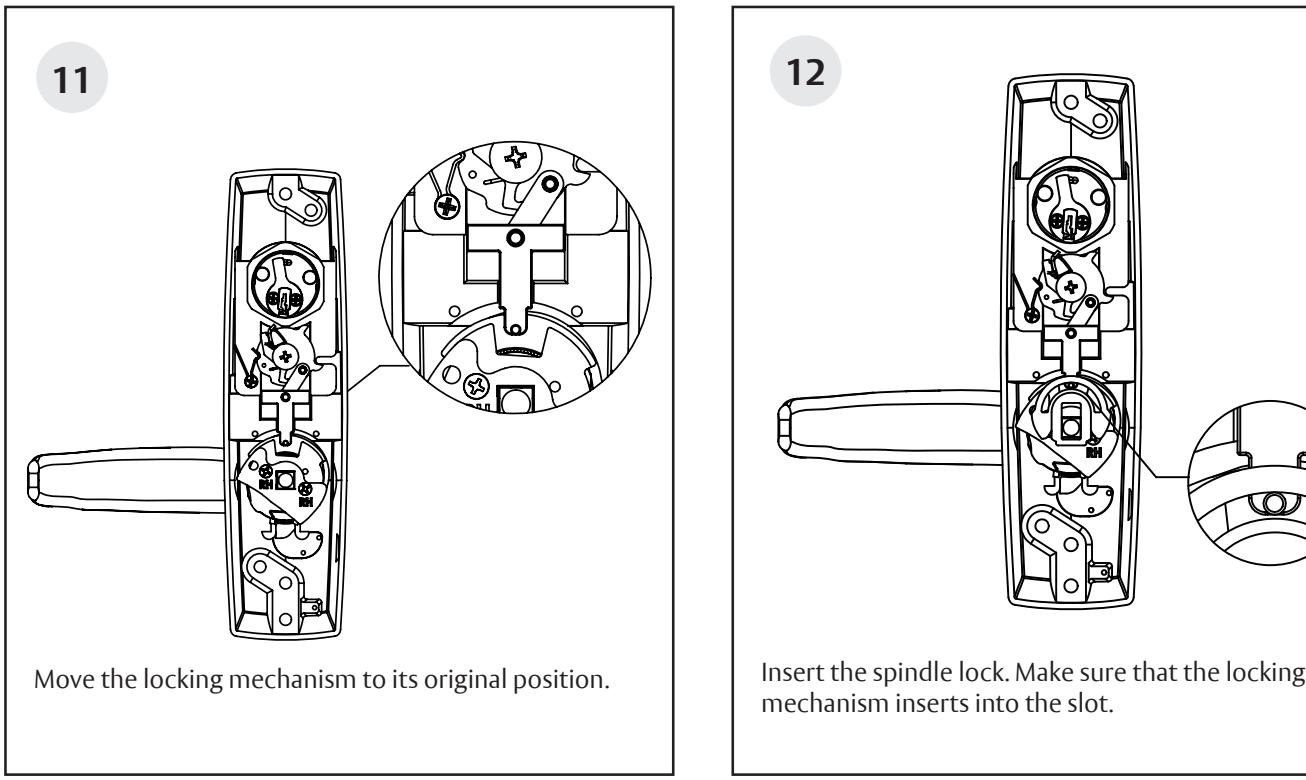

Freewheeling Lever Handle with Exit Device

Installation Instructions

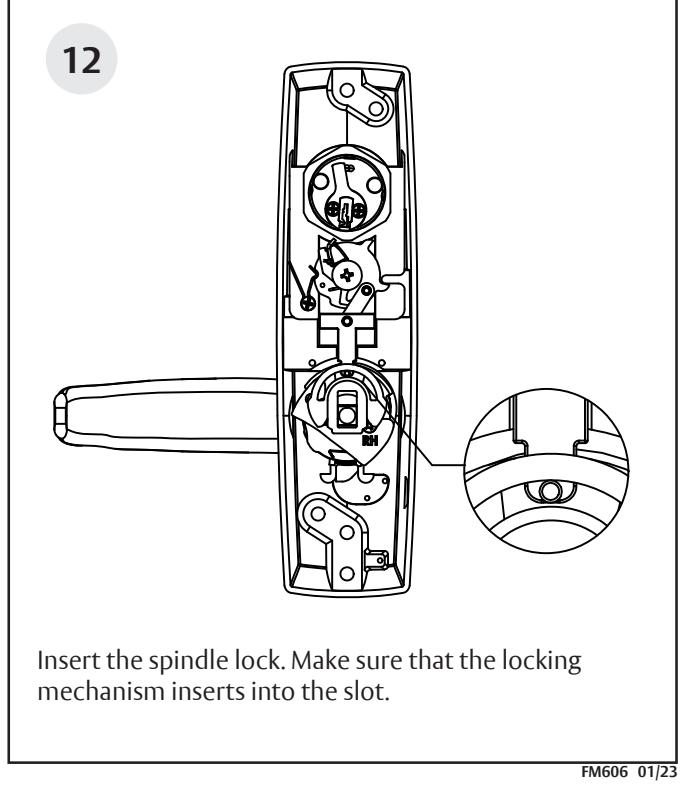

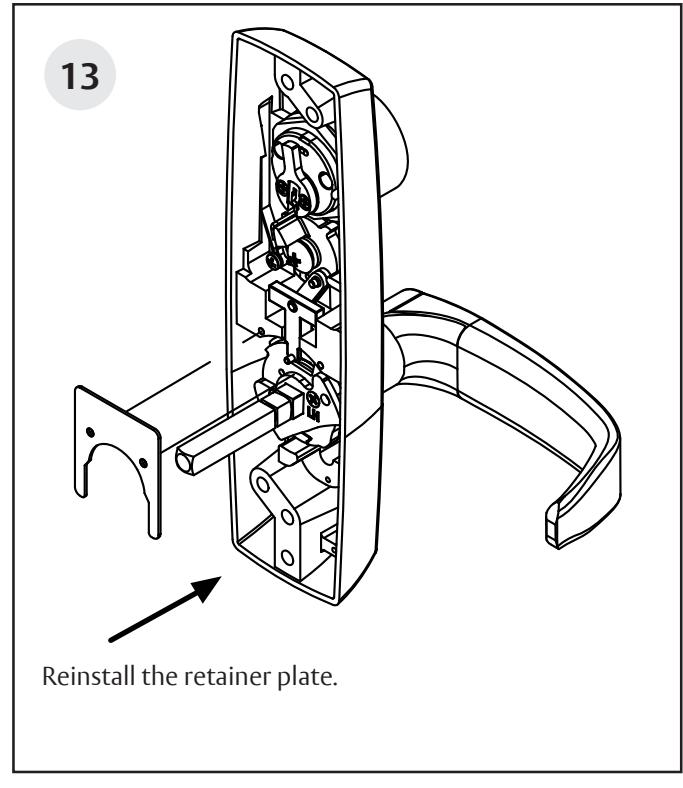

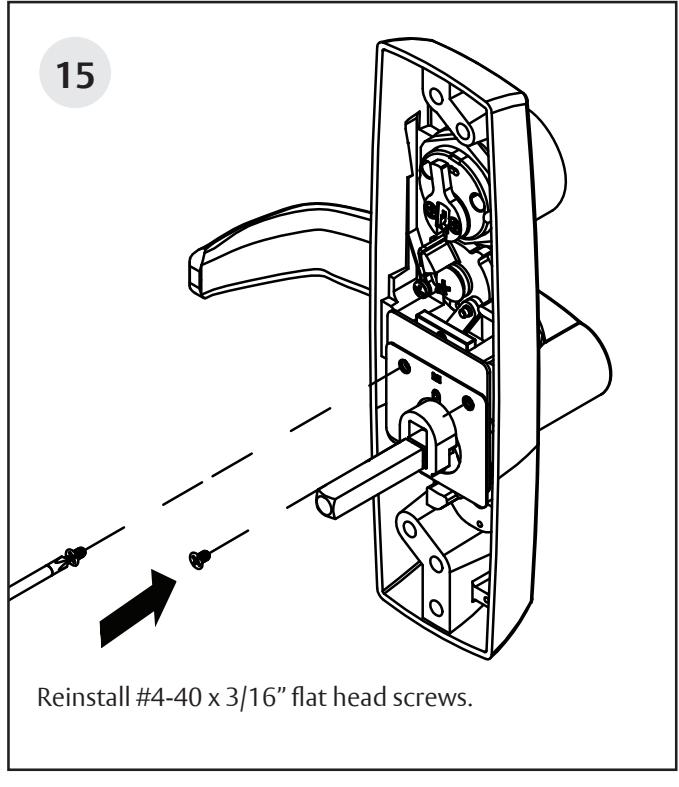

Freewheeling Lever Handle with Exit Device

Installation Instructions

FM606 01/23

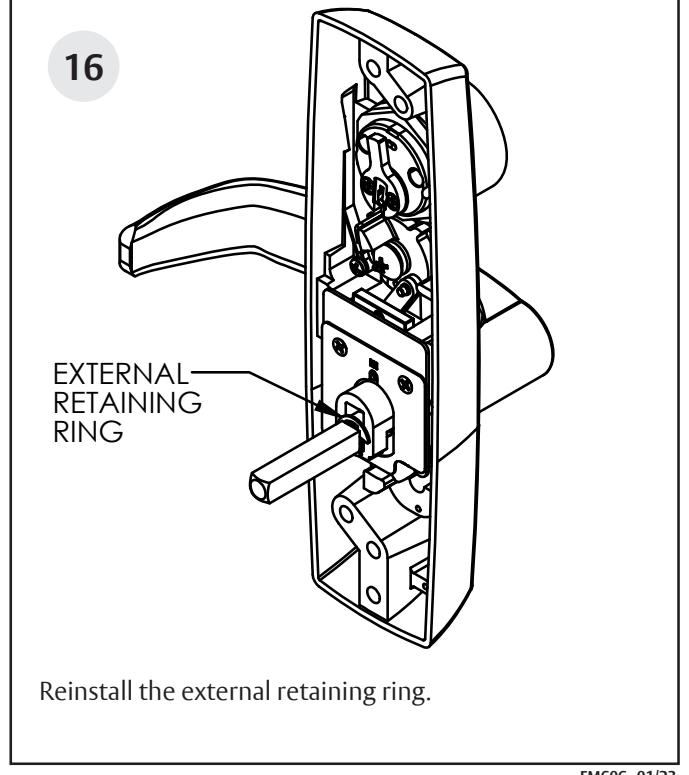

Freewheeling Lever Handle with Exit Device

Installation Instructions
