Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. For door reinforcement see template T30800.
  • 6. Prepare mounting holes when installing trim.
  • 7. Provide adequate internal support to prevent door deformation after trim is bolted to the device.

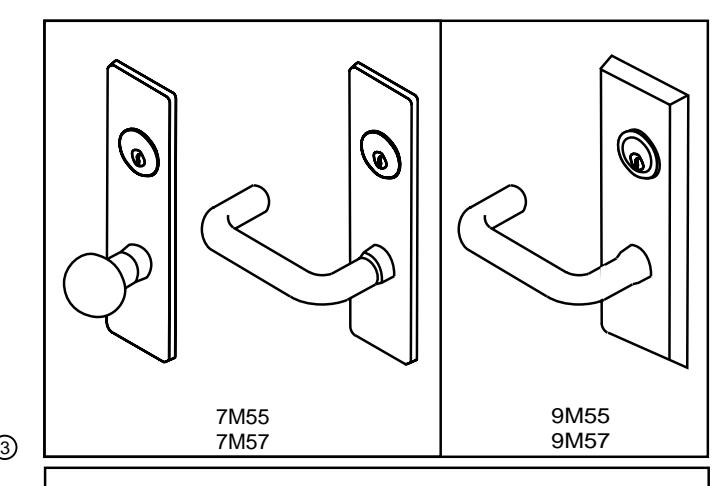

Corbin Russwin 7M55,7M57,9M55 & 9M57 Trim Metal Template_T30829 image on page 1

Note: Lever and knob prefix does not affect door prep.

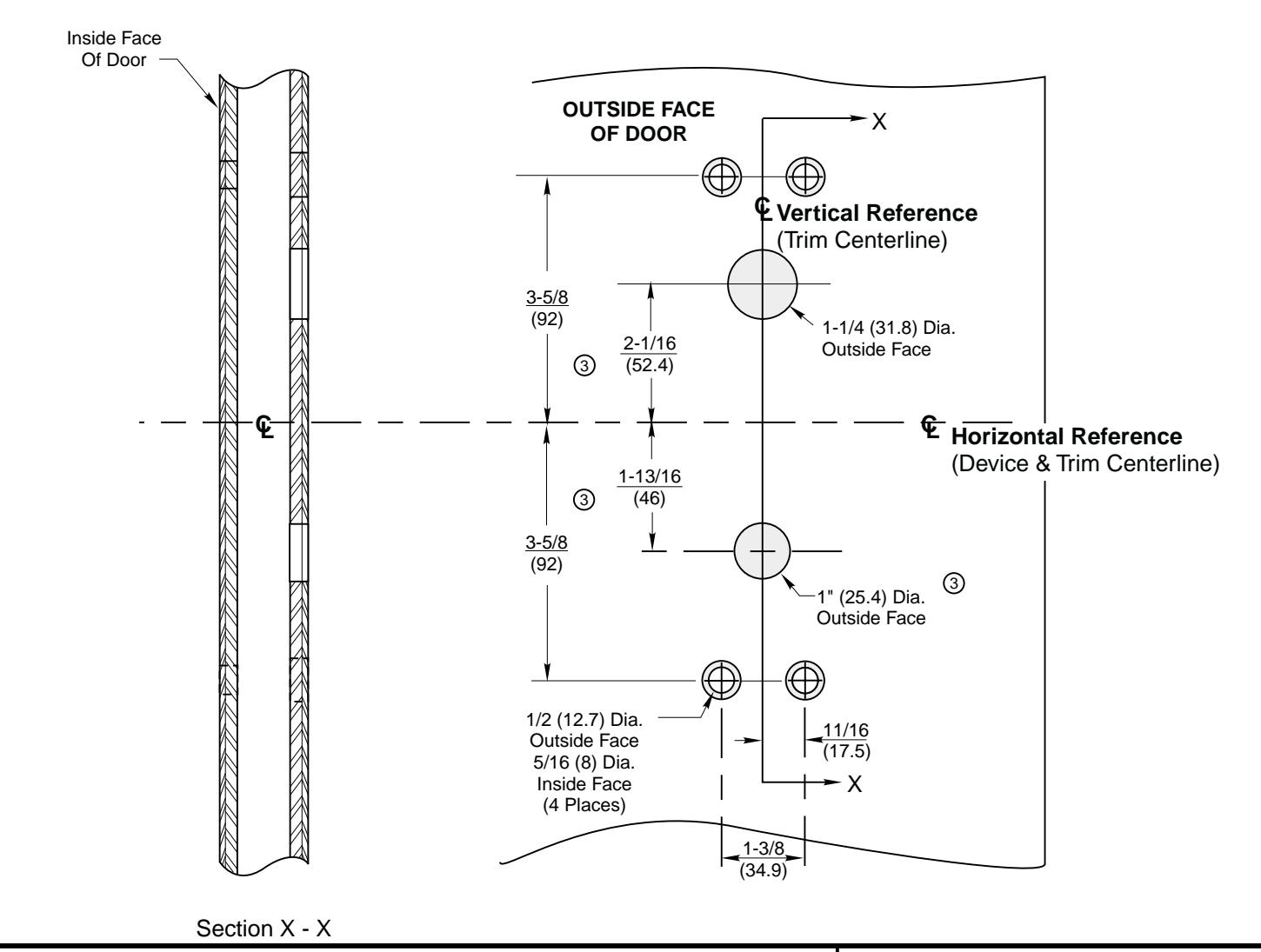

Corbin Russwin 7M55,7M57,9M55 & 9M57 Trim Metal Template_T30829 diagram on page 1

7M55, 7M57, 9M55 & 9M57 Series Trim Metal Door Preparation With ED5600 Series Mortise Exit Devices

® www.corbinrusswin.com

DO NOT SCALE DRAWING SUPERSEDES T30829-2

TEMPLATE NUMBER DATE T30829-3 10-01
