Notes:

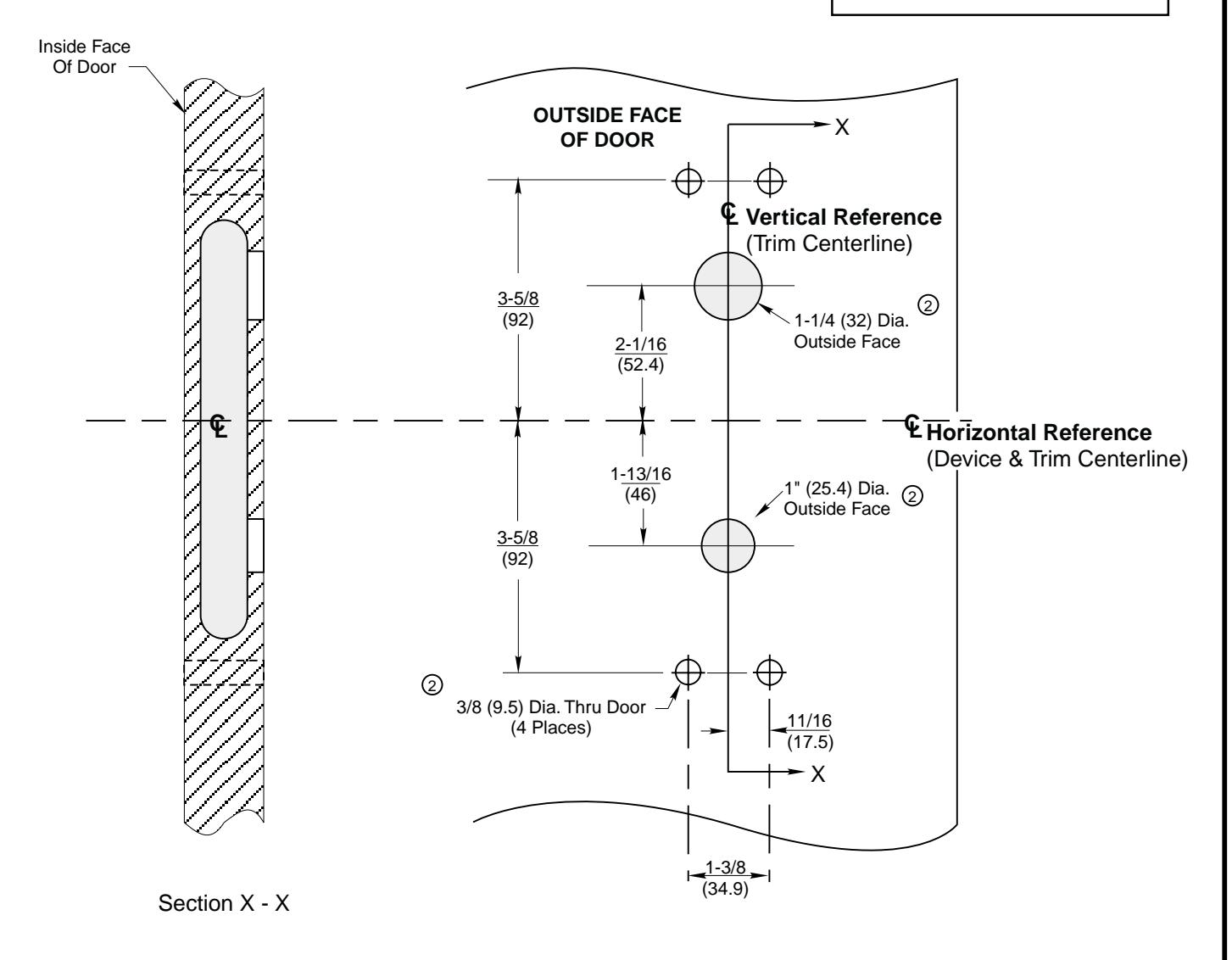

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. Shaded area represents mortise lock cavity from device template.
  • 6. Prepare mounting holes when installing trim.
  • 7. Provide adequate structural support to maintain door integrity during operation.

Corbin Russwin 7M55 and 7M57 Trim for ED5600 Wide Stile Mortise Wood or Composite Door Template_T30865 image on page 1

Note: Lever and knob prefix does not affect door prep.

2

Corbin Russwin 7M55 and 7M57 Trim for ED5600 Wide Stile Mortise Wood or Composite Door Template_T30865 image on page 1

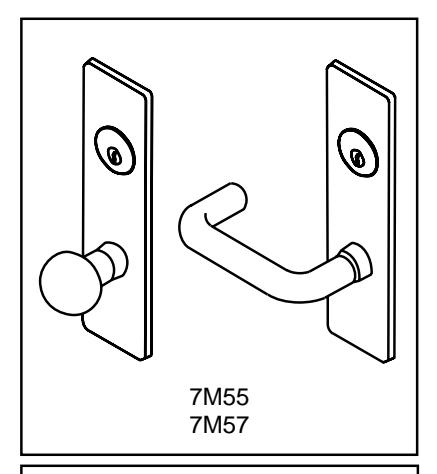

7M55 7M57 Series Trim Wood or Composite Door Preparation & With ED5600 Series Mortise Exit Devices

Corbin Russwin 7M55 and 7M57 Trim for ED5600 Wide Stile Mortise Wood or Composite Door Template_T30865 image on page 1

www.corbinrusswin.com

T30865-1

DO NOT SCALE DRAWING SUPERSEDES

T30865-2 TEMPLATE NUMBER DATE

10-01
