Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. For door reinforcement see template T30800.
  • 6. Prepare mounting holes when installing trim.
  • 7. Provide adequate internal support to prevent door deformation after trim is bolted to the device.

Corbin Russwin 7M10, 7M50, 9M10, and 9M50 Trim for ED5600 Wide Stile Mortise Metal Door Template_T30830 image on page 1

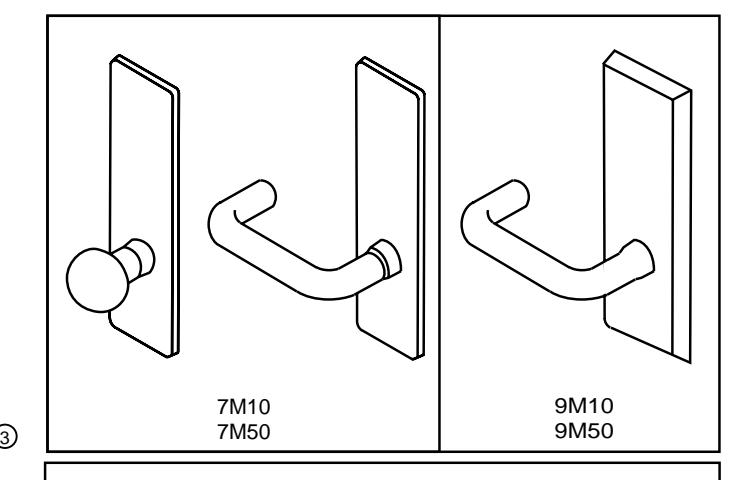

Note: Lever and knob prefix does not affect door prep.

Corbin Russwin 7M10, 7M50, 9M10, and 9M50 Trim for ED5600 Wide Stile Mortise Metal Door Template_T30830 image on page 1

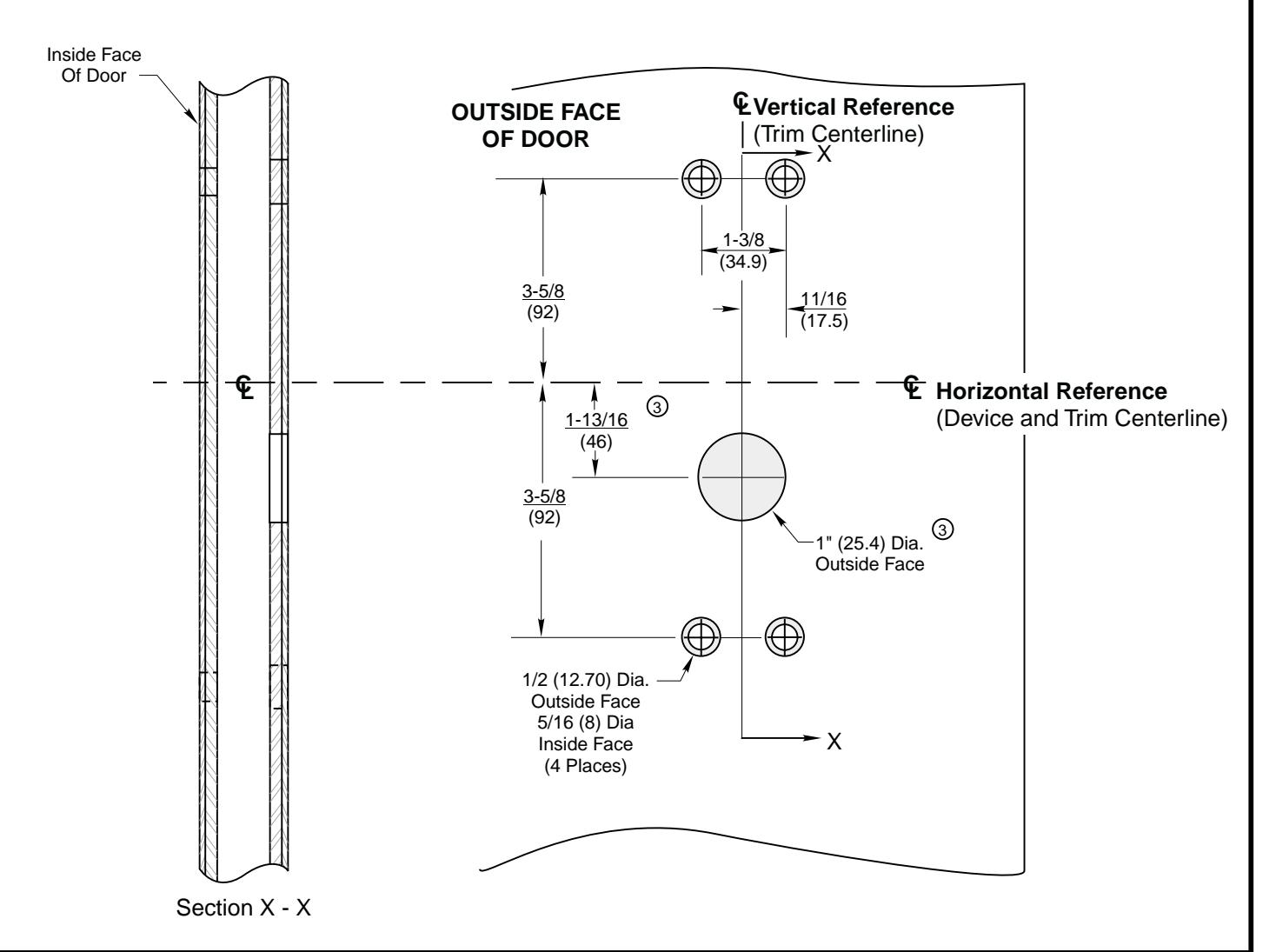

7M10, 7M50, 9M10 or 9M50 Series Trim Metal Door Preparation With ED5600 Series Mortise Exit Devices

Corbin Russwin 7M10, 7M50, 9M10, and 9M50 Trim for ED5600 Wide Stile Mortise Metal Door Template_T30830 image on page 1

DO NOT SCALE DRAWING SUPERSEDES T30830-2

TEMPLATE NUMBER DATE T30830-3 10-01
