Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. For door reinforcement see template T30800.
  • 6. Prepare mounting holes when installing trim.
  • 7. Provide adequate internal support to prevent door deformation after trim is bolted to the device.
  • 8. Dimensions given about a centerline are symmetrical.
  • 9. Unspecified radii 1/8 (3) maximum.

Corbin Russwin 755, 759, 955, and 959 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, SecureBolt, CVR, SVR Metal…_T30819 imag

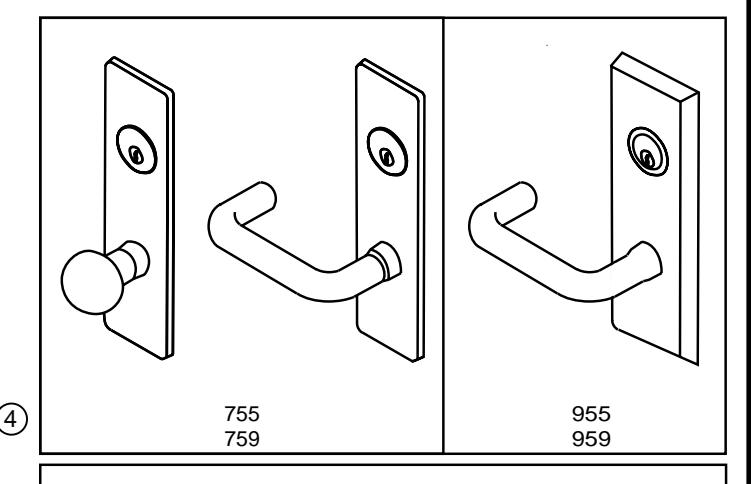

Note: Lever and knob prefix does not affect door prep.

Corbin Russwin 755, 759, 955, and 959 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, SecureBolt, CVR, SVR Metal…_T30819 imag

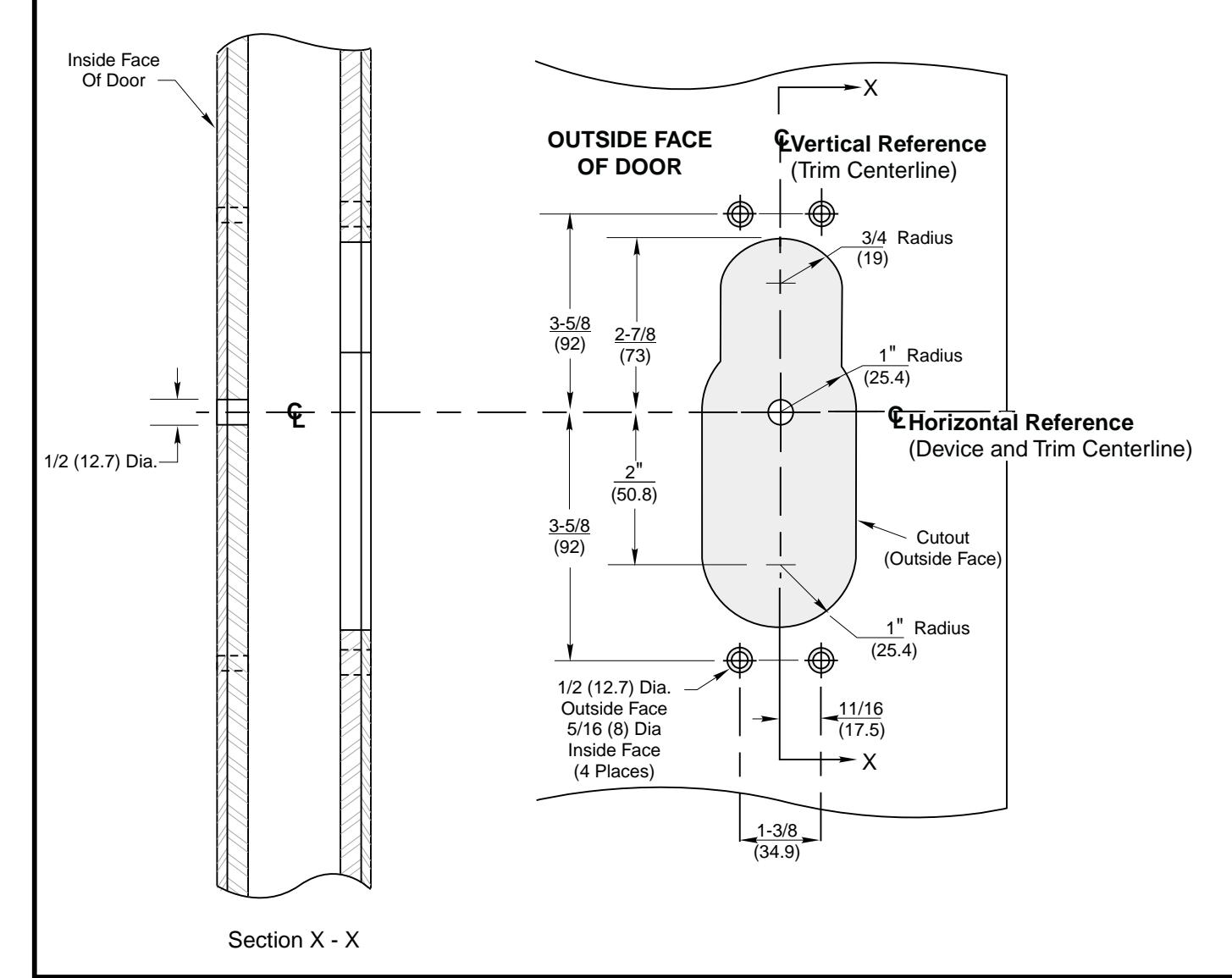

755, 759, 955 & 959 Series Trim Metal Door Preparation With ED5200, ED5400 or ED5800 Series Rim, SecureBolt, and Vertical Rod Exit Devices

Corbin Russwin 755, 759, 955, and 959 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, SecureBolt, CVR, SVR Metal…_T30819 imag

www.corbinrusswin.com

T30819-3

DO NOT SCALE DRAWING SUPERSEDES

TEMPLATE NUMBER DATE T30819-4 10-01
