Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. Provide adequate internal support to maintain door integrity during operation.
  • 6. Prepare mounting holes when installing trim.

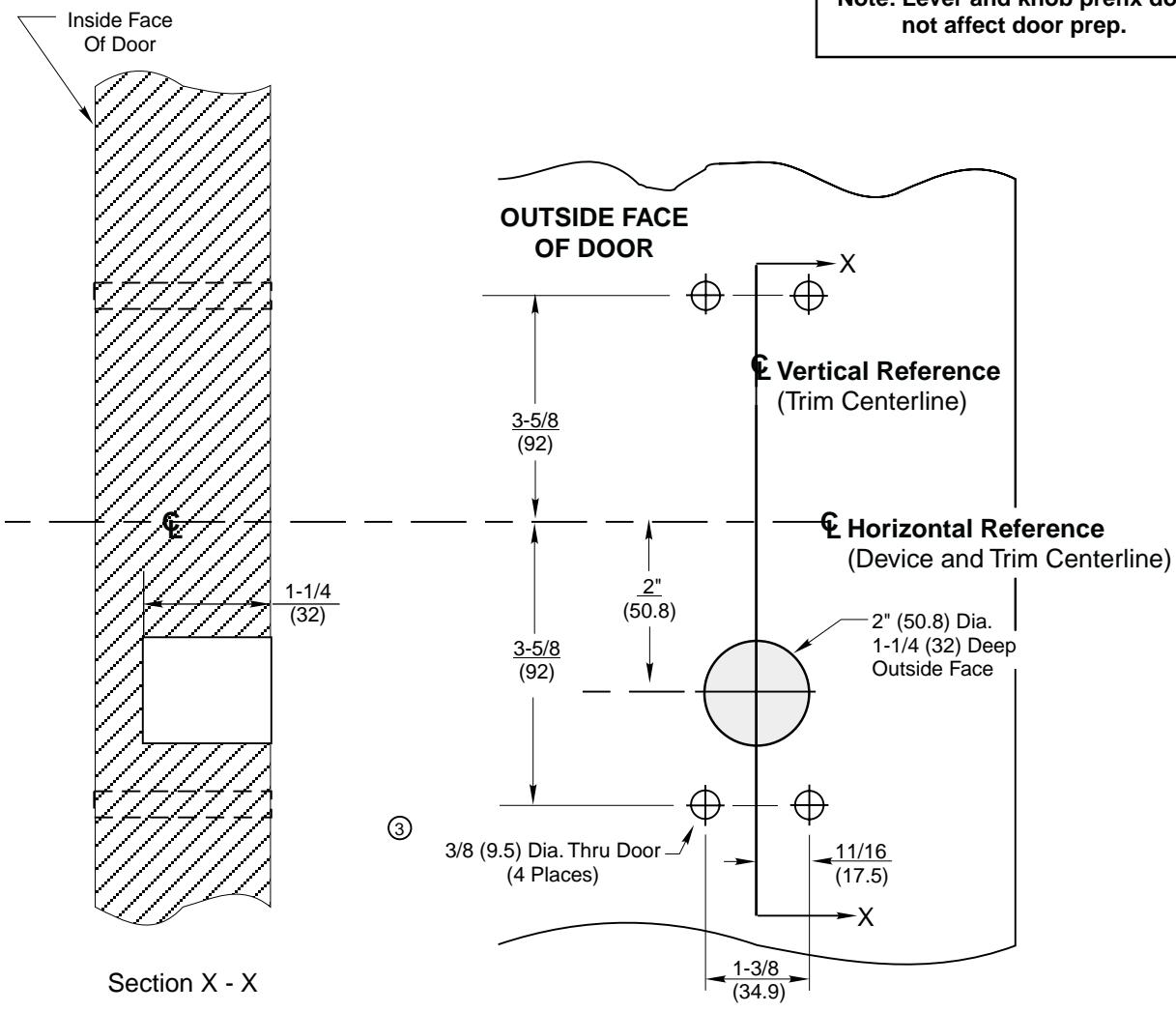

Corbin Russwin 750 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, SecureBolt, CVR, SVR Wood or Composite Door T…_T30857 imag

Note: Lever and knob prefix does not affect door prep.

3

Corbin Russwin 750 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, SecureBolt, CVR, SVR Wood or Composite Door T…_T30857 diag

750 Series Trim

Wood or Composite Door Preparation With ED5200, ED5400 or ED5800 Series Rim, SecureBolt, and Vertical Rod Exit Devices

Corbin Russwin 750 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, SecureBolt, CVR, SVR Wood or Composite Door T…_T30857 imag

www.corbinrusswin.com

T30857-2 DO NOT SCALE DRAWING SUPERSEDES

T30857-3 10-01 TEMPLATE NUMBER DATE
