Installation Instructions for Thermal Pin

For use on 5000 Series -ED5470B SVR and ED5860B CVR Fire Rated Doors with Less Bottom Rod (M55).

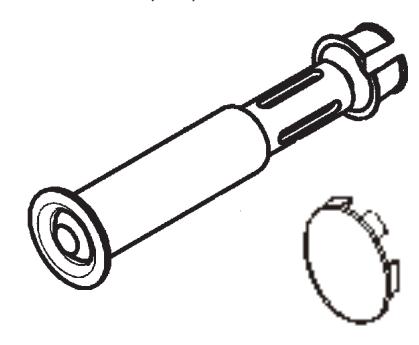

Corbin Russwin 744F688 Thermal Pin for ED5000 Series ED5470B, ED5860B Wide Stile CVR, SVR M55 Option Installatio…_FM547 image

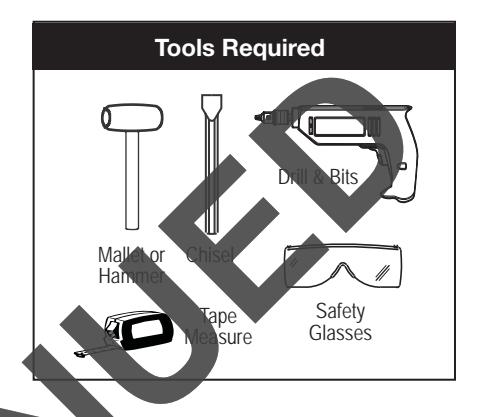

NOTES:

  • This device is designed to be installed horizontally between door leafs or vertically between door leaf and finished floor.
  • This device may be installed on single or double doors.
  • Extreme heat will activate this device.
  • Install door(s) per the manufactures' instructions. The doors should be square and plumb and have the correct gars between the door(s) and finished floor.
  • Note dimensions on figures to consure correct boation of pin and cap. Figures not to scale. Dimensions are given in inches(") and millimeters(mm).

Corbin Russwin 744F688 Thermal Pin for ED5000 Series ED5470B, ED5860B Wide Stile CVR, SVR M55 Option Installatio…_FM547 image

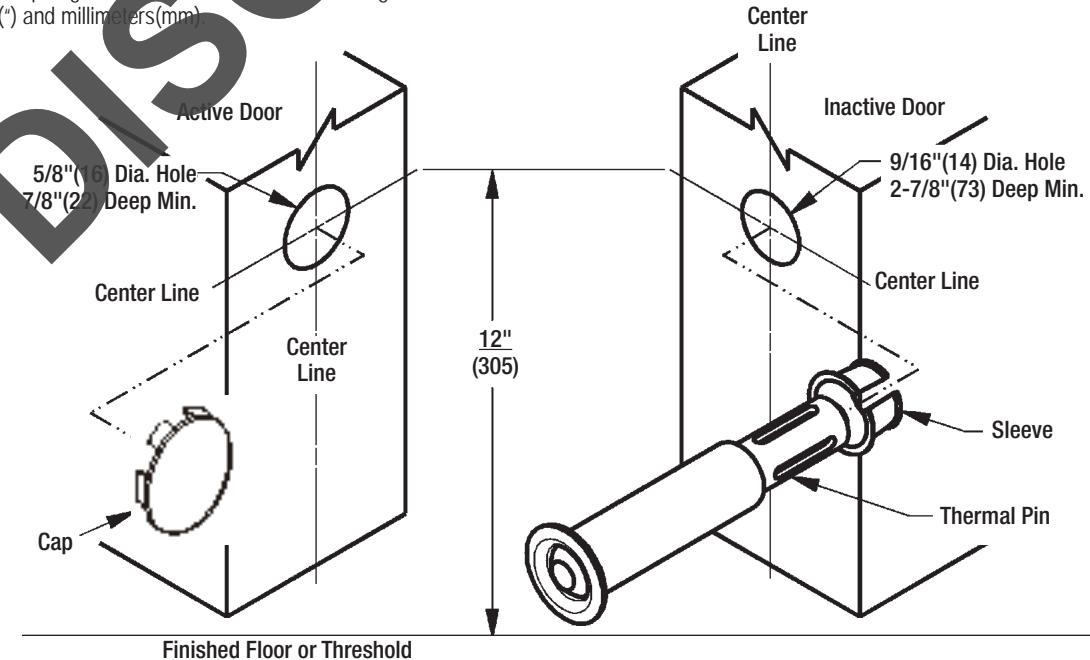

For Horizontal Installation Between Door Leafs:

  • 1. Drill 5/8"(16) diameter hole as shown in "Active" leaf of door edge. Install cap (plug). (Do not install in stationary door).
  • Drill 9/16"(14) diameter hole as shown in "Inactive" leaf of door edge. Chisel out debris to smooth.

Corbin Russwin 744F688 Thermal Pin for ED5000 Series ED5470B, ED5860B Wide Stile CVR, SVR M55 Option Installatio…_FM547 image

Corbin Russwin 744F688 Thermal Pin for ED5000 Series ED5470B, ED5860B Wide Stile CVR, SVR M55 Option Installatio…_FM547 image

5000 Series Accessories

744F688

For additional information or assistance, contact Corbin Russwin at 888-607-5703 or www.corbinrusswin.com

Corbin Russwin 744F688 Thermal Pin for ED5000 Series ED5470B, ED5860B Wide Stile CVR, SVR M55 Option Installatio…_FM547 image

For Horizontal Installation Between Door Leafs: (Continued)

  • 3. Install thermal pin as follows:
    • METAL DOORS: First insert sleeve into door then insert pin. Use a wood block as spacer, gently tap pin into door until fl ush with edge.
    • WOOD DOORS: First insert sleeve into pin, then insert into door. Use a wood block as spacer, gently tap combined pin and sleeve into door until fl ush with edge. Rubber Mallet
  • 4. Install cap plug.

Horizontal Installation

Corbin Russwin 744F688 Thermal Pin for ED5000 Series ED5470B, ED5860B Wide Stile CVR, SVR M55 Option Installatio…_FM547 image

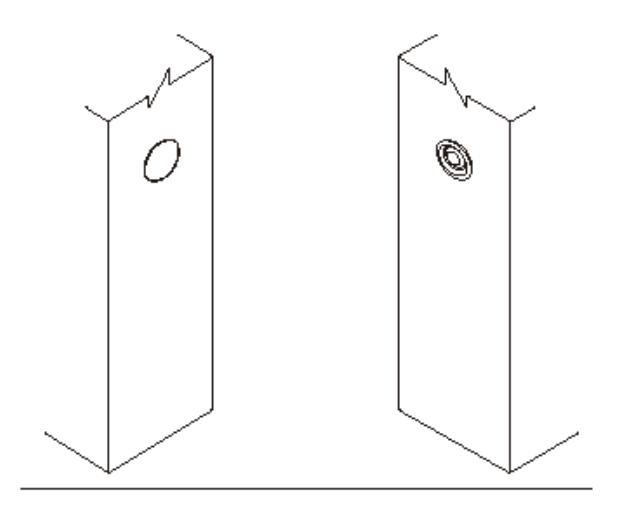

Complete Installation

Corbin Russwin 744F688 Thermal Pin for ED5000 Series ED5470B, ED5860B Wide Stile CVR, SVR M55 Option Installatio…_FM547 image
