Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. For door reinforcement see template T30800.
  • 6. Prepare mounting holes when installing trim.
  • 7. Provide adequate internal support to prevent door deformation after trim is bolted to the device.
  • 8. Dimensions given about a centerline are symmetrical.

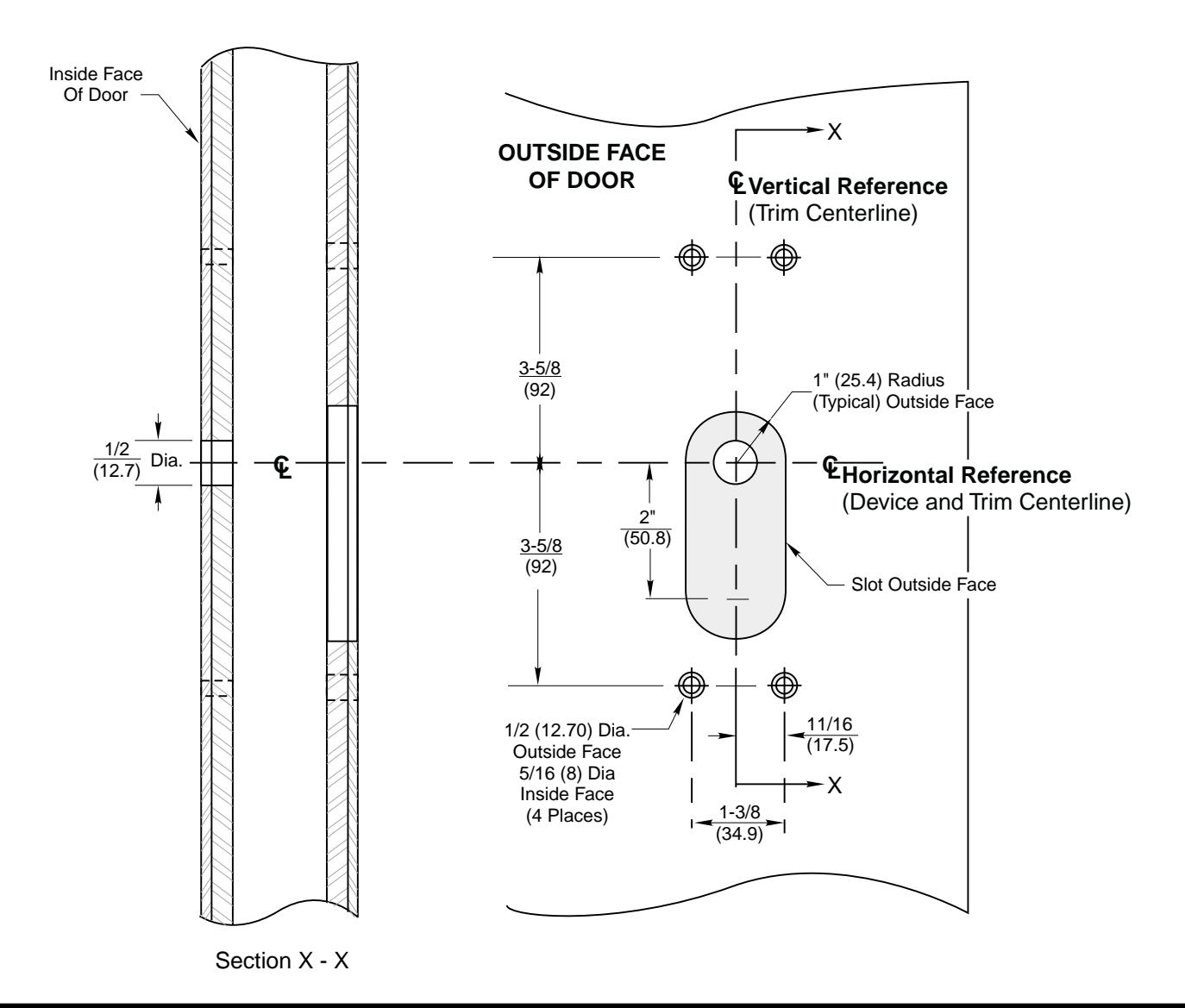

Corbin Russwin 710 and 910 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, SecureBolt, CVR, SVR Metal Door Templ…_T30820 imag

Note: Lever and knob prefix does not affect door prep.

Corbin Russwin 710 and 910 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, SecureBolt, CVR, SVR Metal Door Templ…_T30820 imag

710 & 910 Series Trim

Metal Door Preparation With ED5200, ED5400 or ED5800 Series Rim, SecureBolt, and Vertical Rod Exit Devices

Corbin Russwin 710 and 910 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, SecureBolt, CVR, SVR Metal Door Templ…_T30820 imag

www.corbinrusswin.com

DO NOT SCALE DRAWING SUPERSEDES T30820-1

TEMPLATE NUMBER DATE T30820-2 10-01
