Corbin Russwin 510ET, 555ET, 557ET, and 550ET Trim for Wide Stile Rim, CVR, SVR Metal Door Template

Original Source Document Full PDF Version

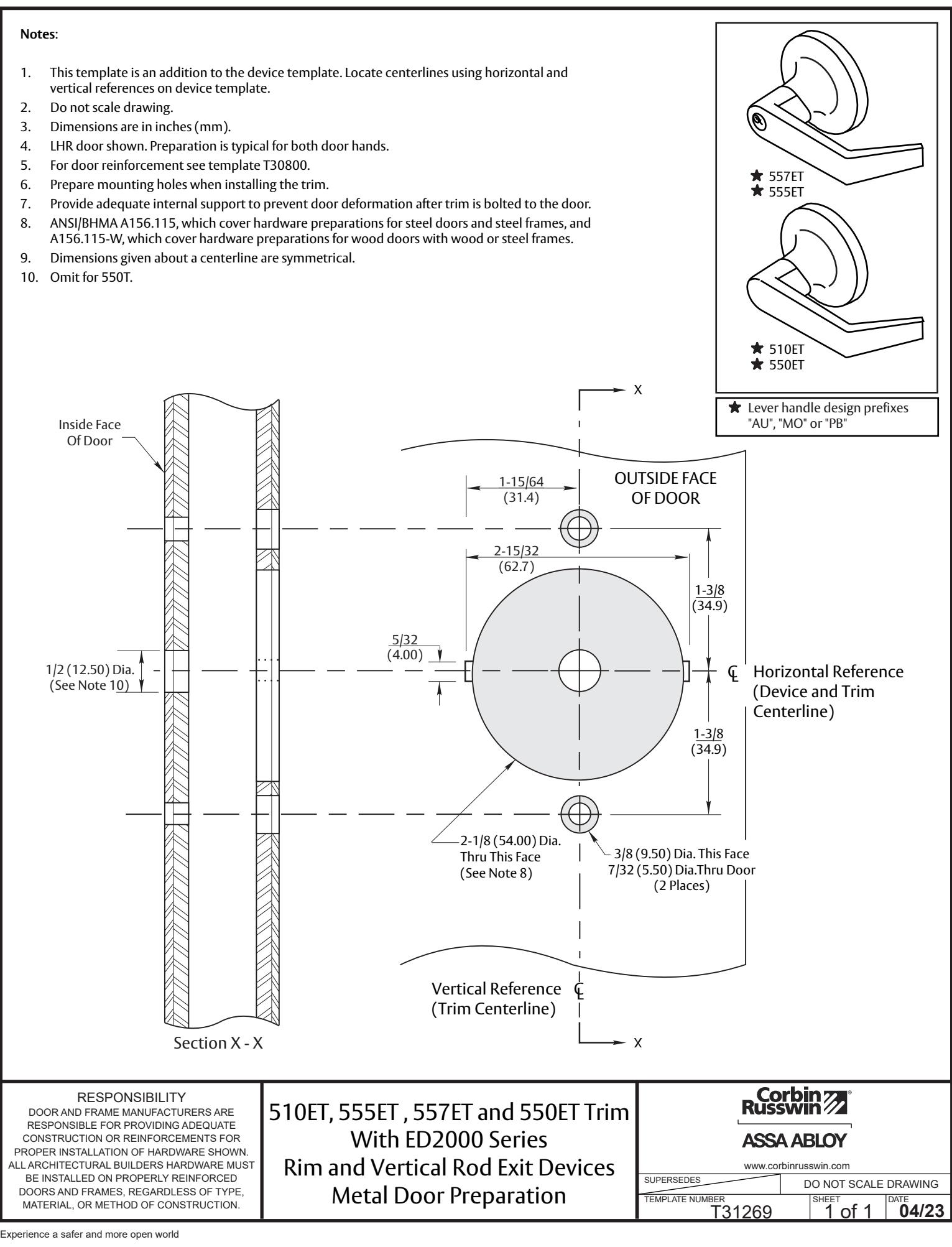

Corbin Russwin 510ET, 555ET, 557ET, and 550ET Trim for Wide Stile Rim, CVR, SVR Metal Door Template_T31269 diagram on page 1
