  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. Prepare mounting holes when installing trim.
  • 6. Provide adequate structural support to maintain door integrity during operation.

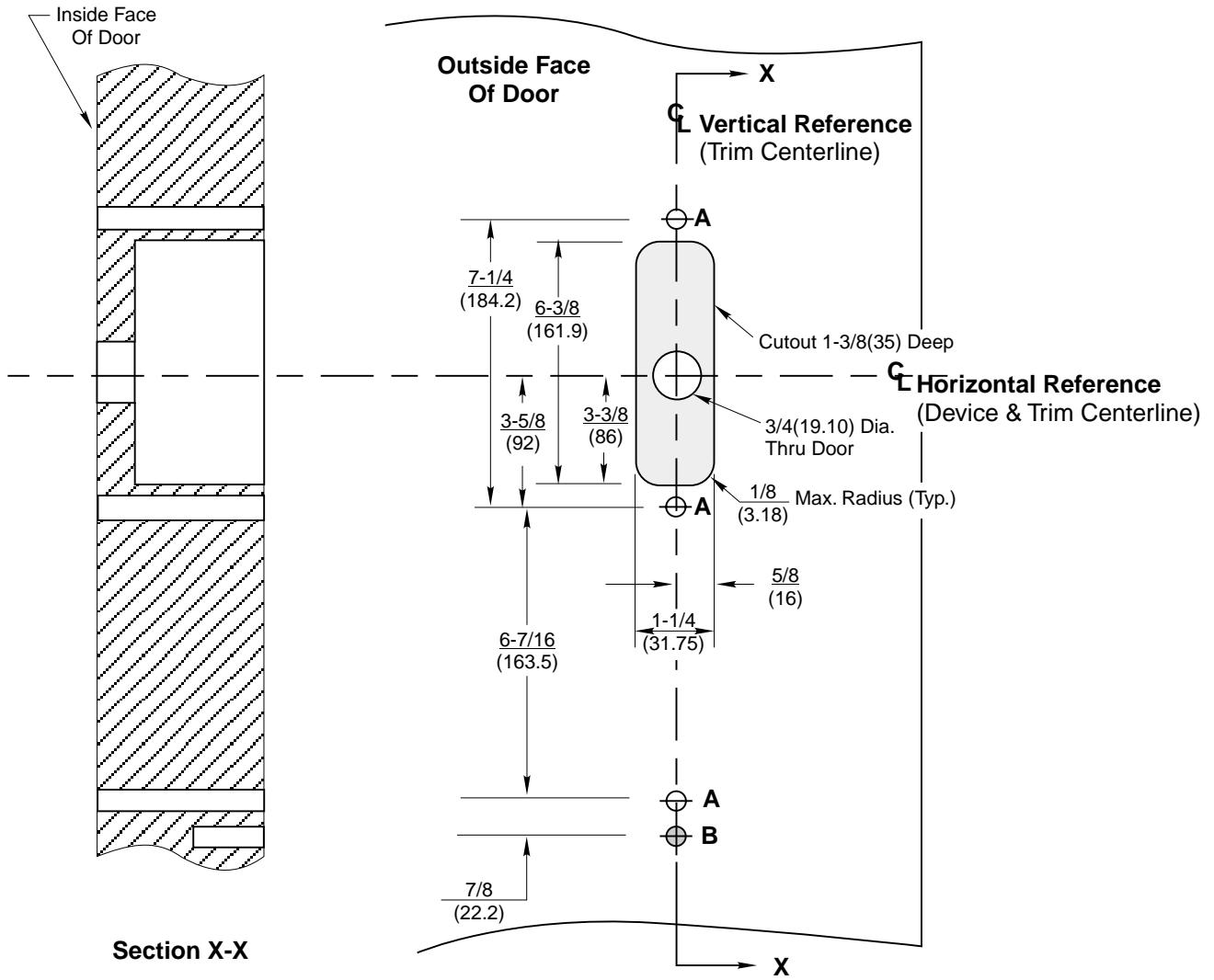

Hole Specification
A 1/2(12.50) Dia. Thru Door
B 3/8(9.50) Dia. X 3/4(19) Deep

Corbin Russwin 1410, 1455, and 1459 Narrow Escutcheon Trim for ED4200, ED4400, ED4800 Narrow Stile Rim, CVR, SVR…_T30851 imag

Corbin Russwin 1410, 1455, and 1459 Narrow Escutcheon Trim for ED4200, ED4400, ED4800 Narrow Stile Rim, CVR, SVR…_T30851 diag

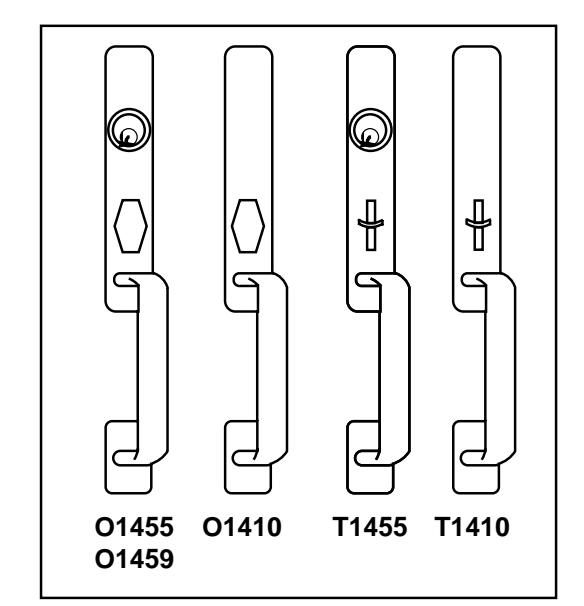

1410, 1455 & 1459 Series Narrow Escutcheon Trim Wood or Composite Door Preparation With ED4200, ED4400 or ED4800 Series Rim and Vertical Rod Exit Devices

®

www.corbinrusswin.com

DO NOT SCALE DRAWING SUPERSEDES TEMPLATE NUMBER DATE T30851-1 9-99 T30851
