Notes:

1

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. For door reinforcement see template T30800.
  • 6. Prepare mounting holes when installing trim.
  • 7. Provide adequate internal support to prevent door deformation after trim is bolted to the device.

Hole Specification
A 3/8(9.50) Dia. Outside Face 5/16(8) Dia. Inside Face (3 Places)
B 3/8(9.50) Dia. Outside Face

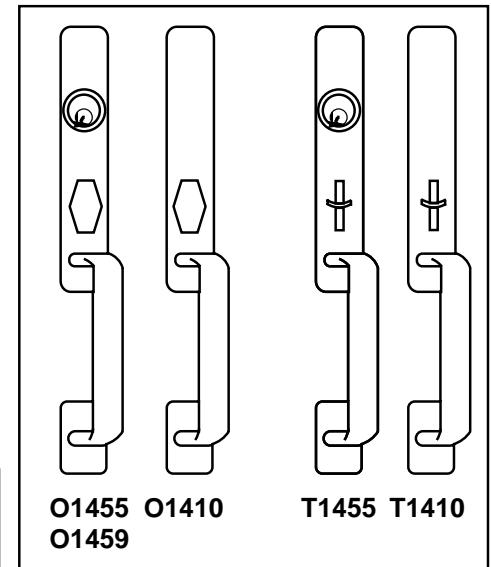

Corbin Russwin 1410, 1455, and 1449 Narrow Escutcheon Trim for ED4200, ED4400, ED4800 Narrow Stile Rim, CVR, SVR…_T30815 imag

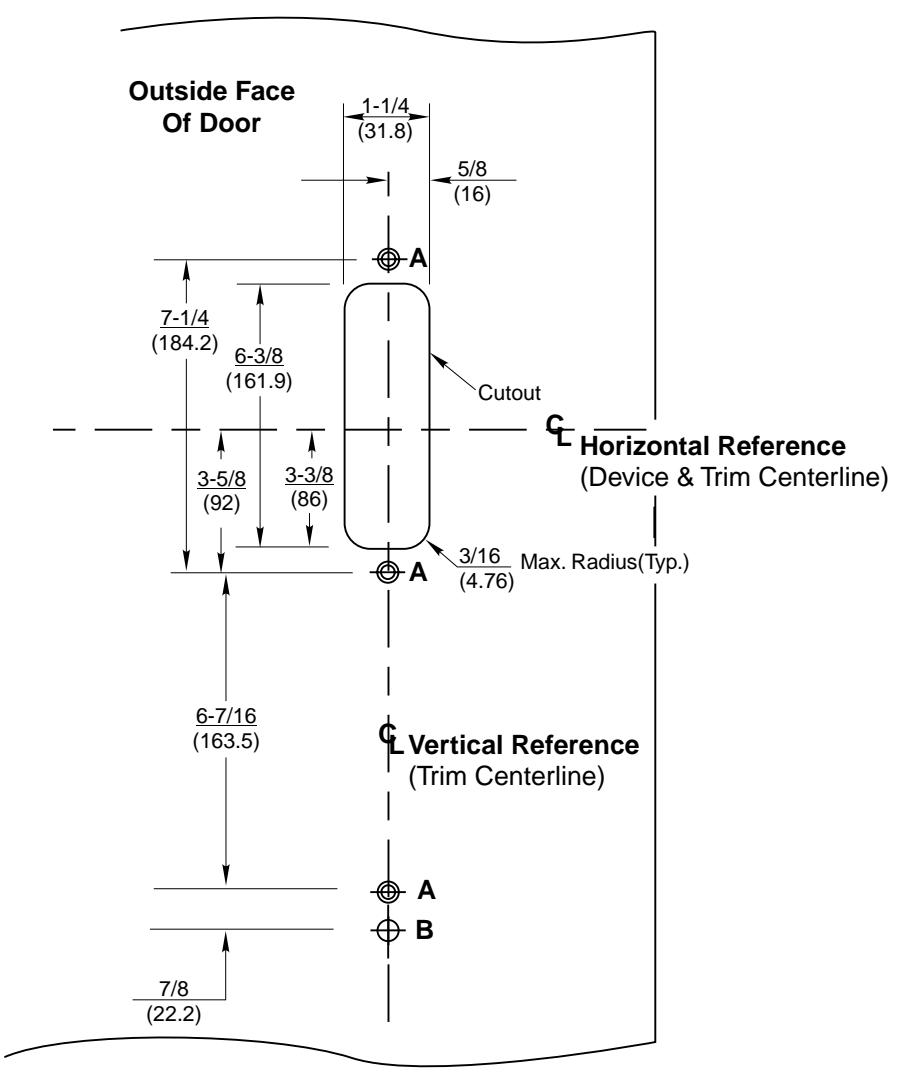

Corbin Russwin 1410, 1455, and 1449 Narrow Escutcheon Trim for ED4200, ED4400, ED4800 Narrow Stile Rim, CVR, SVR…_T30815 diag

1410, 1455 & 1449 Series Narrow Escutcheon Trim Metal Door Preparation With ED4200, ED4400, or ED4800 Series Rim and Vertical Rod Exit Devices
